P0604

P0604 - INTERNAL CONTROL MODULE MEMORY CHECK SUM ERROR

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM
- Engine does not start.
- Engine stalls.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

Wiring Diagram:

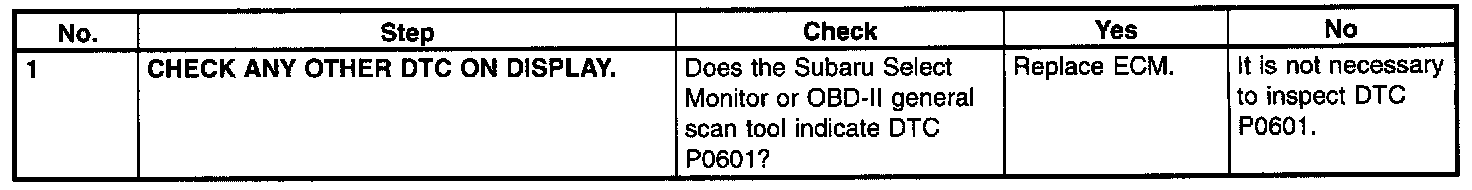

Step 1:

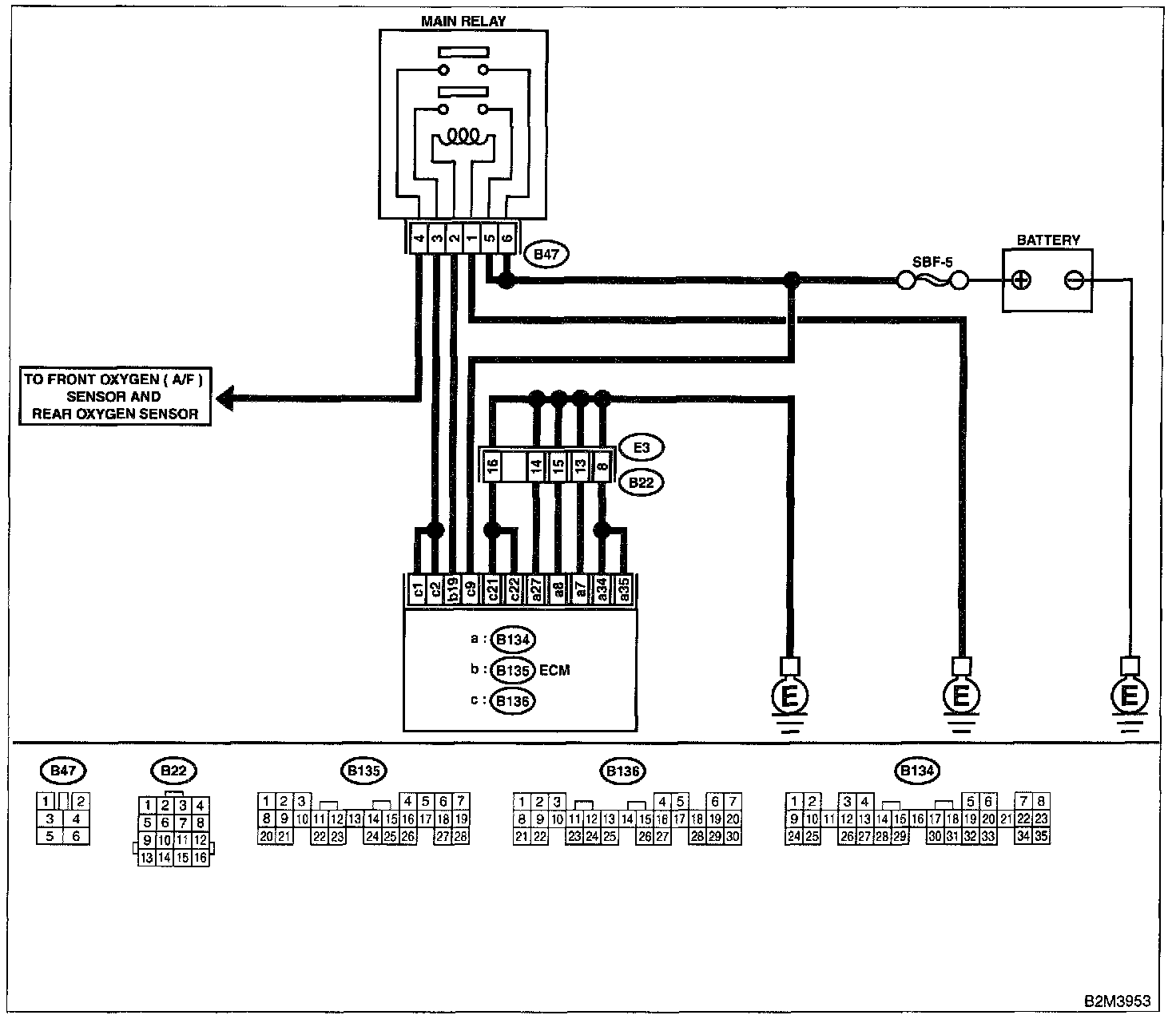

WIRING DIAGRAM
