P0505

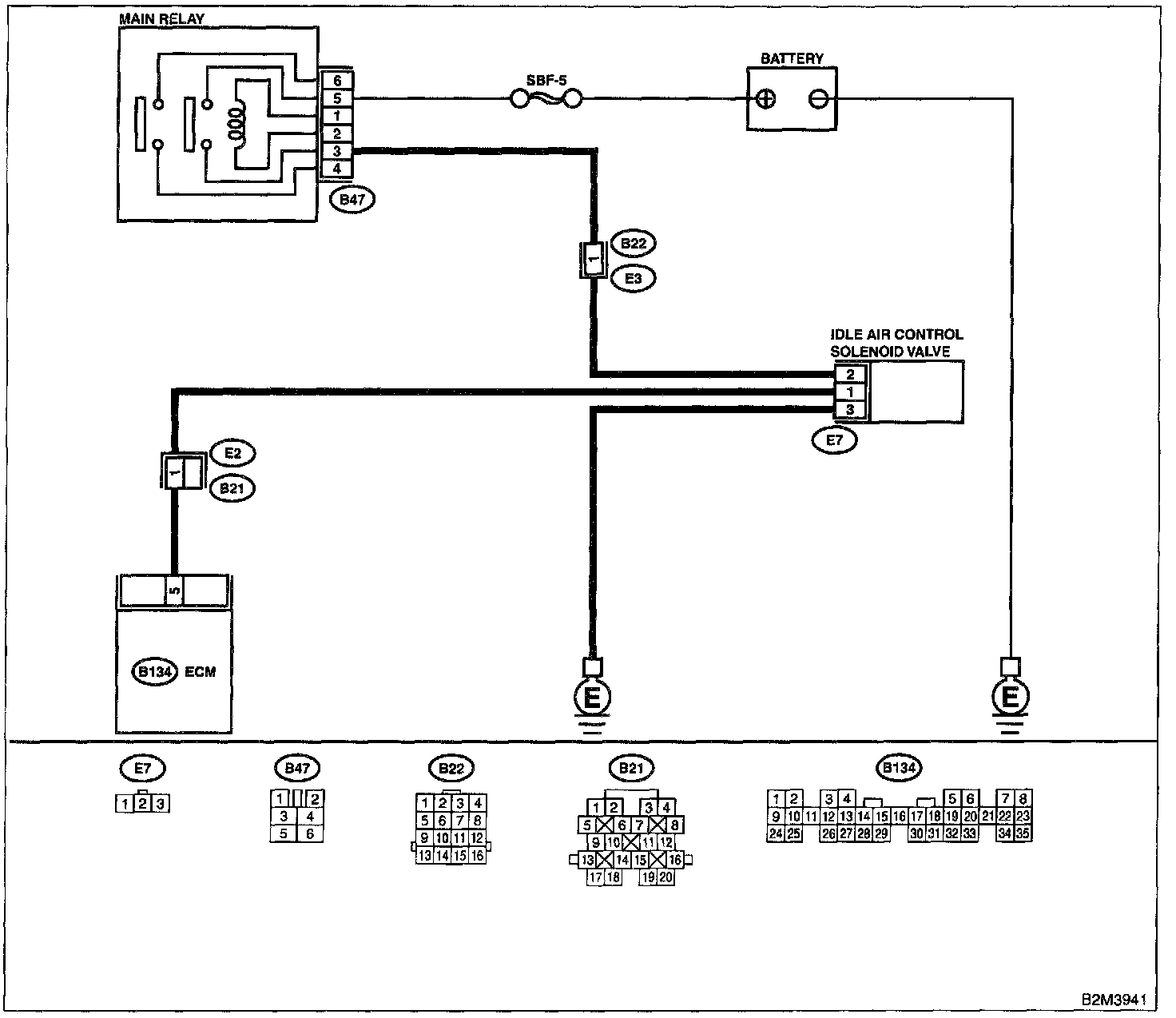

P0505 - IDLE CONTROL SYSTEM CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.
- Engine Breathing

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .
