P0443

P0443 - EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM
- Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

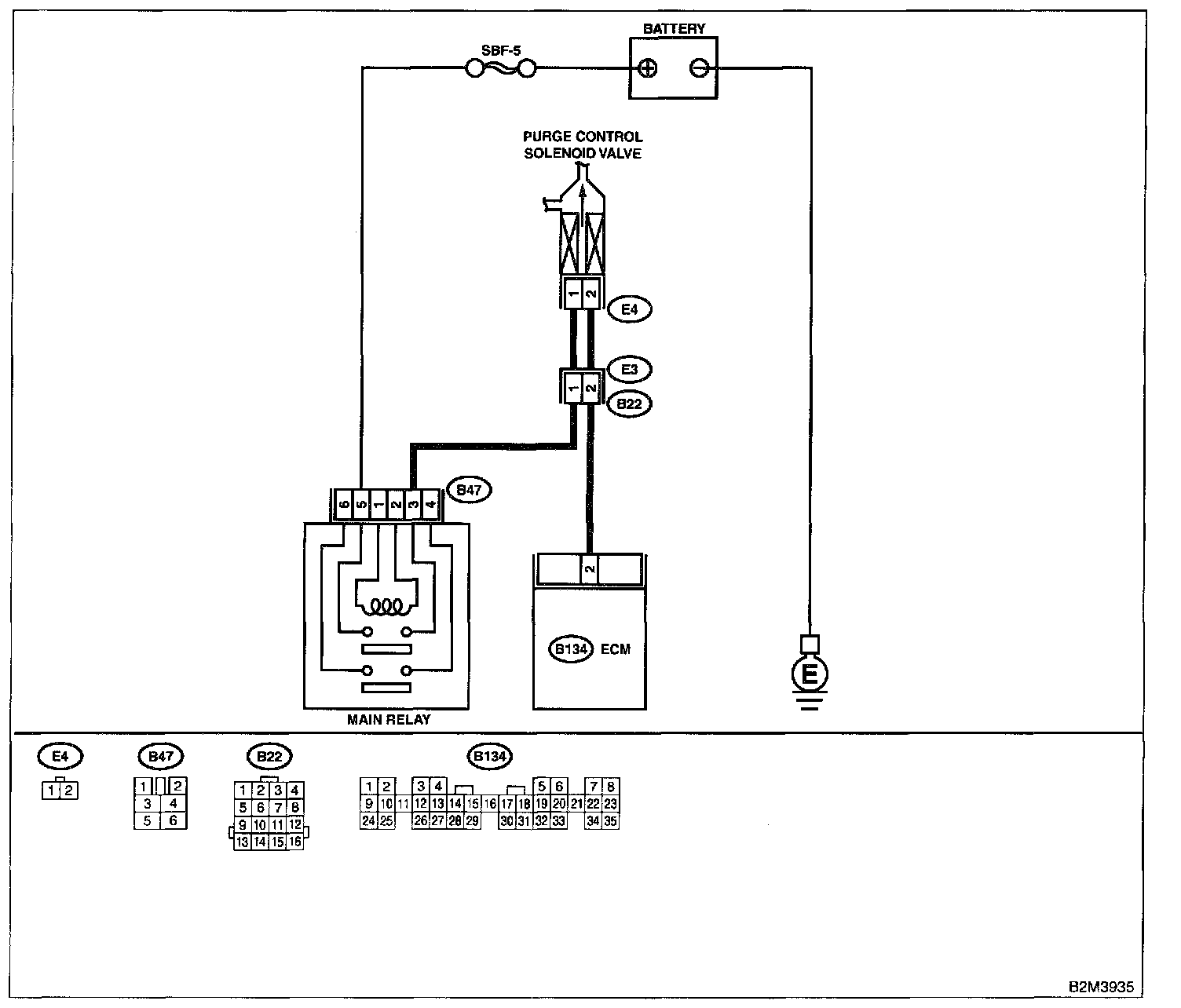

Wiring Diagram:

Step 1 - 5:

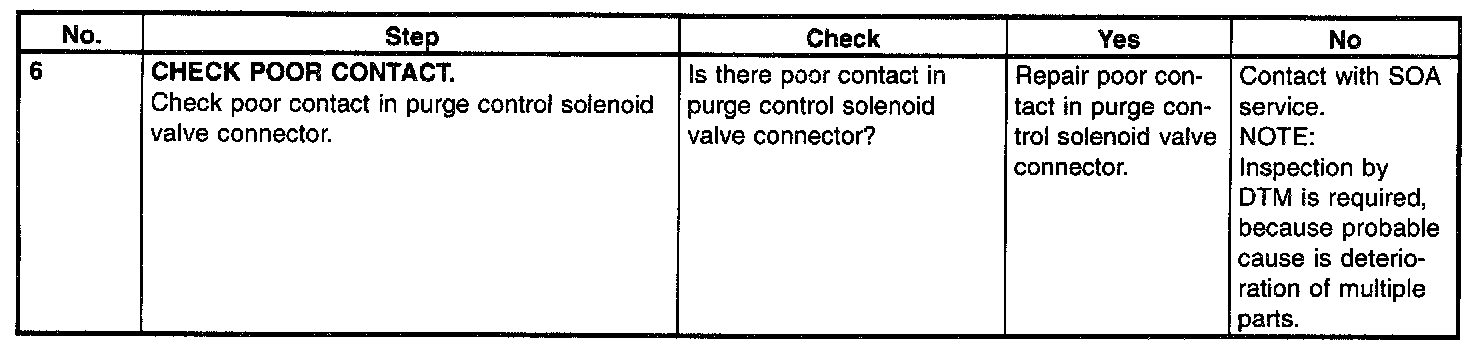

Step 6:

WIRING DIAGRAM
