P0440

P0440 - EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTION

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM
- Gasoline smell
- There is a hole of more than 1.0 mm (0.04 in) dia. in evaporation system or fuel tank.

CAUTION: Alter repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

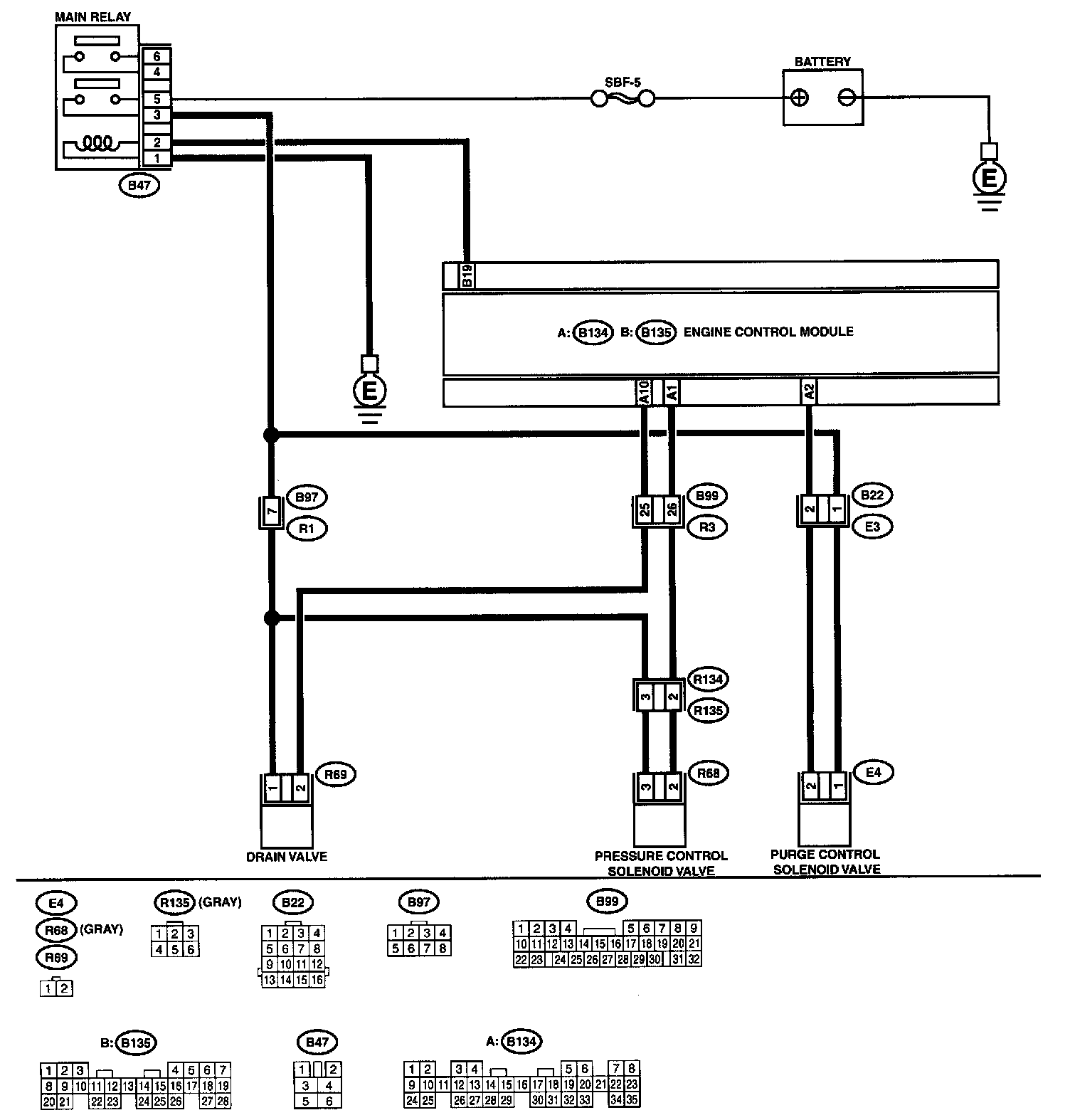

Wiring Diagram:

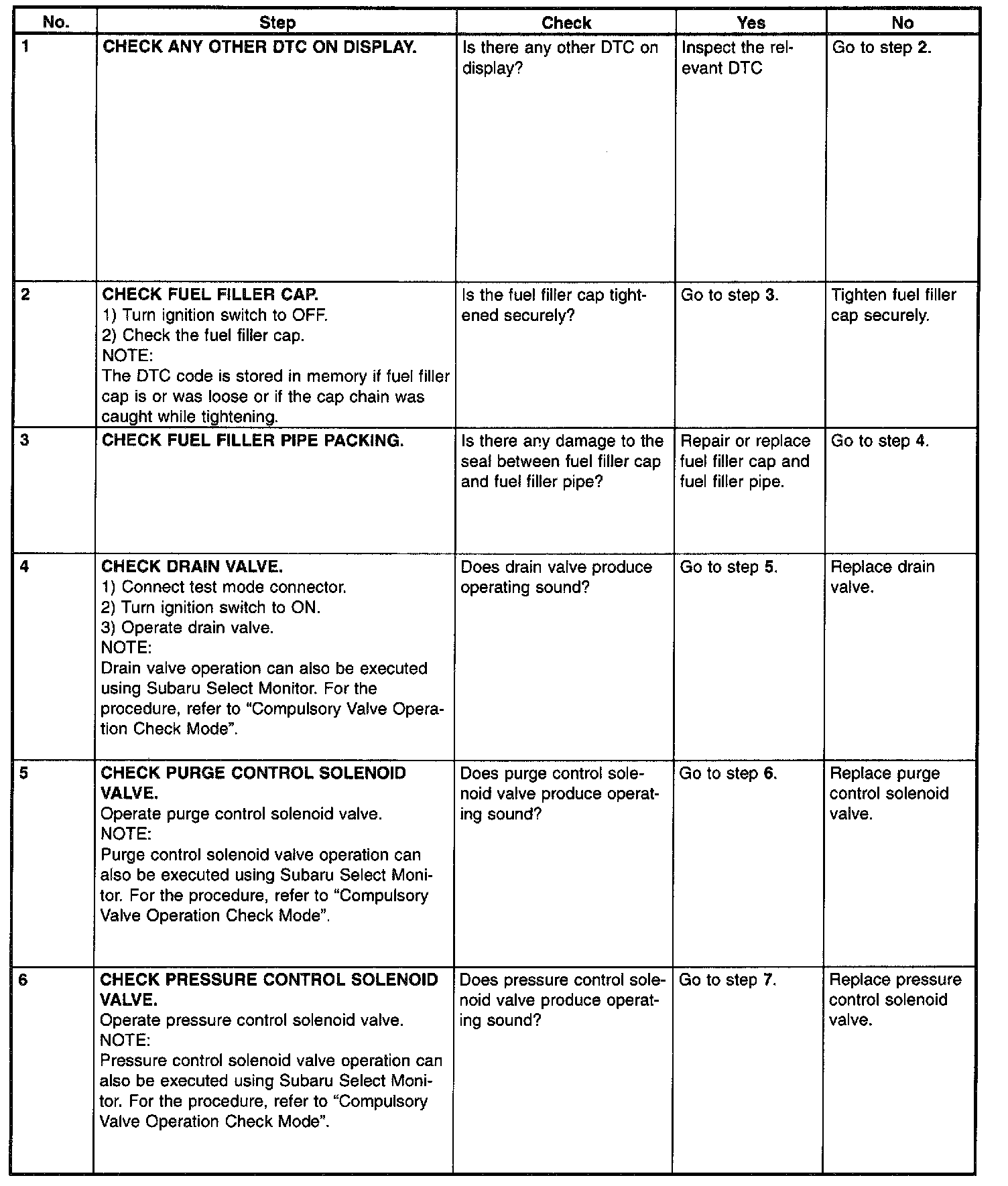

Step 1 - 6:

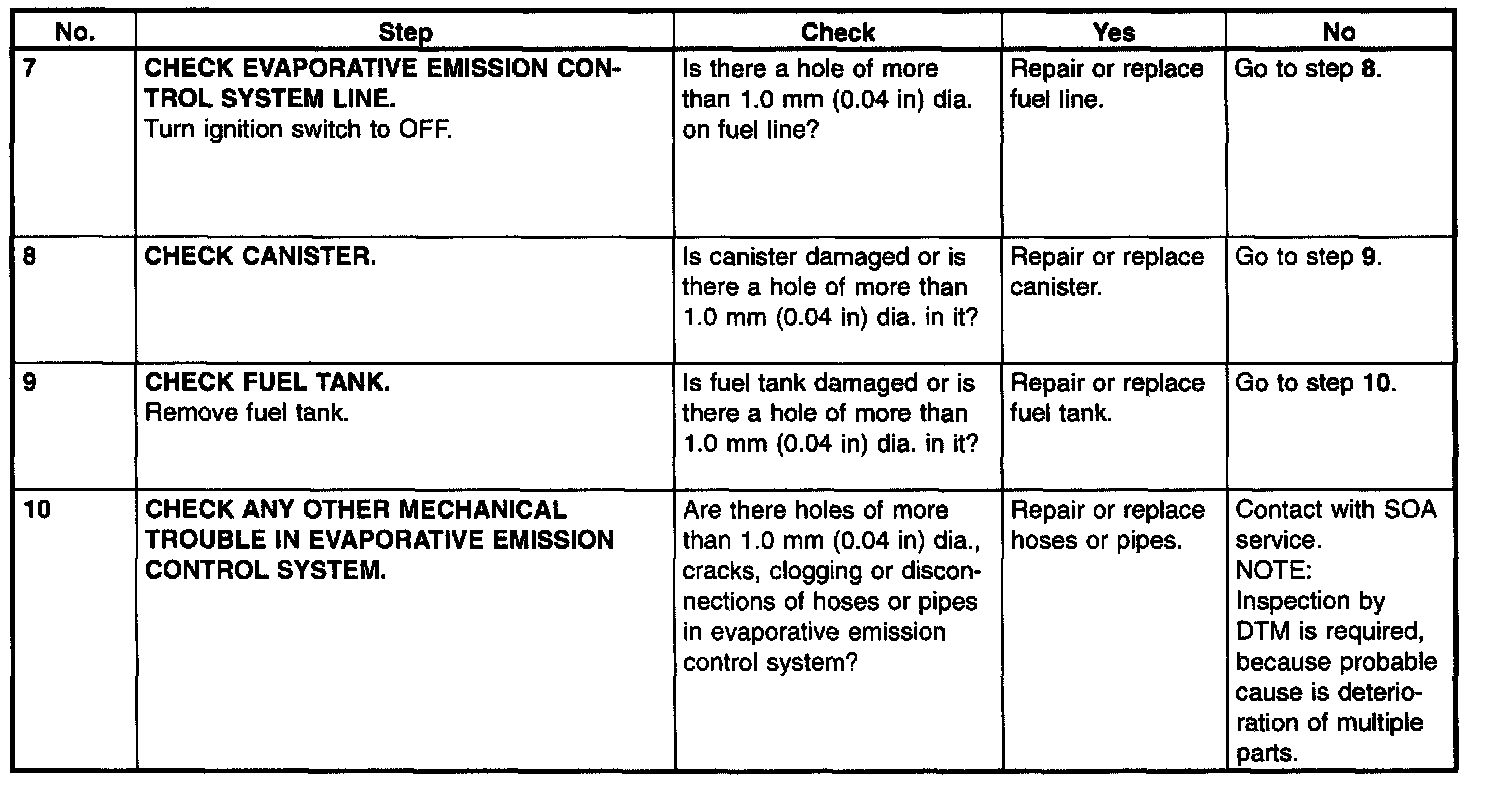

Step 7 - 10:

WIRING DIAGRAM
