P0328

P0328 - KNOCK SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Poor driving performance
- Knocking occurs.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

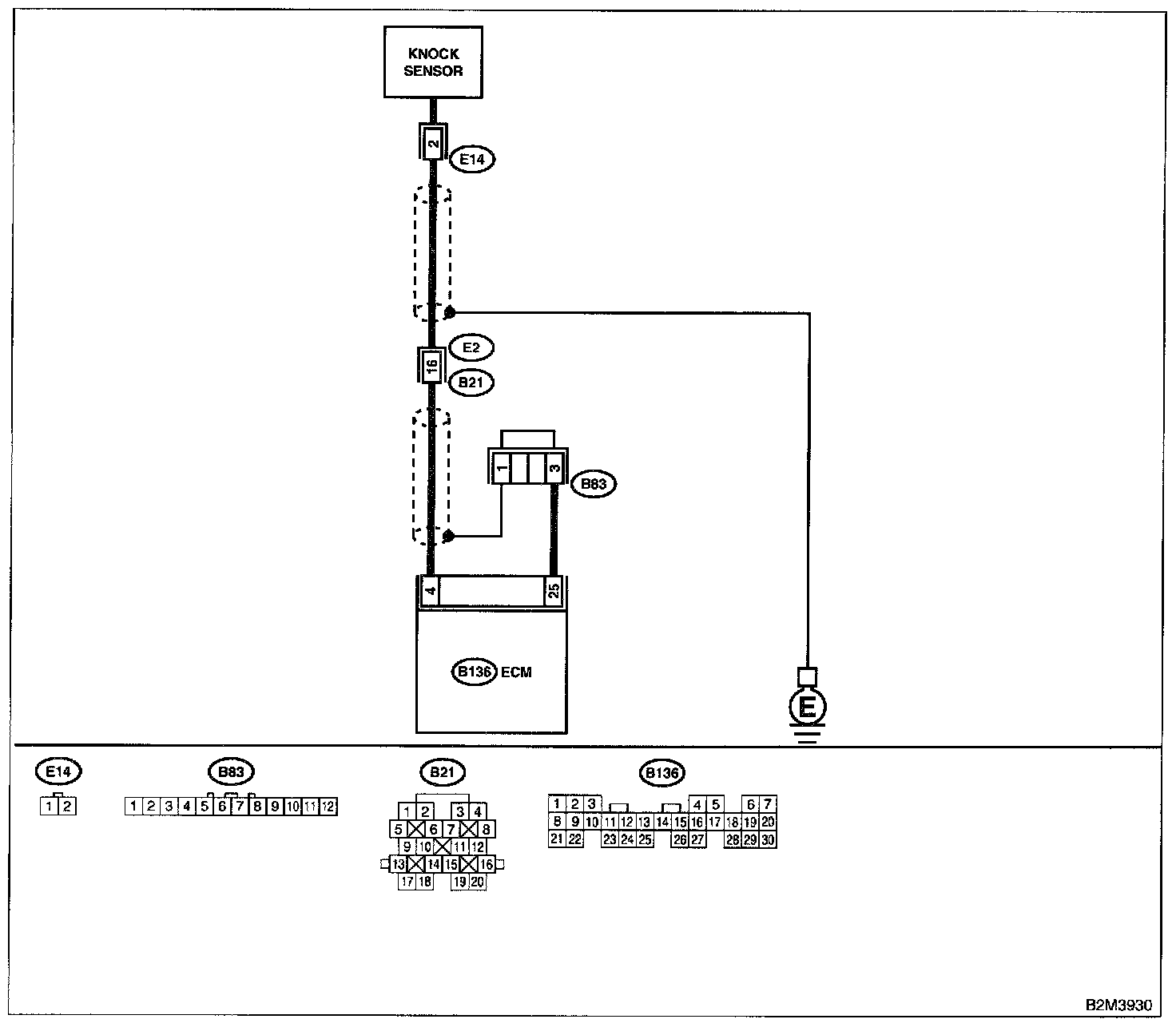

Wiring Diagram:

Step 1 - 3:

WIRING DIAGRAM
