P0325

P0325 - KNOCK SENSOR CIRCUIT MALFUNCTION

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Poor driving performance
- Knocking occurs.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

Wiring Diagram:

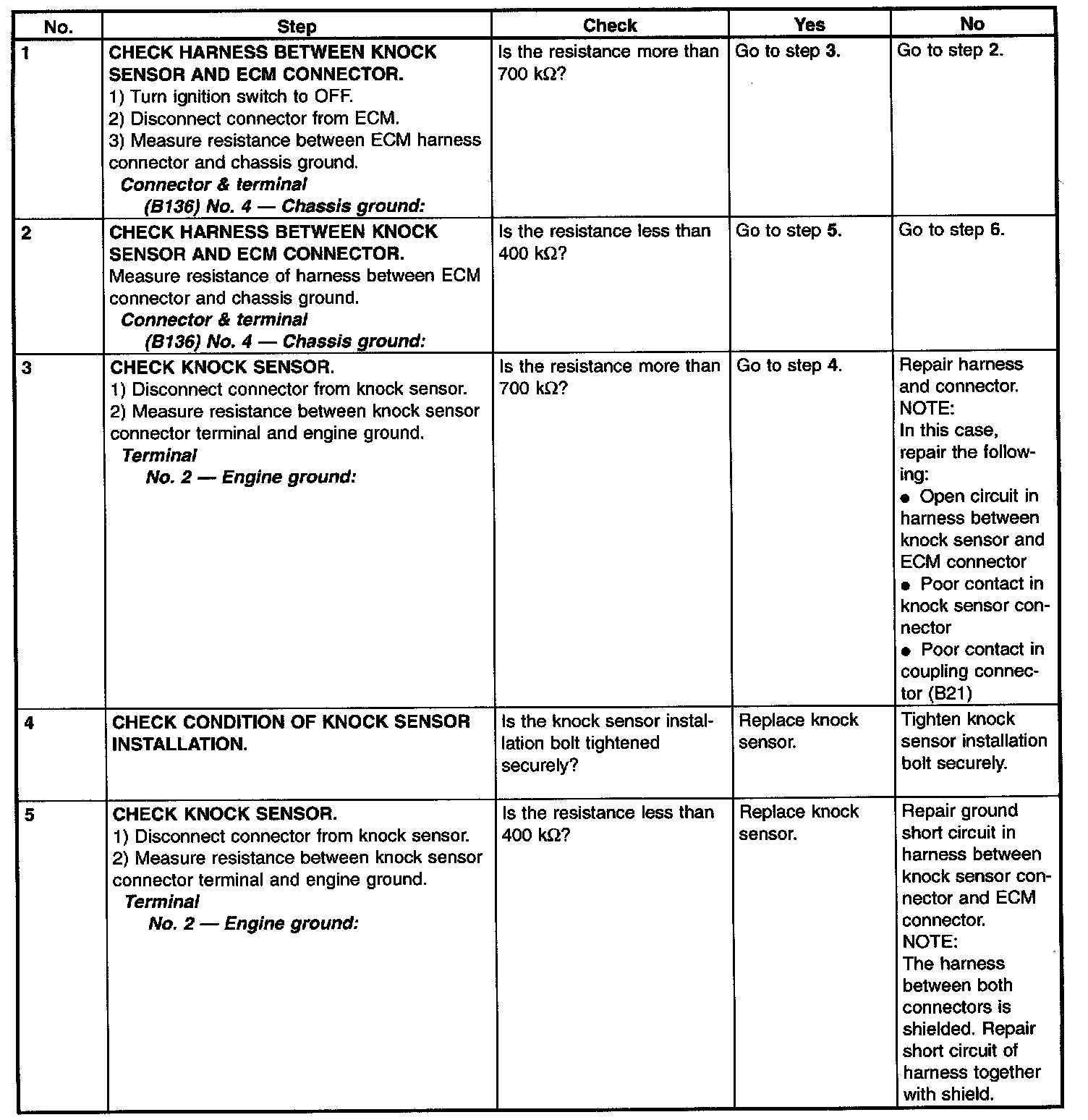

Step 1 - 5:

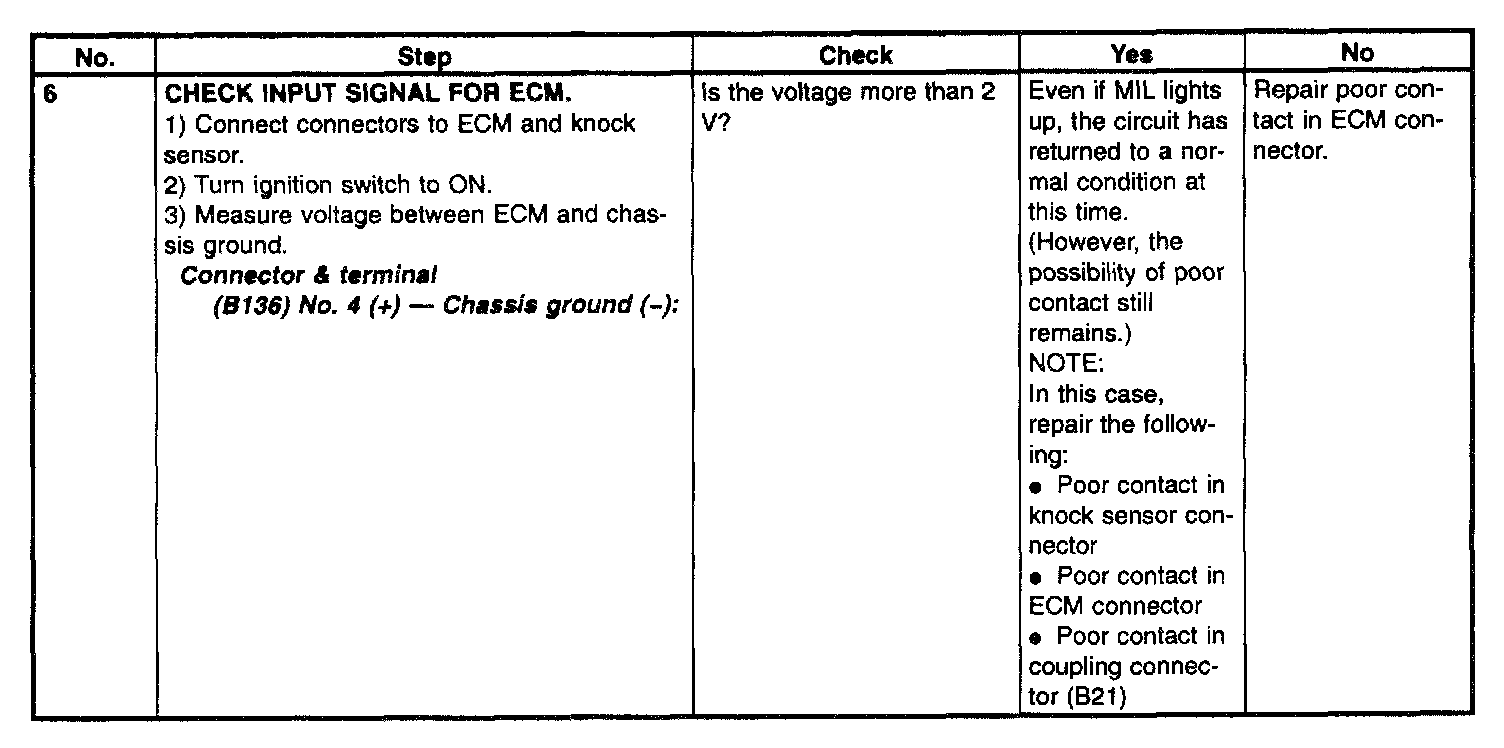

Step 6:

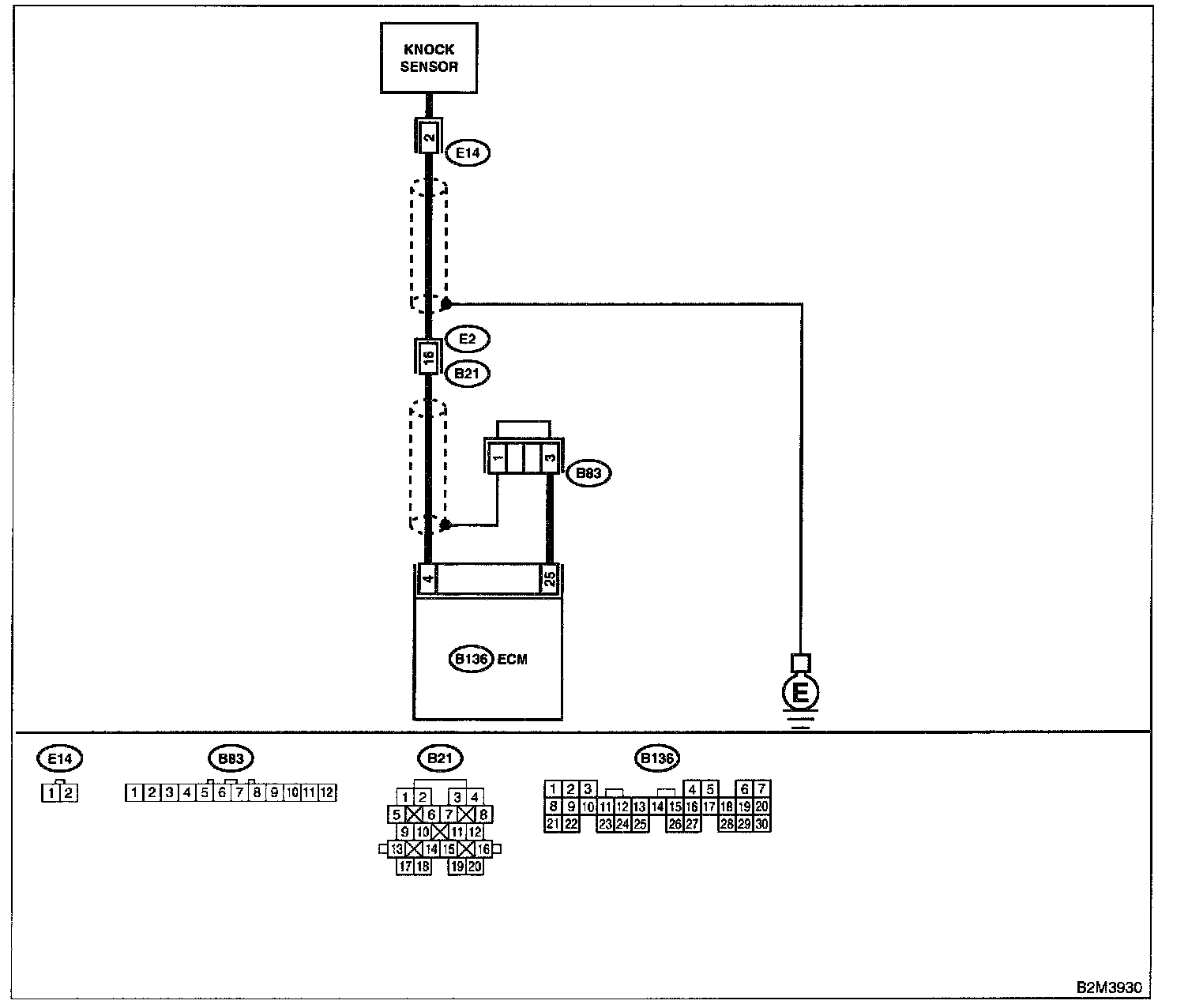

WIRING DIAGRAM
