A/T

P0304 - CYLINDER 4 MISFIRE DETECTED

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault
- Immediately at fault recognition (A misfire which could damage catalyst occurs.)

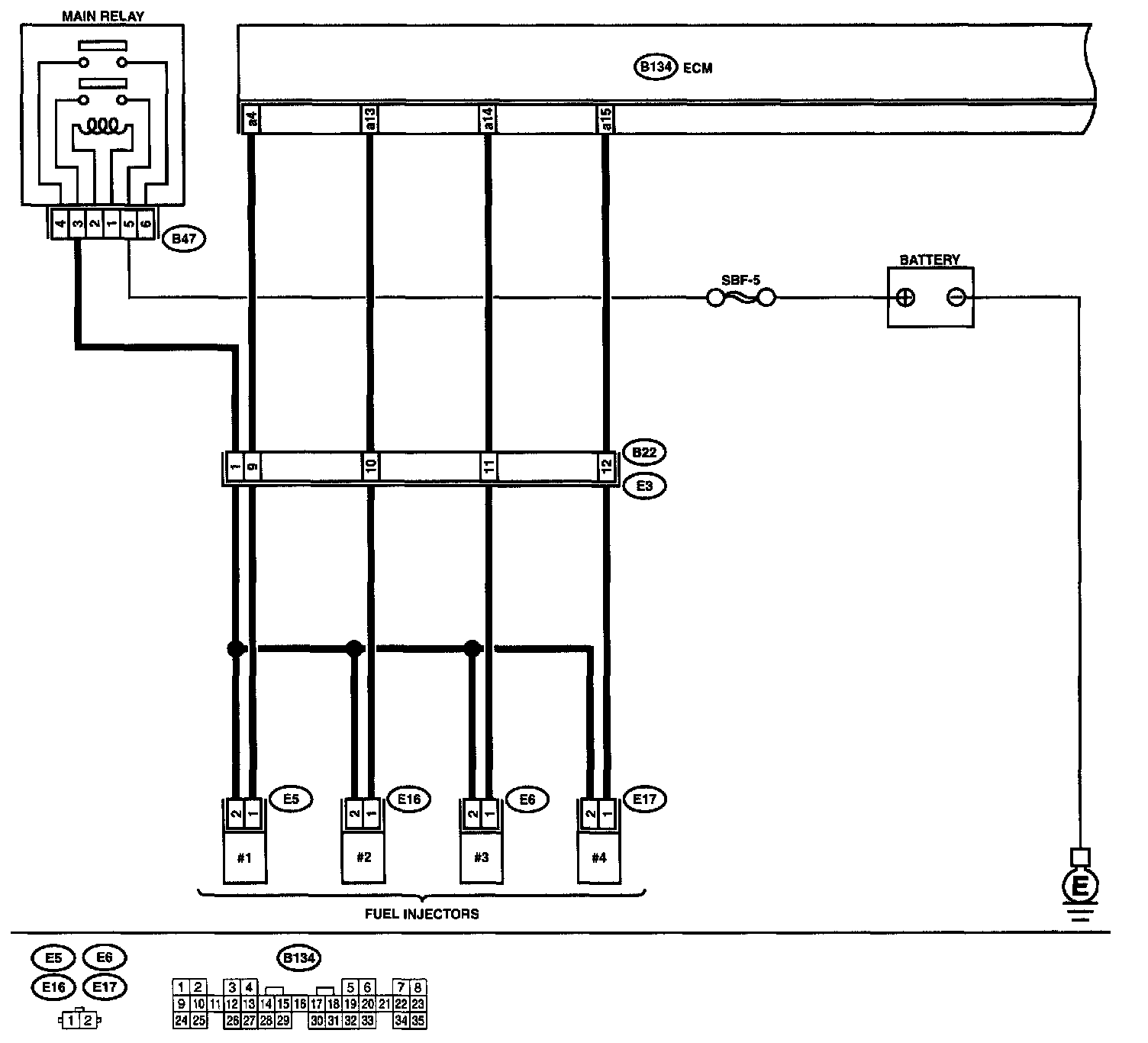

Wiring Diagram:

TROUBLE SYMPTOM
- Engine stalls.
- Erroneous idling
- Rough driving

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

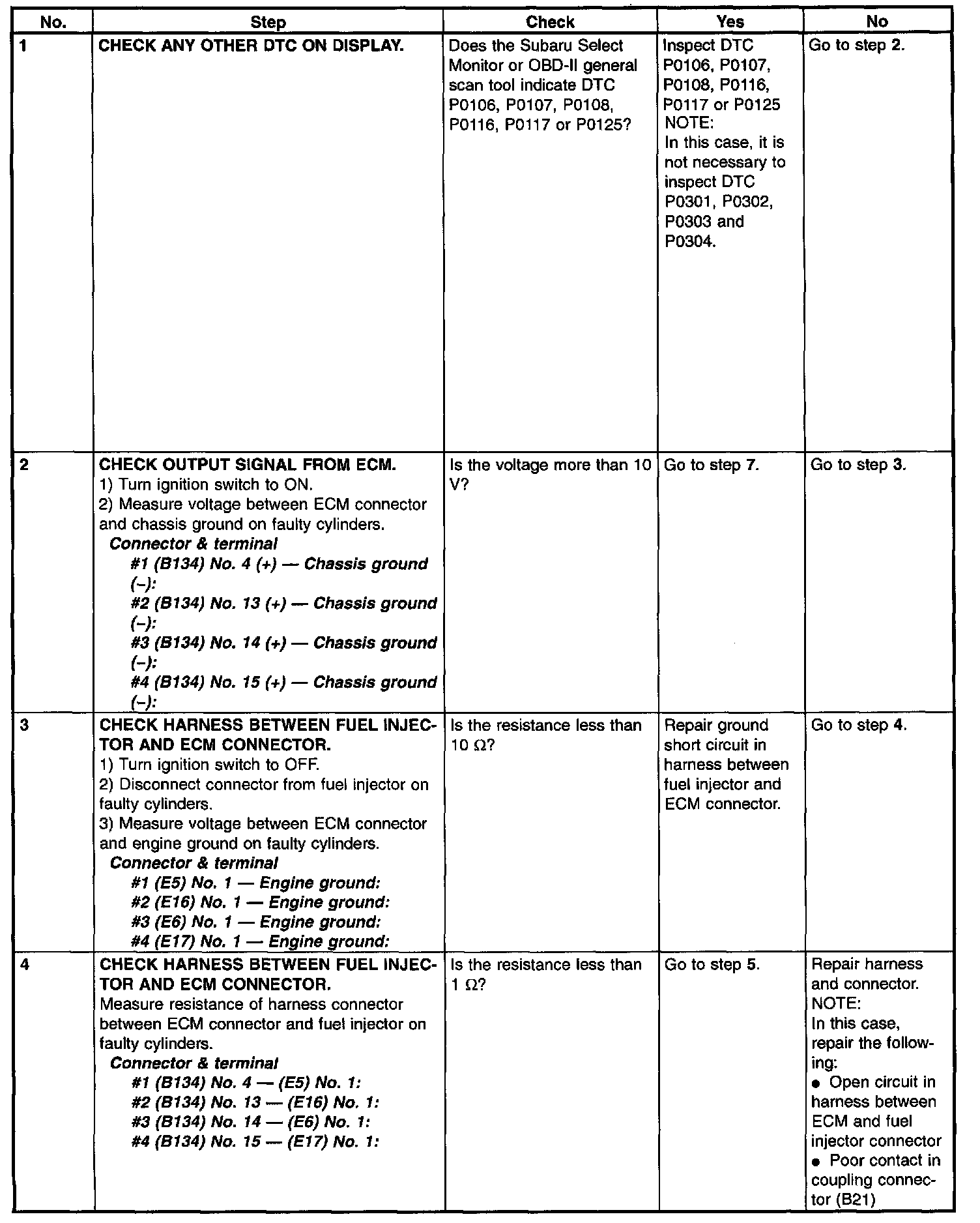

Step 1 - 4:

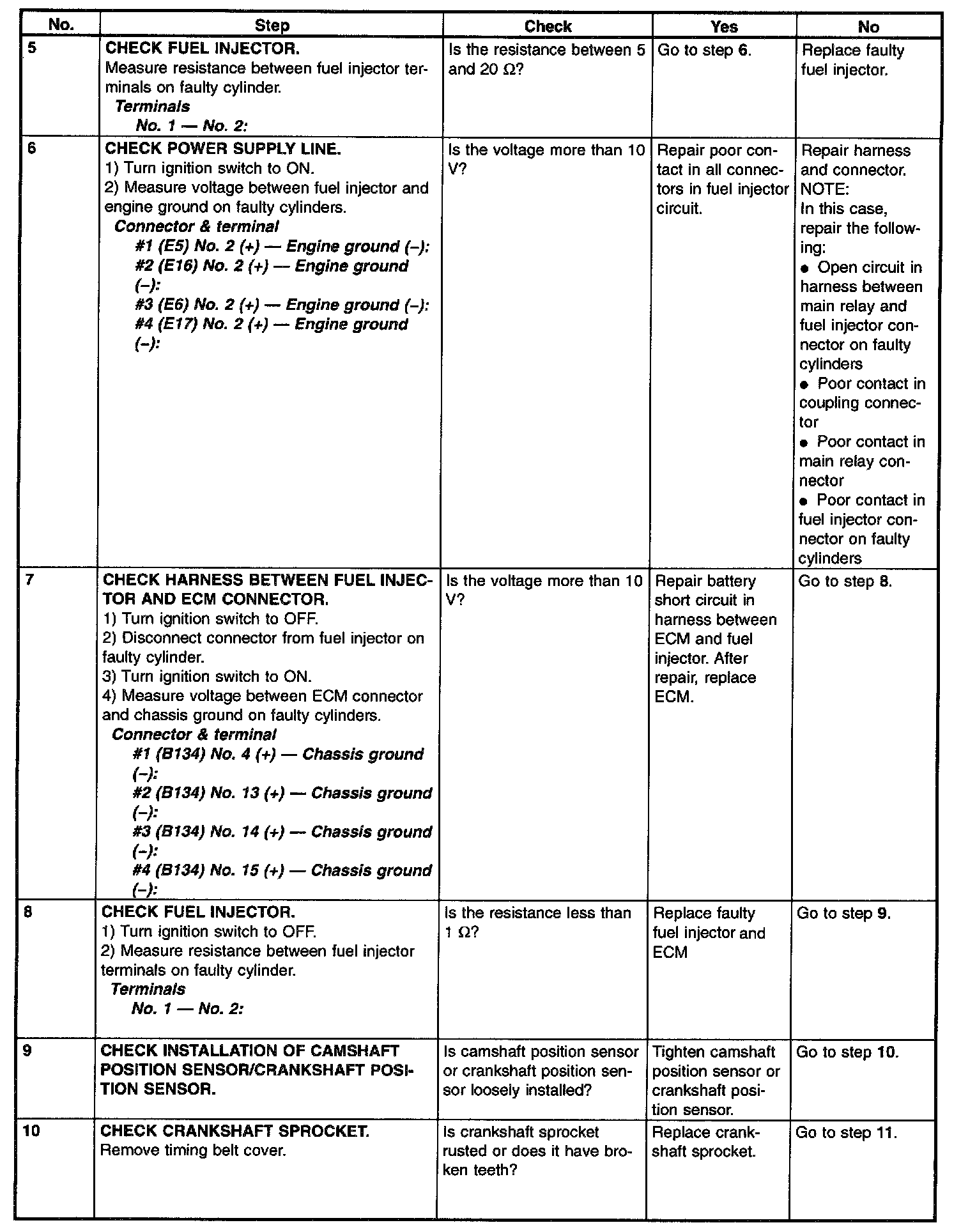

Step 5 - 10:

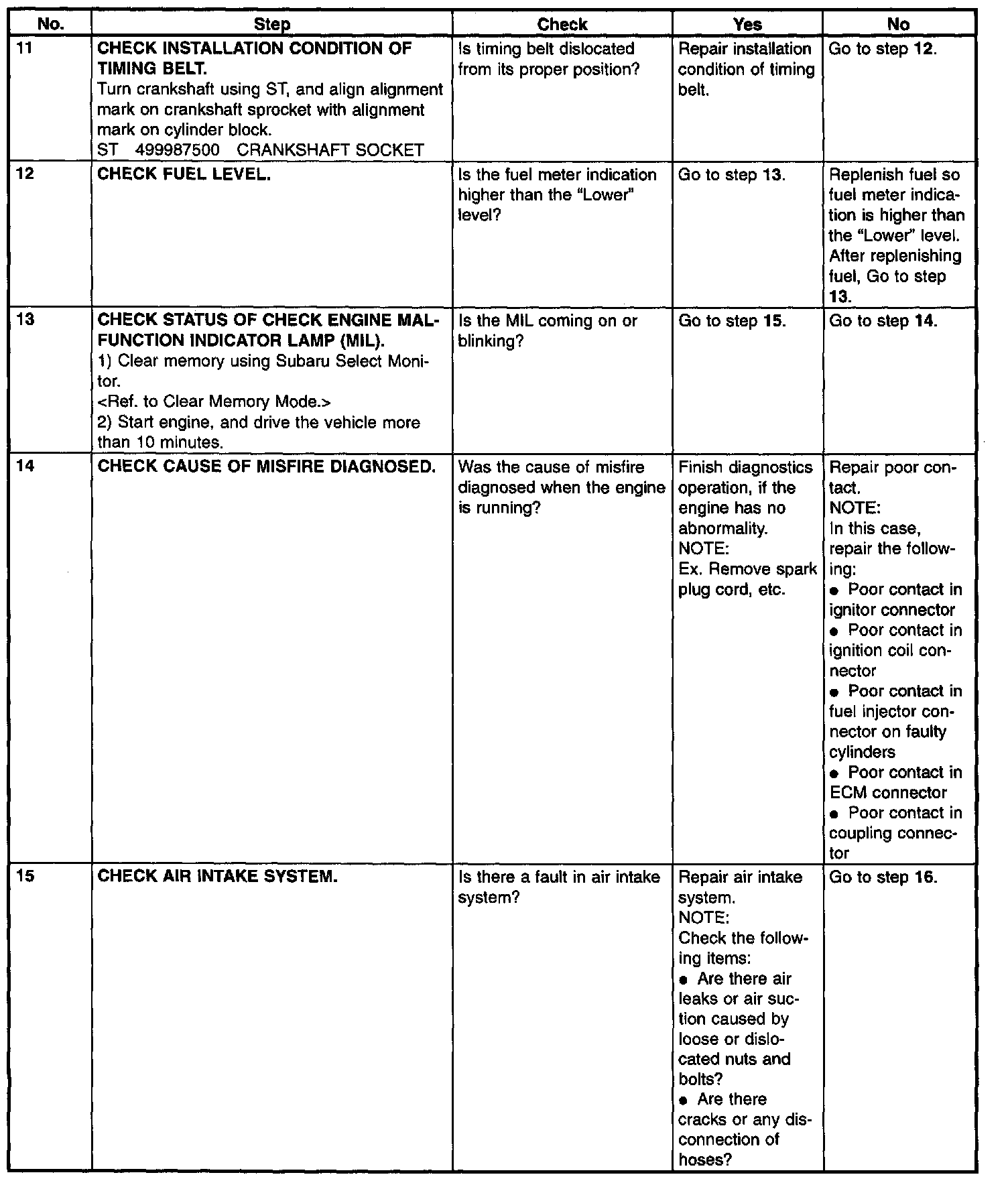

Step 11 - 15:

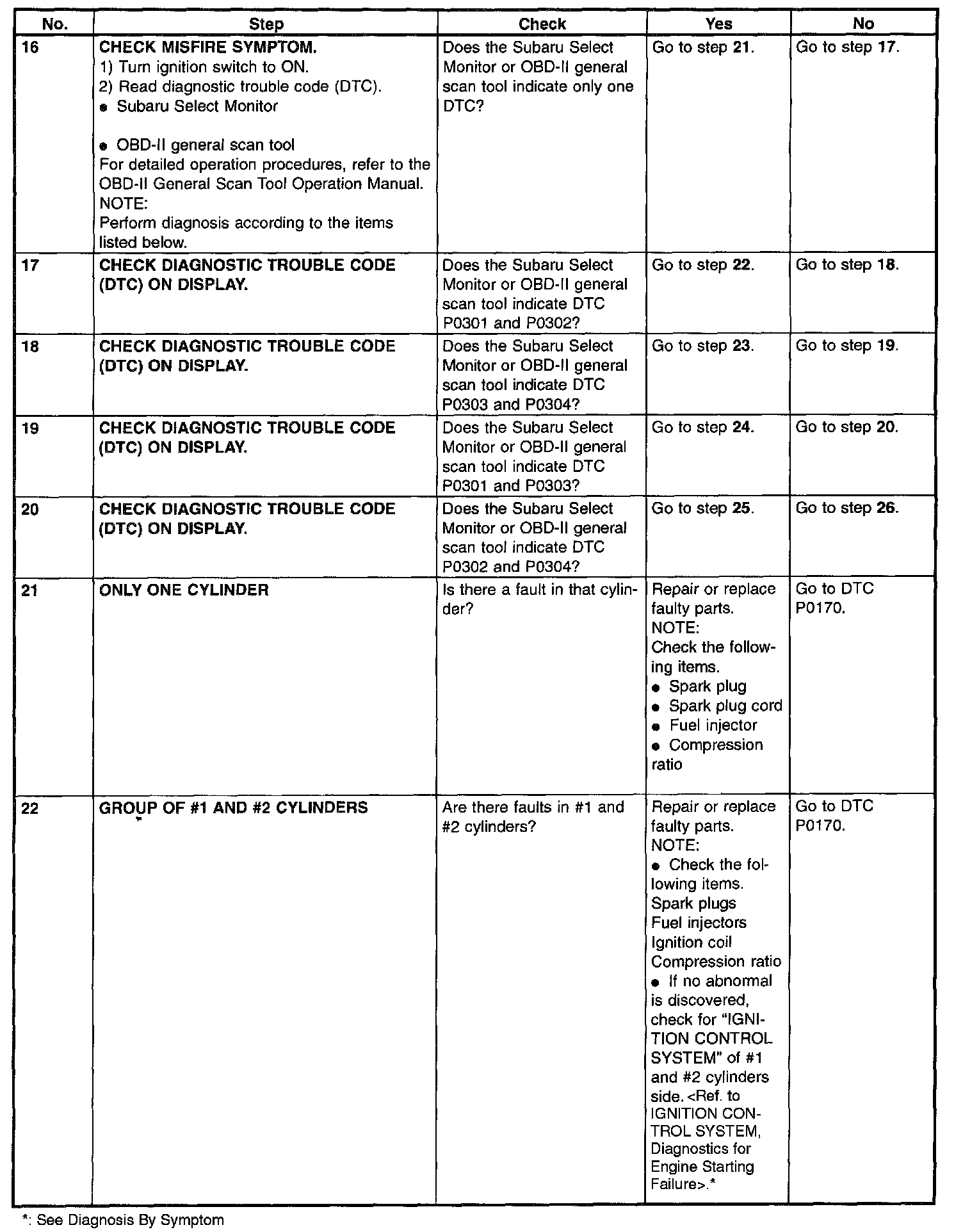

Step 16 - 22:

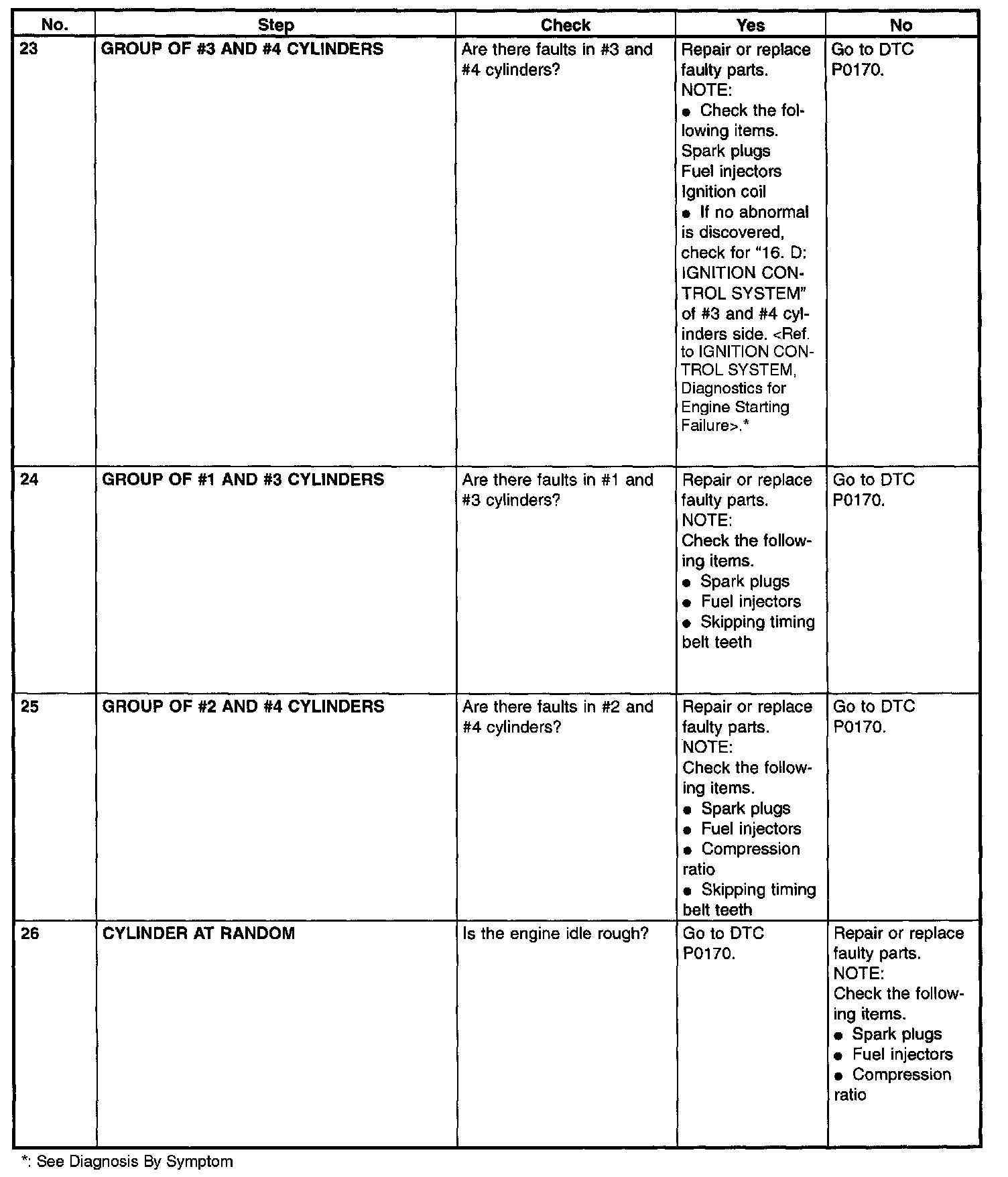

Step 23 - 26:

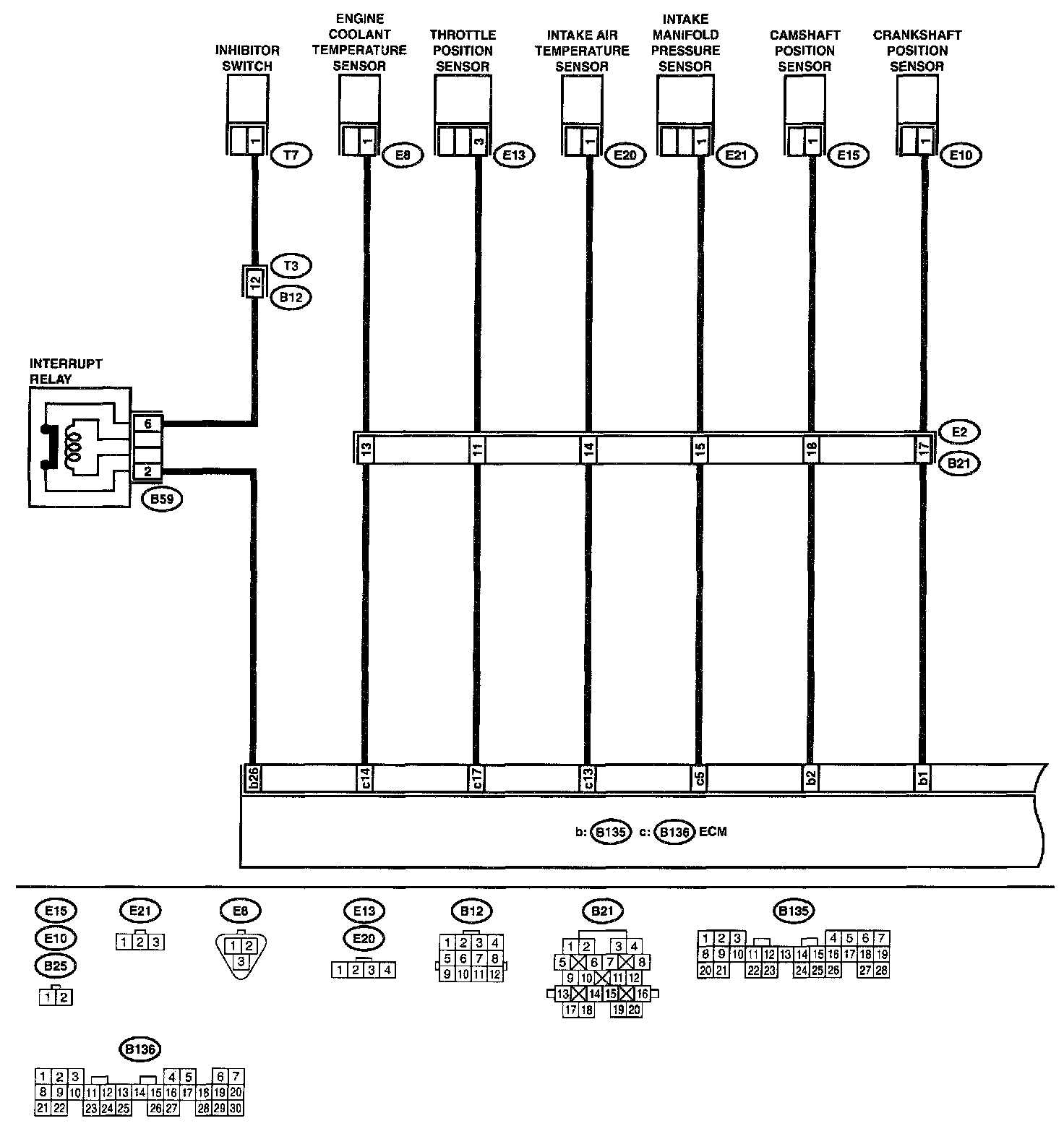

WIRING DIAGRAM
