P0170

P0170 - FUEL TRIM MALFUNCTION

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

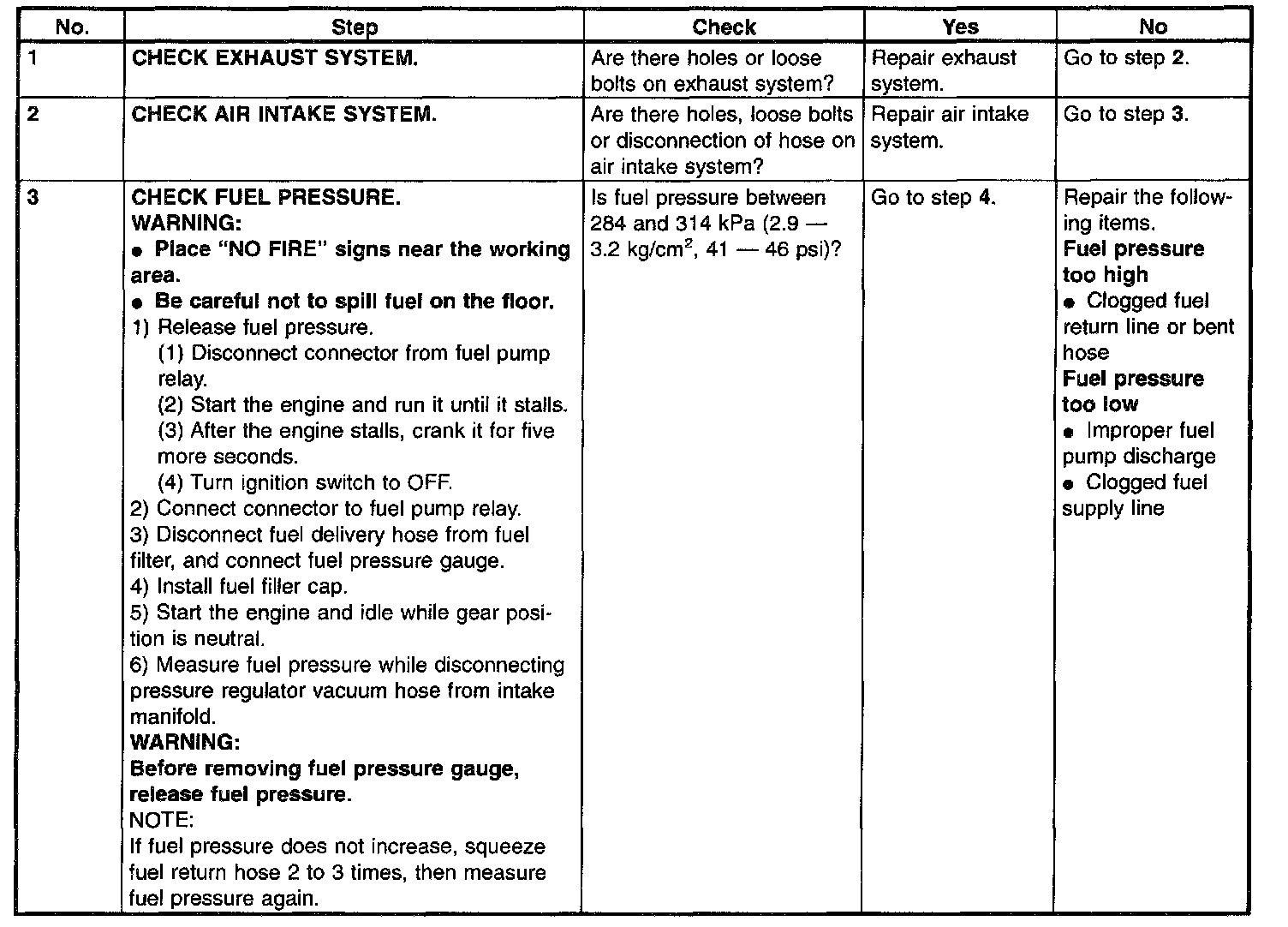

Step 1 - 3:

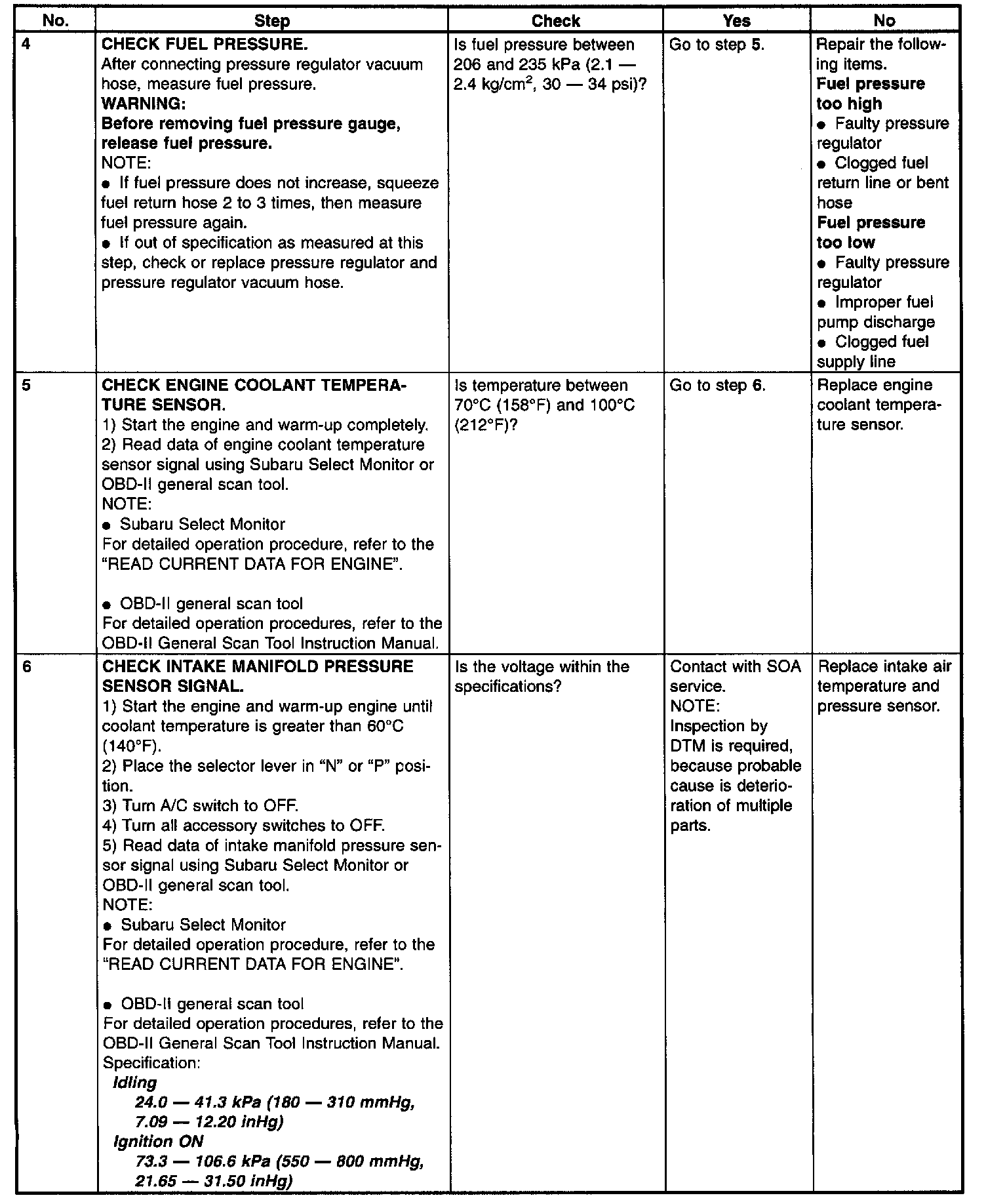

Step 4 - 6:

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .
