P0066

P0066 - AIR ASSIST INJECTOR SOLENOID VALVE CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Immediately at fault recognition

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

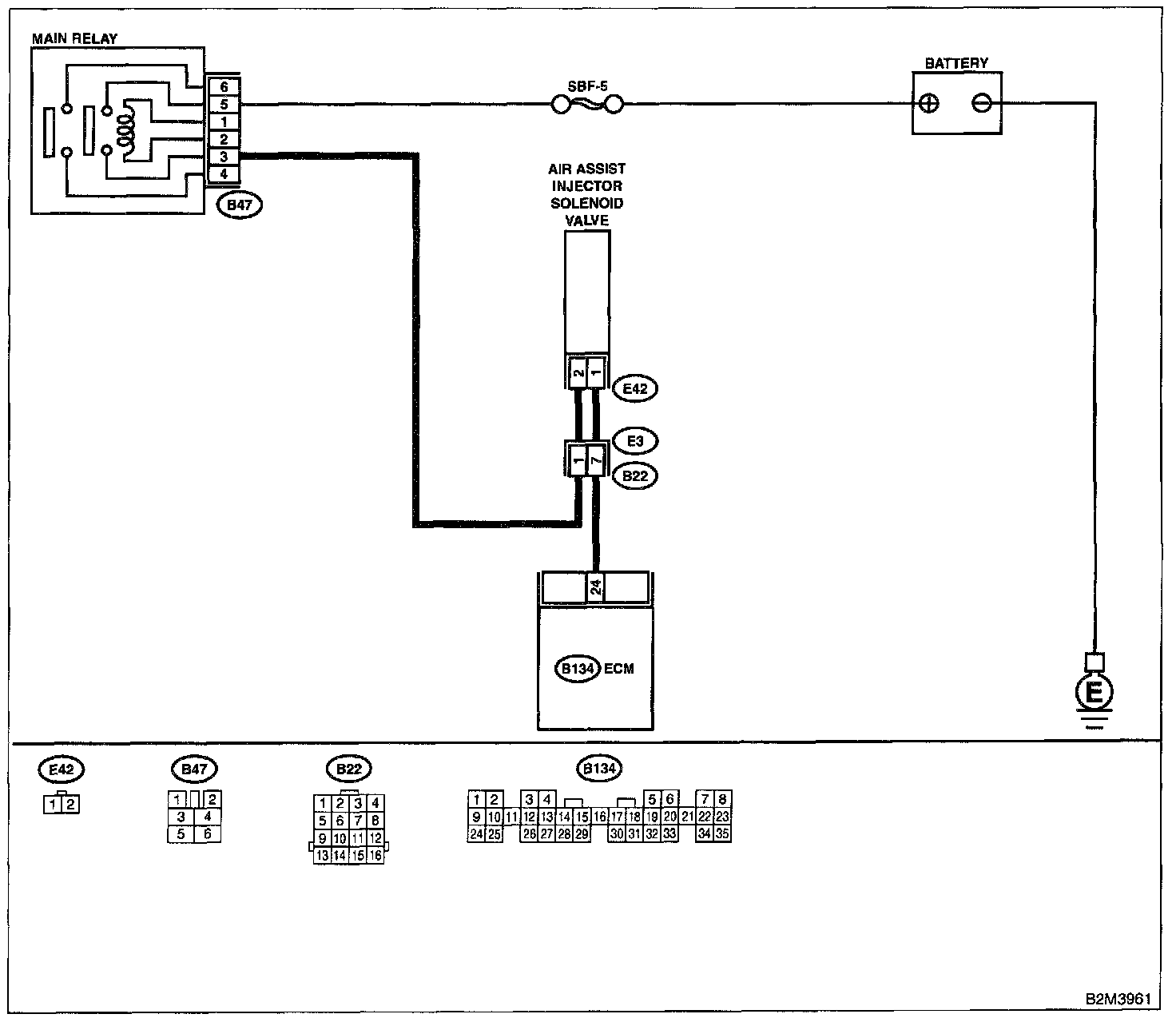

Wiring Diagram:

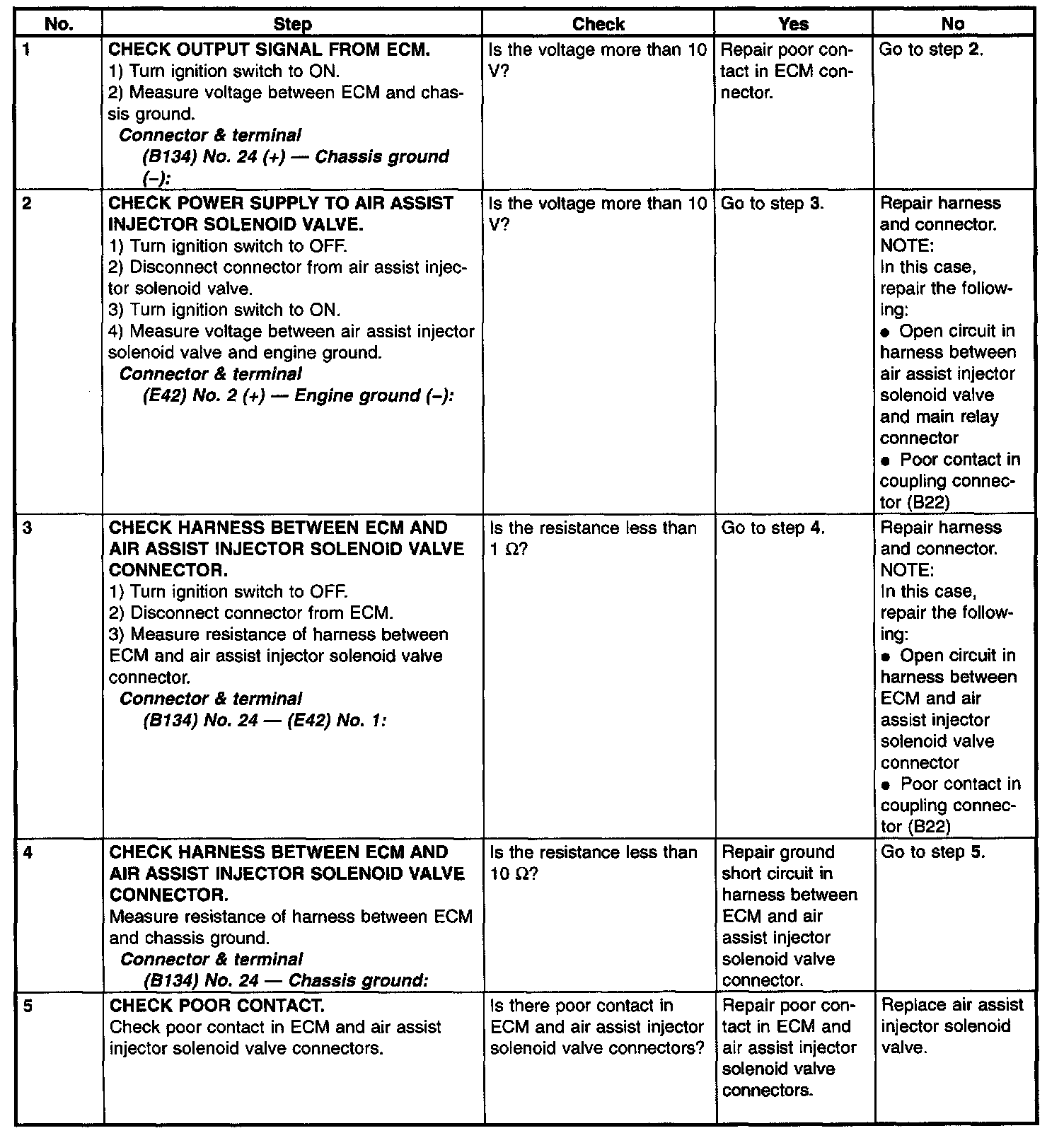

Step 1 - 5:

WIRING DIAGRAM
