P0065

P0065 - AIR ASSIST INJECTOR SOLENOID VALVE MALFUNCTION

DTC DETECTING CONDITION
- Immediately after fault occurrence

TROUBLE SYMPTOM
- Erroneous idling
- Engine stalls.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

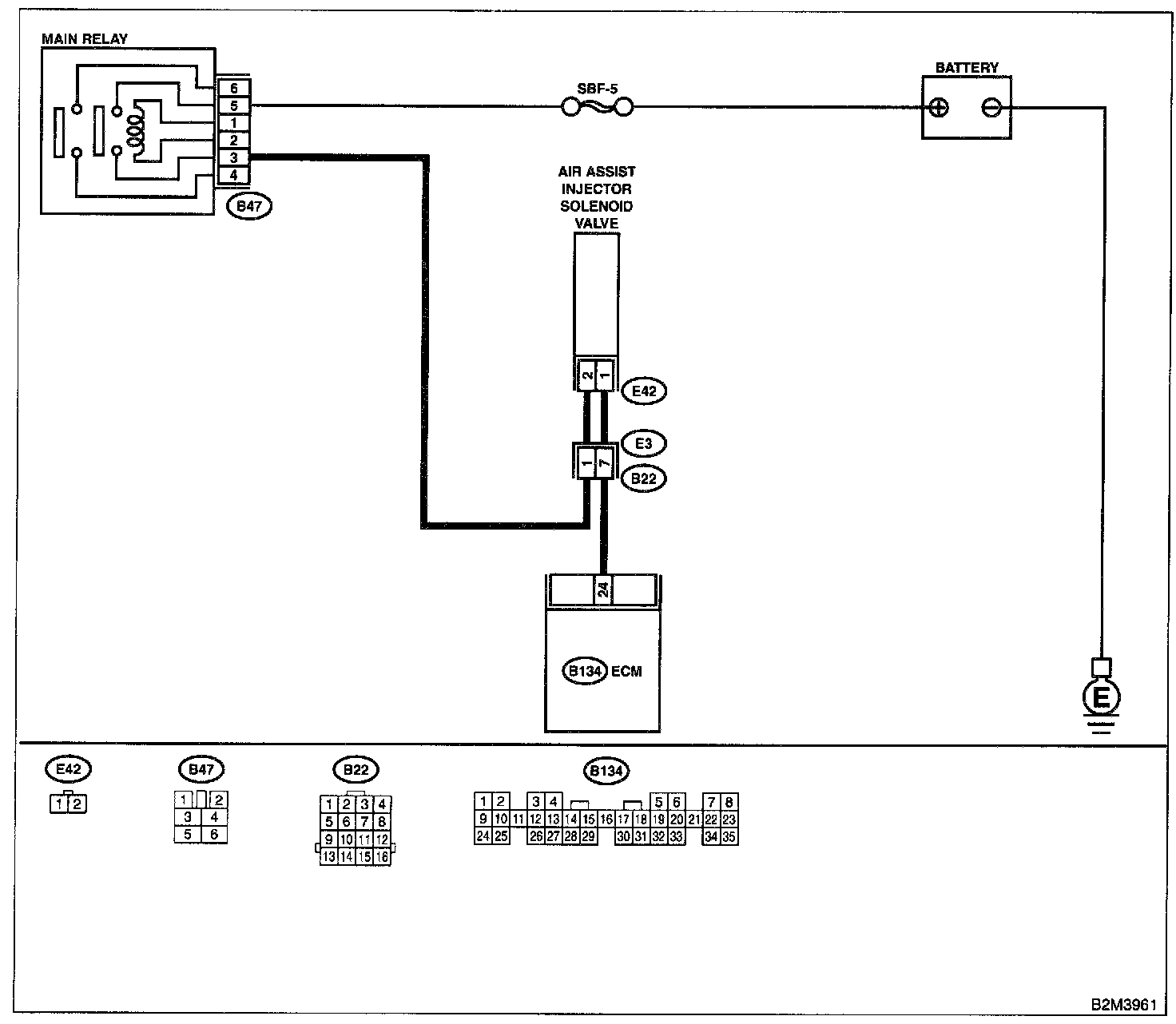

Wiring Diagram:

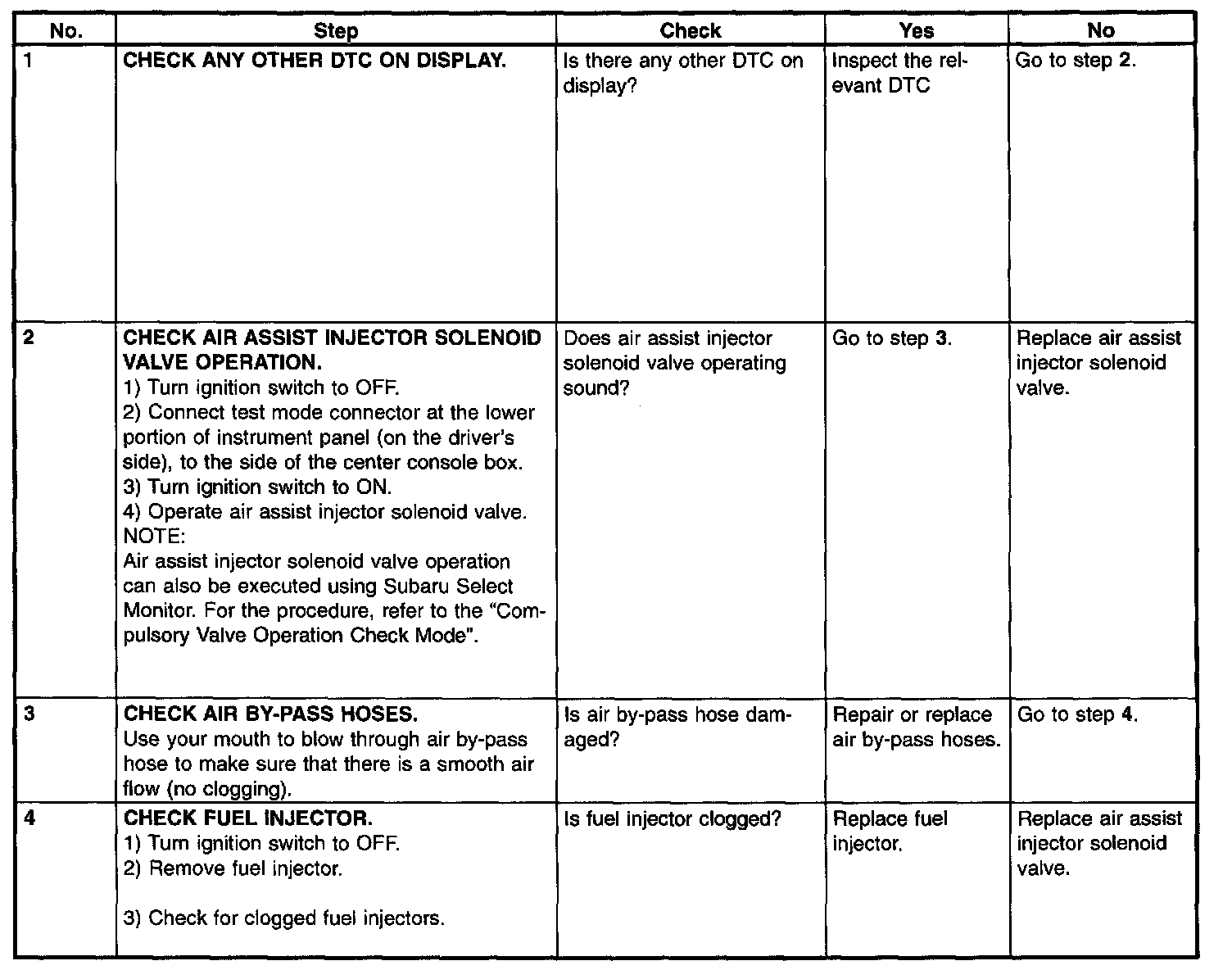

Step 1 - 4:

WIRING DIAGRAM
