P0038

P0038 - REAR OXYGEN SENSOR HEATER CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

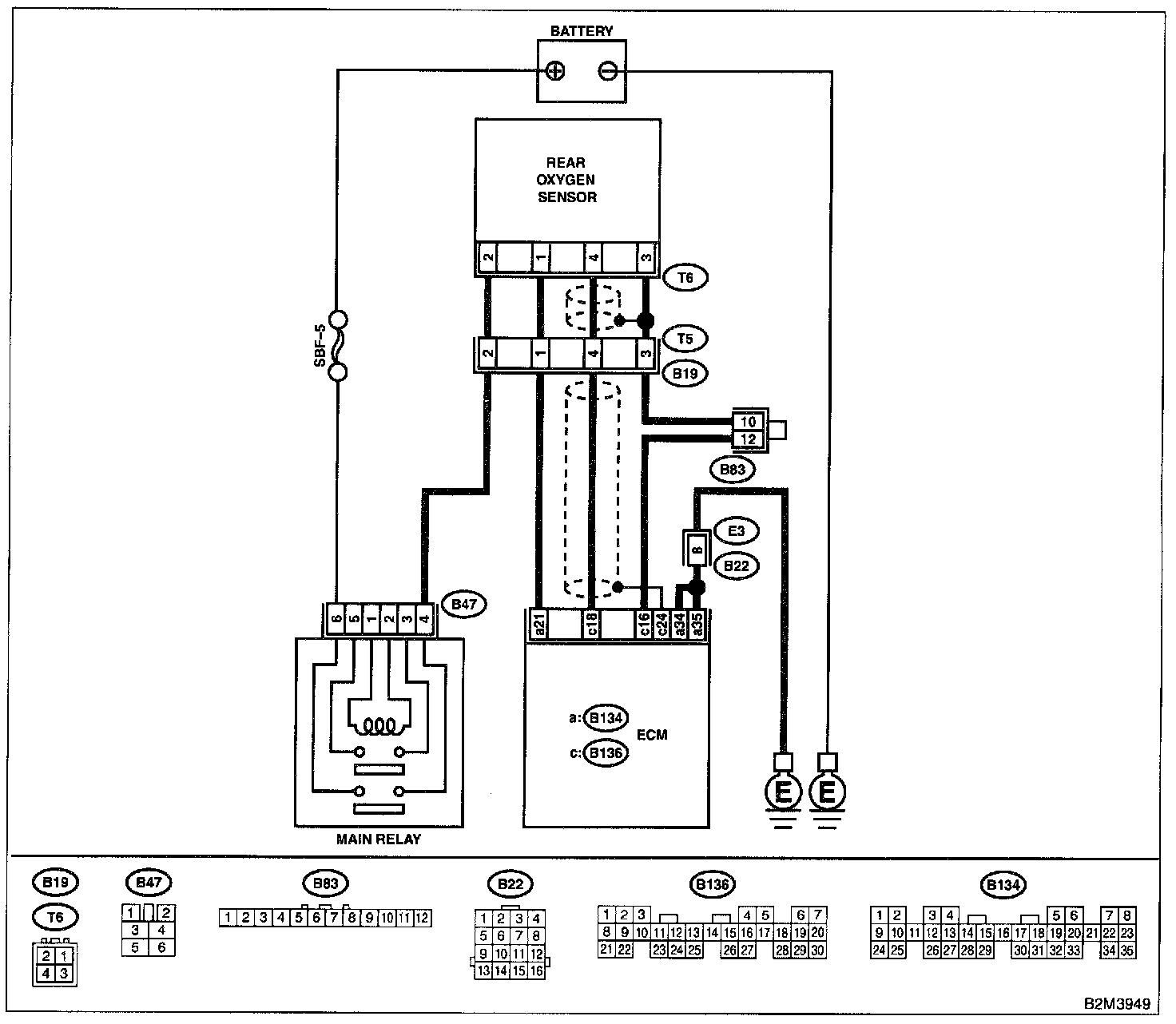

Wiring Diagram:

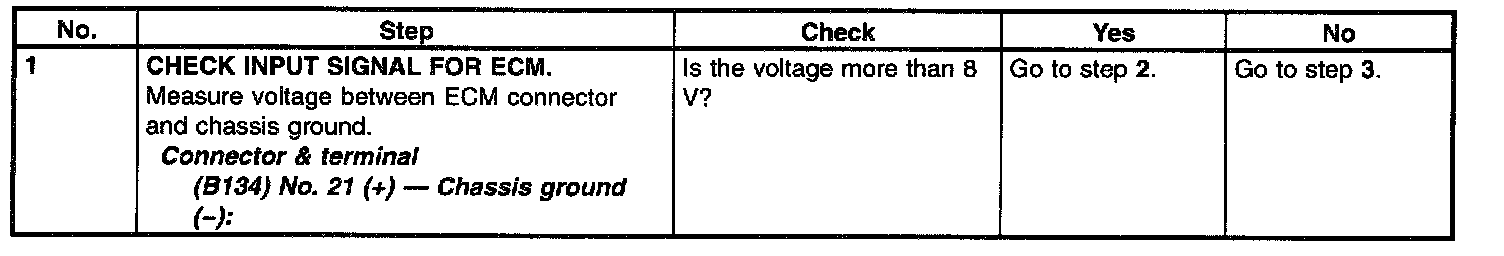

Step 1:

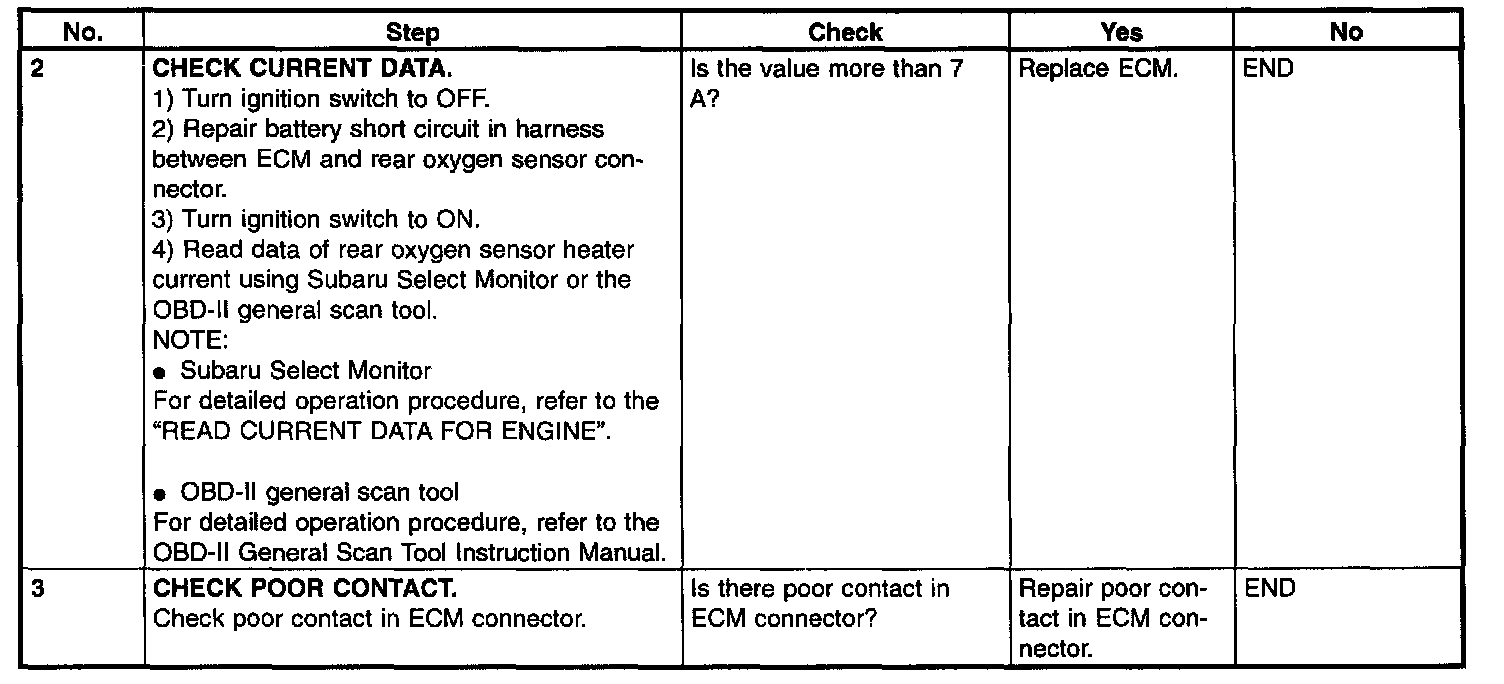

Step 2 - 3:

WIRING DIAGRAM
