P0037

P0037 - REAR OXYGEN SENSOR HEATER CIRCUIT MALFUNCTION

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

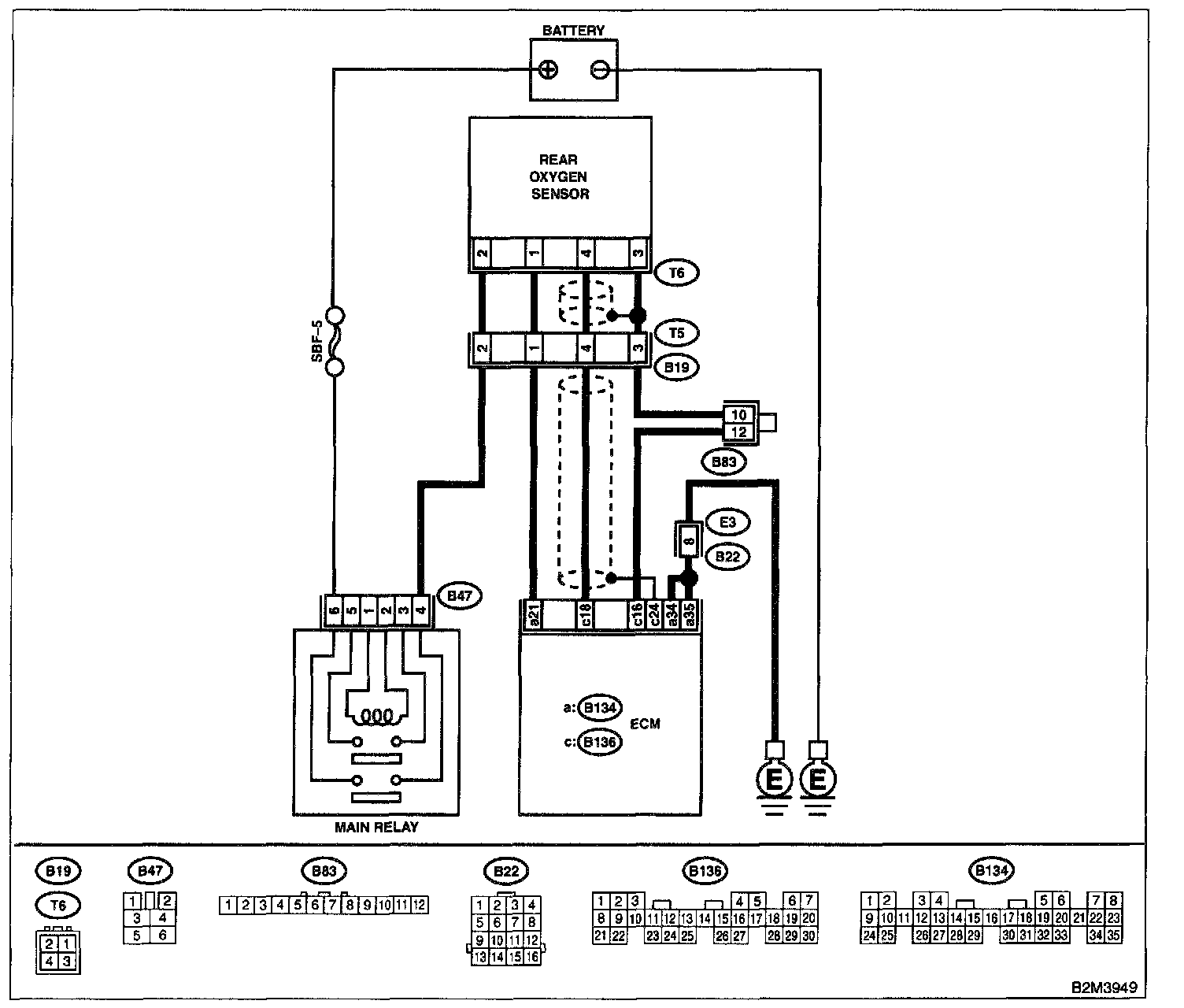

Wiring Diagram:

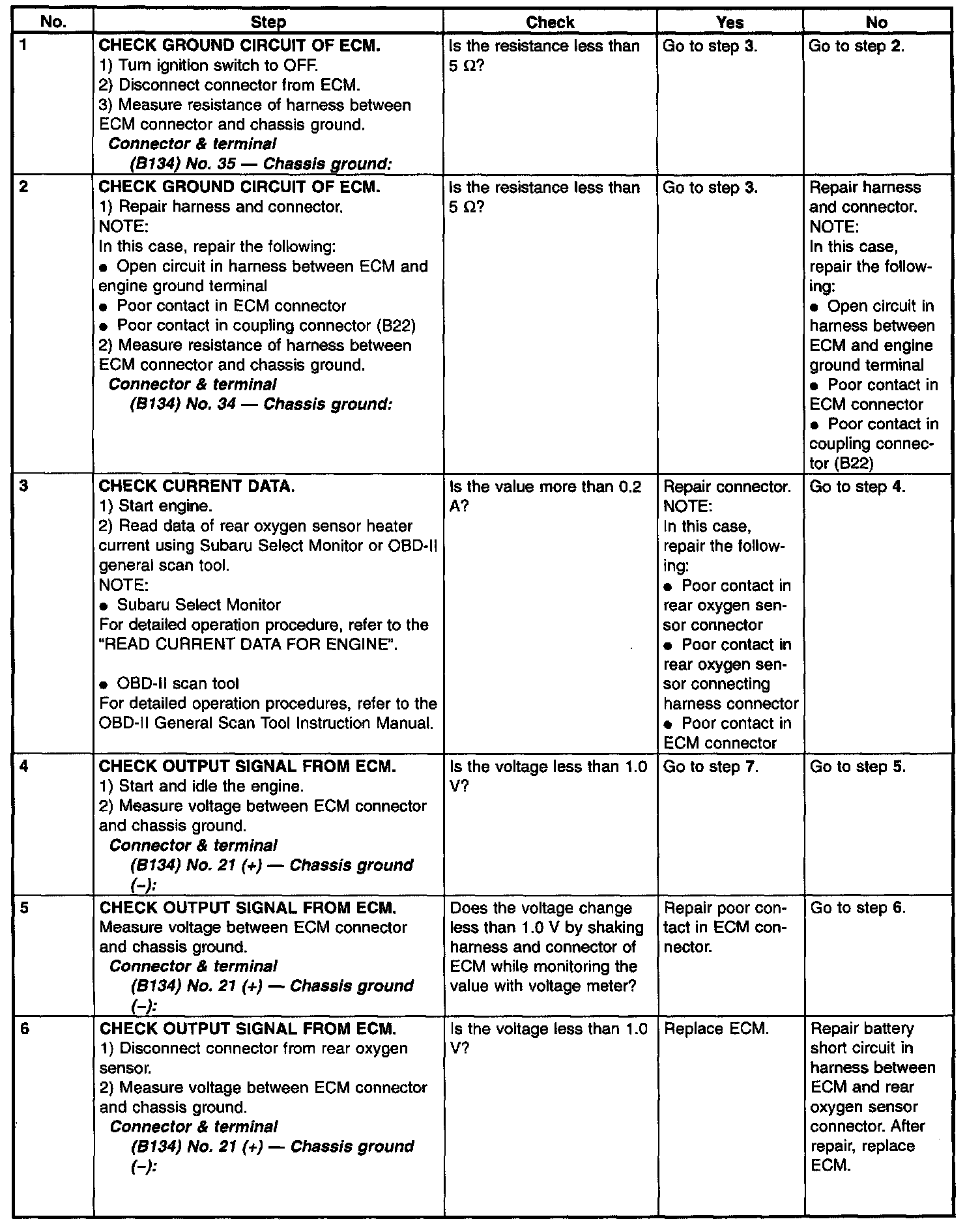

Step 1 - 6:

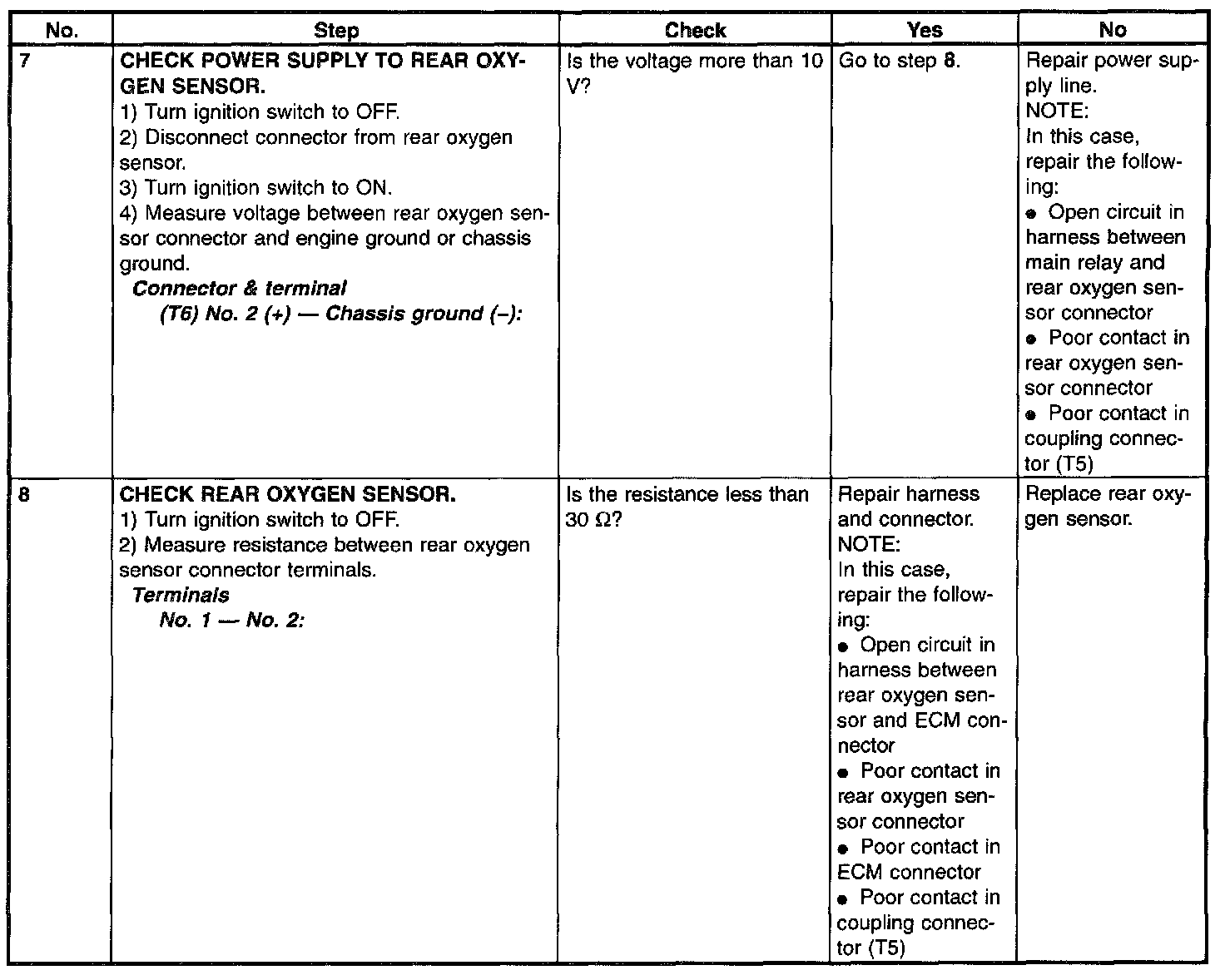

Step 7 - 8:

WIRING DIAGRAM
