P0032

P0032 - FRONT OXYGEN (A/F) SENSOR HEATER CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

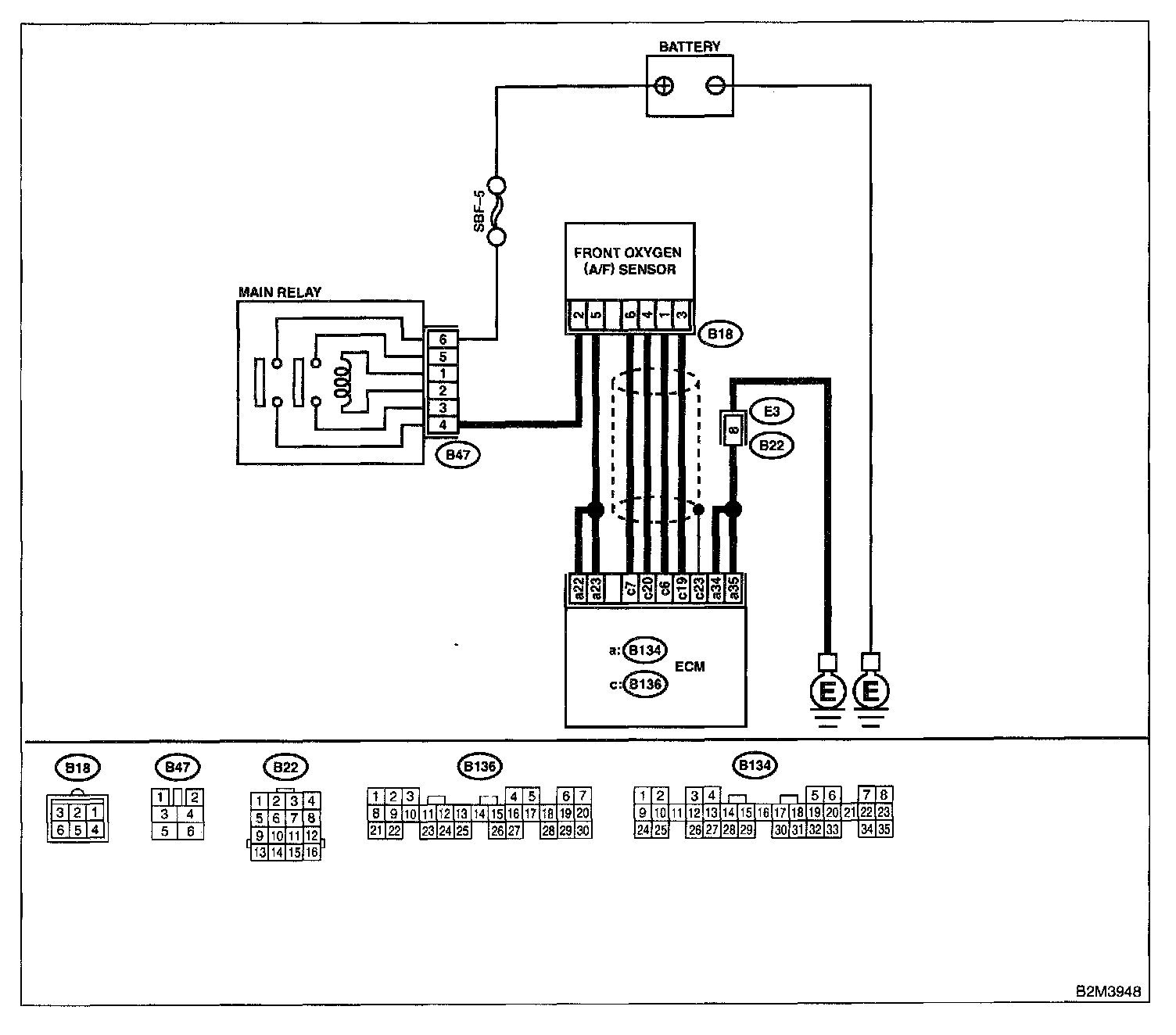

Wiring Diagram:

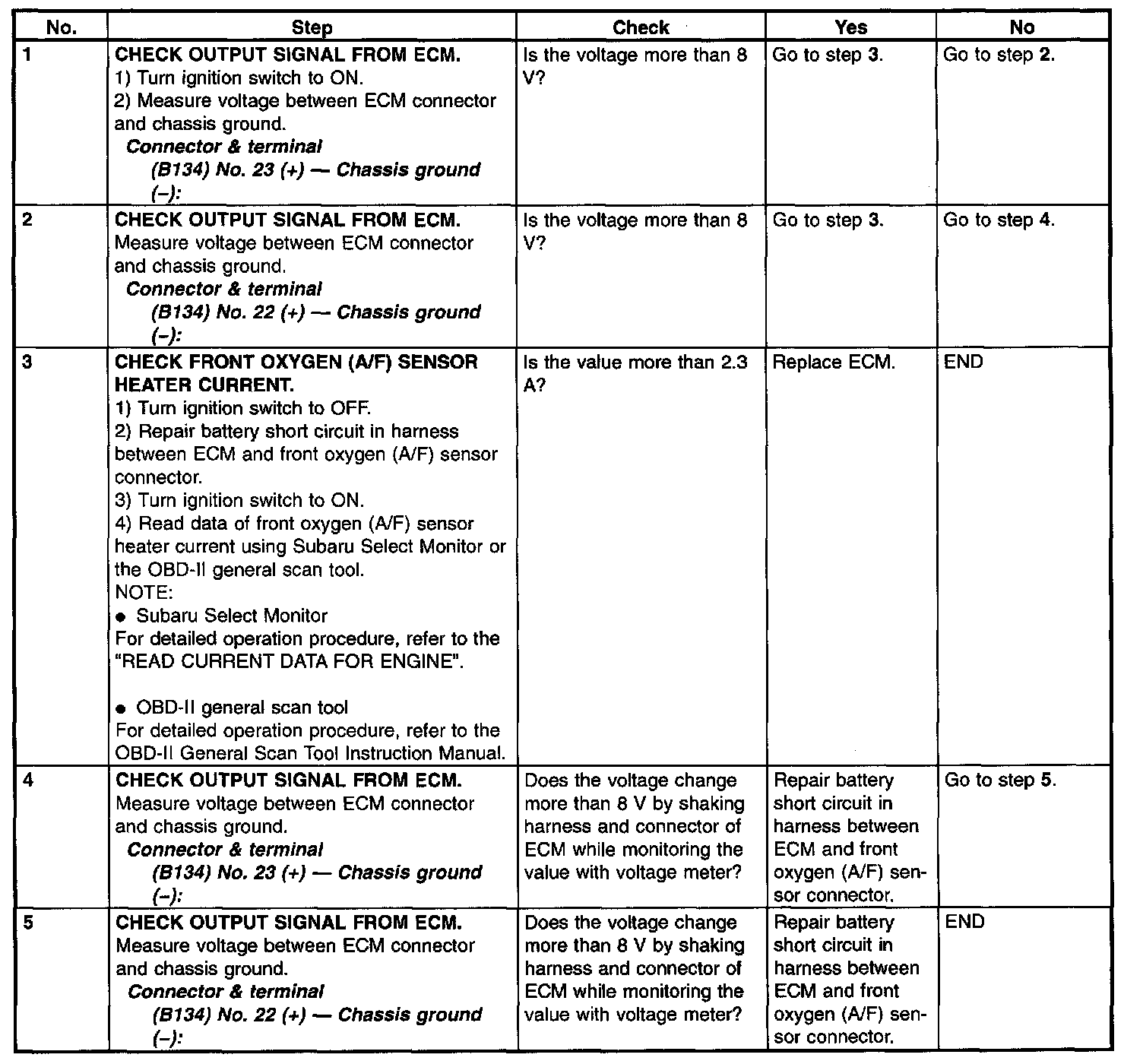

Step 1 - 5:

WIRING DIAGRAM
