P0031

P0031 - FRONT OXYGEN (A/F) SENSOR HEATER CIRCUIT LOW INPUT

DTC DETECTING CONDITION
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

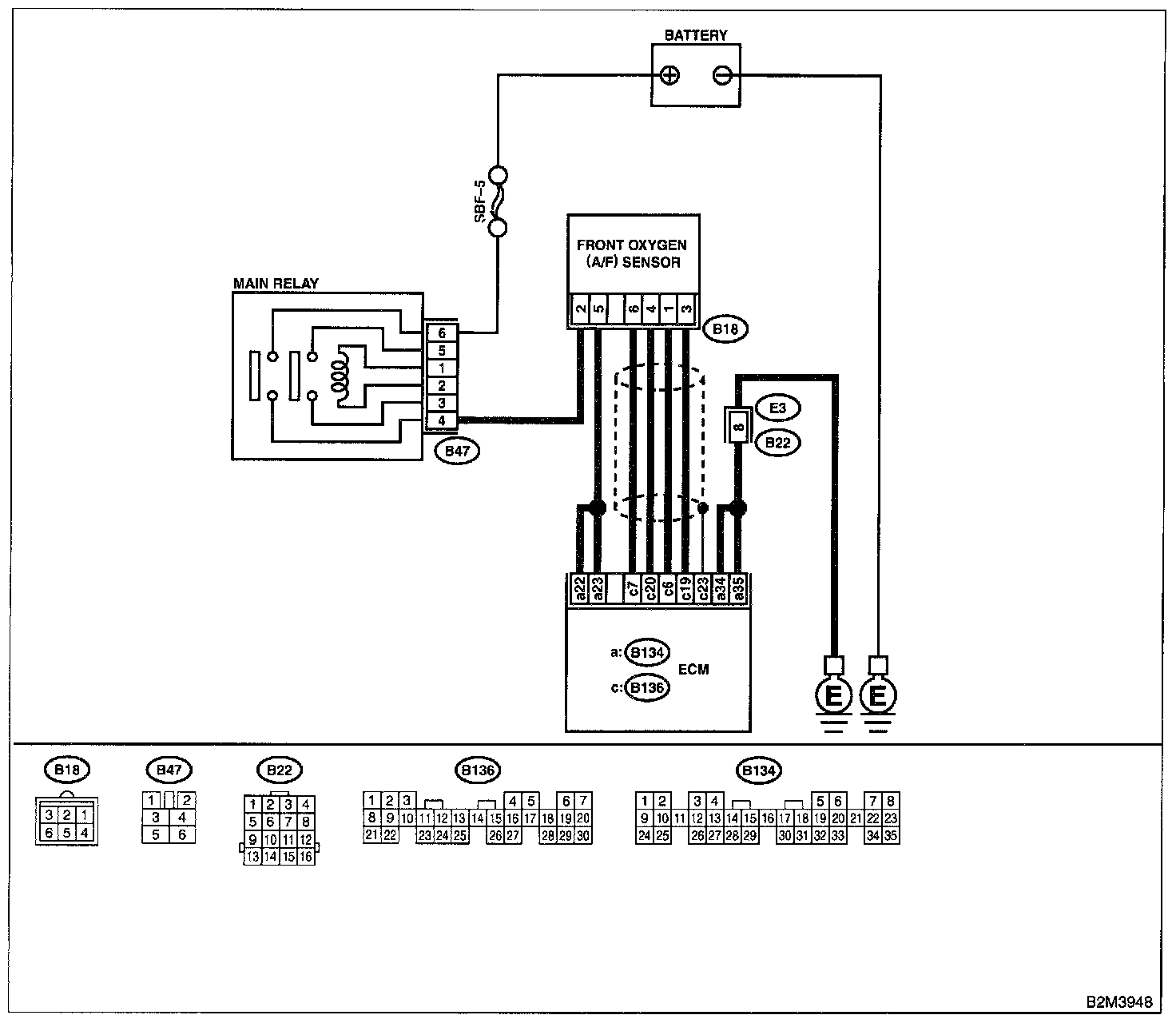

Wiring Diagram:

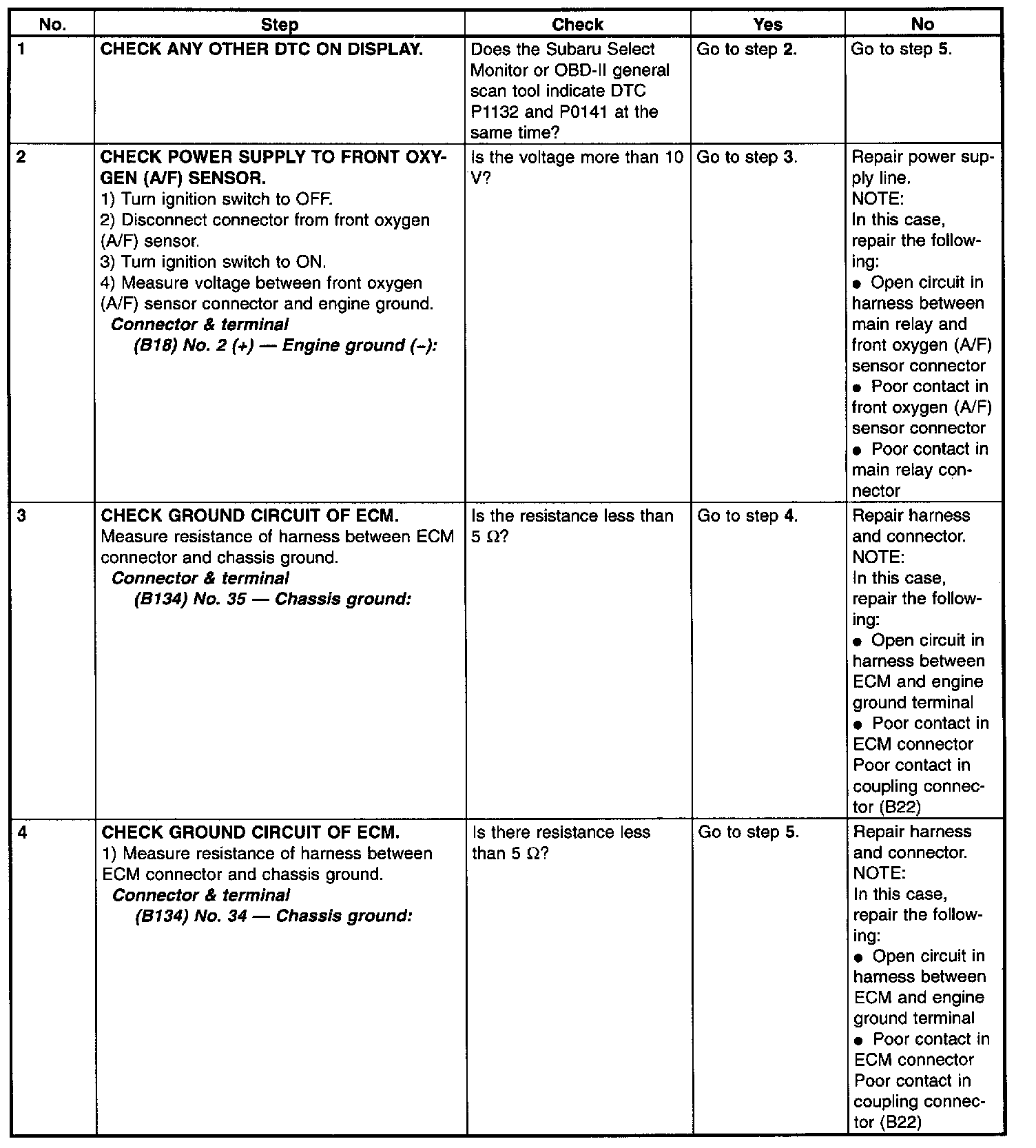

Step 1 - 4:

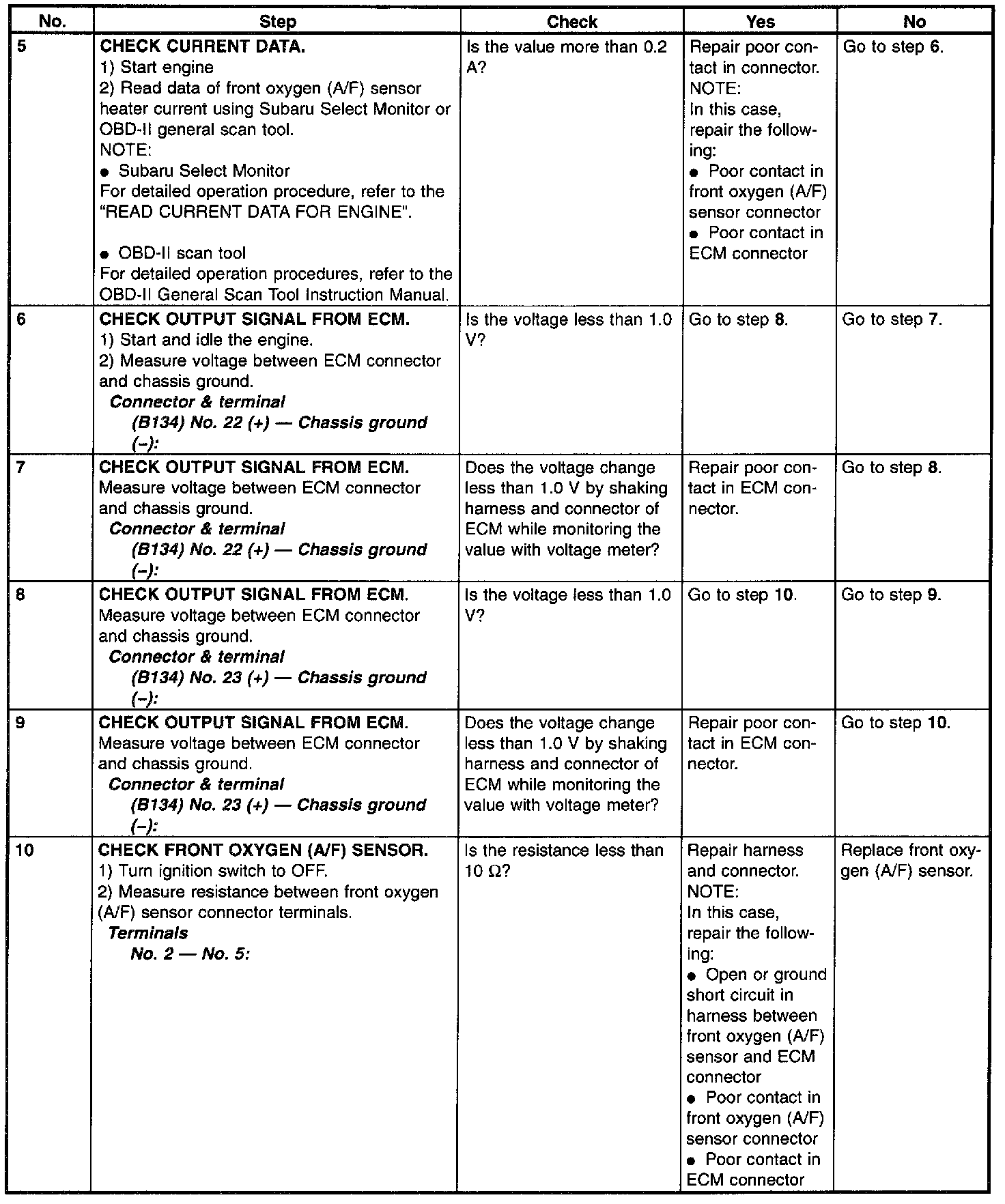

Step 5 - 10:

WIRING DIAGRAM
