Removal and Installation
A: REMOVAL1. Remove gear shift knob.
2. Remove console box.
3. Remove boot plate from body.
4. Remove rear exhaust pipe and muffler.
5. Remove heat shield cover.
6. Remove stay from transmission bracket.
7. Remove rod from joint.
8. Remove cushion rubber from body.
9. Remove joint and then extract straight pin.
10. Remove gear shift lever.
B: INSTALLATION
1. Install the joint to the transmission and secure with the straight pin.
2. Insert gear shift lever from room side.
NOTE: After inserting rod and stay, temporarily put them onto transmission mount.

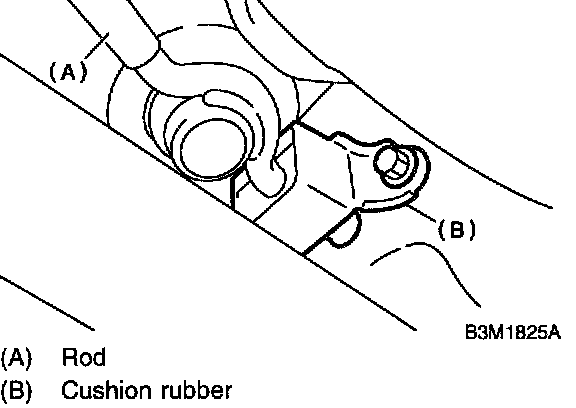

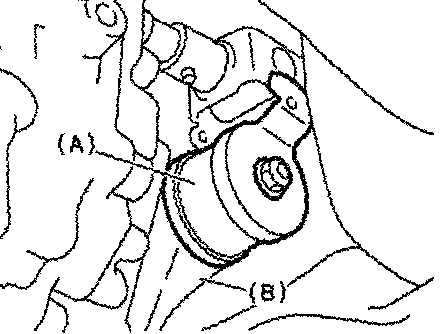

3. Mount cushion rubber on the body.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)

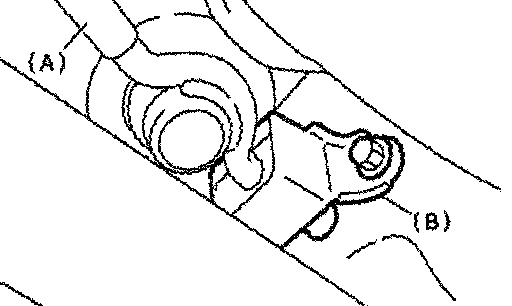

4. Connect rod to the joint.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
5. Connect stay to transmission bracket.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
6. Install heat shield cover.
