Resonator: Service and Repair

REMOVAL
1. Set vehicle on a lift.
2. Remove air intake duct.
3. Remove air cleaner lower case.

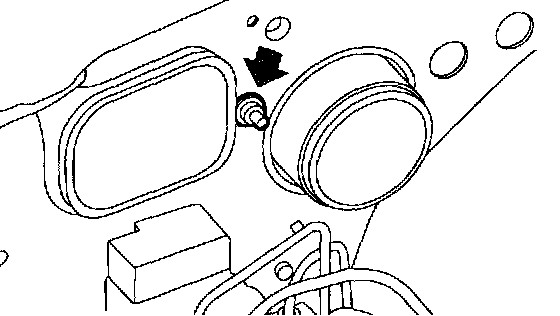

4. Remove the resonator chamber mounting bolt on the right of engine compartment.
5. Remove the front right tire, and lift the vehicle.
6. Remove front mudguard RH.

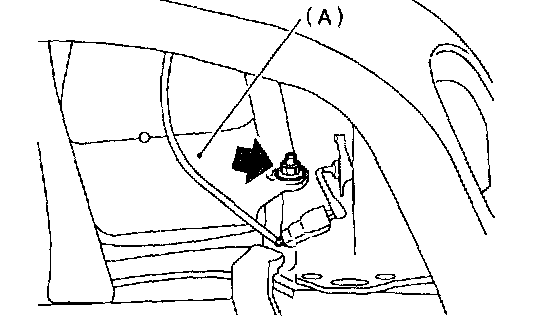

7. Remove the resonator chamber (A) from the inside front fender.

INSTALLATION
Install in the reverse order of removal.

INSPECTION
Inspect for cracks and loose connections. Check that no foreign objects and mixed in the resonator chamber.
