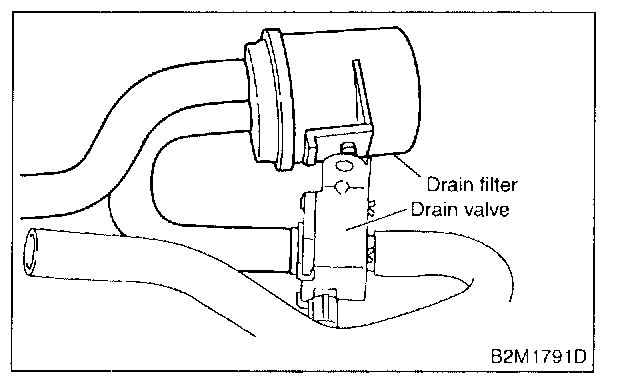

Drain Valve

REMOVAL

1. Set the vehicle on the lift.

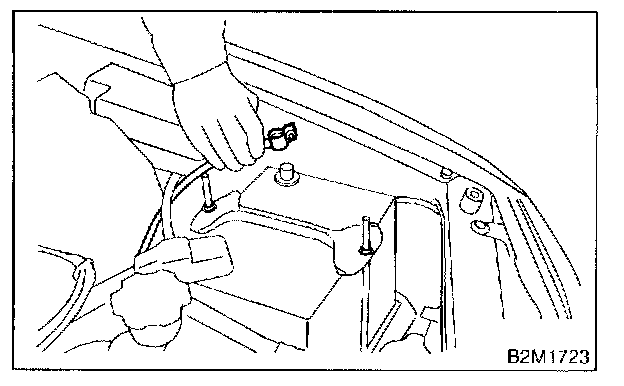

2. Disconnect battery ground cable.
3. Lift-up the vehicle.
4. Remove canister.




5. Disconnect connector from drain valve.

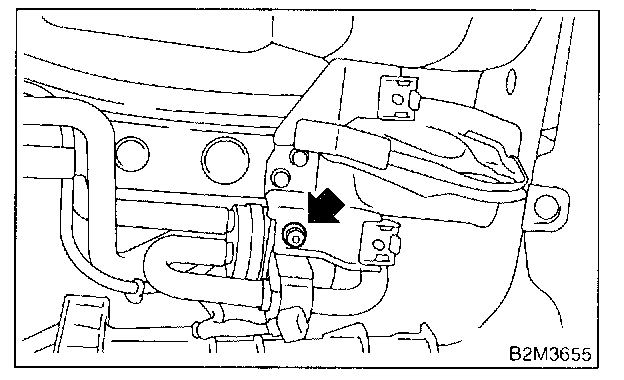

6. Remove bolt which installs air filter and drain valve brackets on body.




7. Disconnect evaporation hose and remove drain valve.

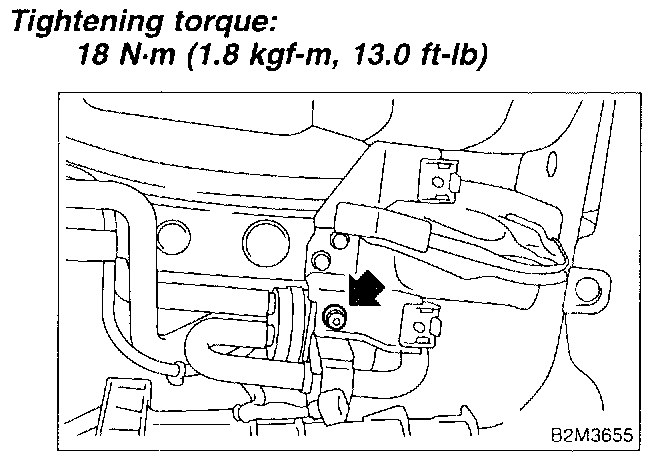

INSTALLATION




Install in the reverse order of removal.
