Canister Purge Solenoid: Service and Repair

REMOVAL

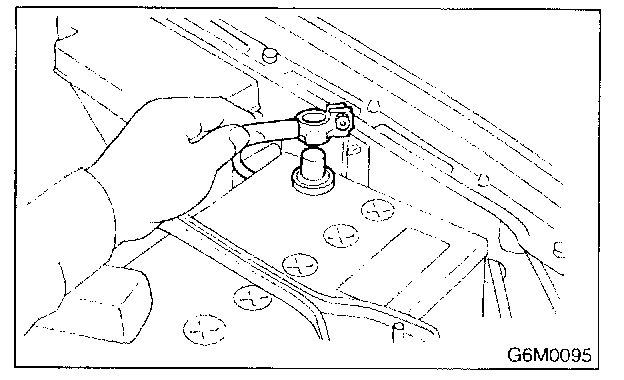

1. Disconnect battery ground cable.




2. Remove power steering pump from bracket.
1. Remove air intake duct and air cleaner case.
2. Remove V-belt.
3. Remove power steering oil pipe with bracket.

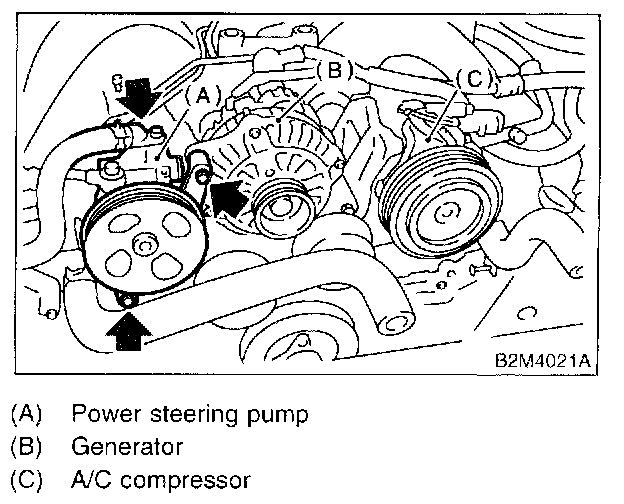

4. Remove bolts which install power steering pump bracket.






CAUTION: Do not separate hose and pipe from the pump main unit.

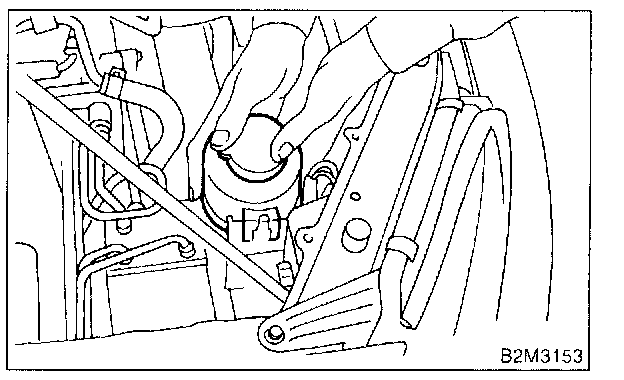

5. Remove power steering tank from the bracket by pulling it upward.

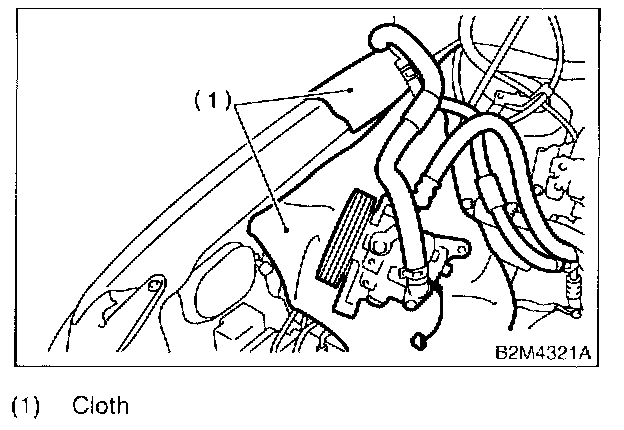

6. Place power steering pump on the right side wheel apron.

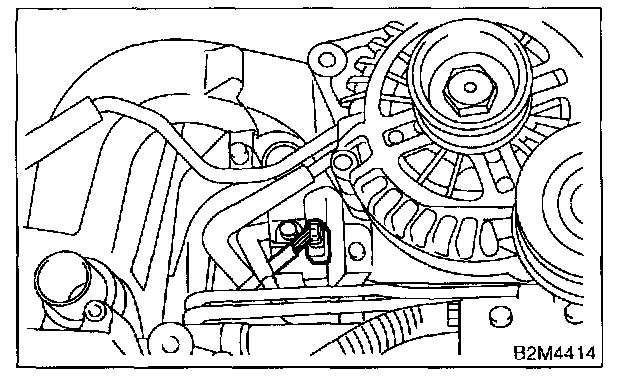

3. Disconnect connector and hoses from purge control solenoid valve.

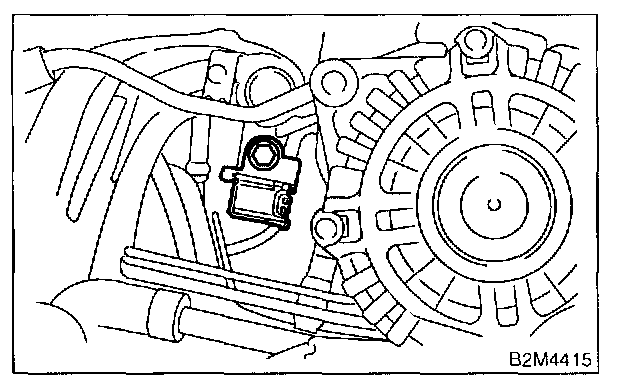

4. Remove bolt which installs purge control solenoid valve onto intake manifold.
5. Take out purge control solenoid valve through the bottom of the intake manifold.

INSTALLATION

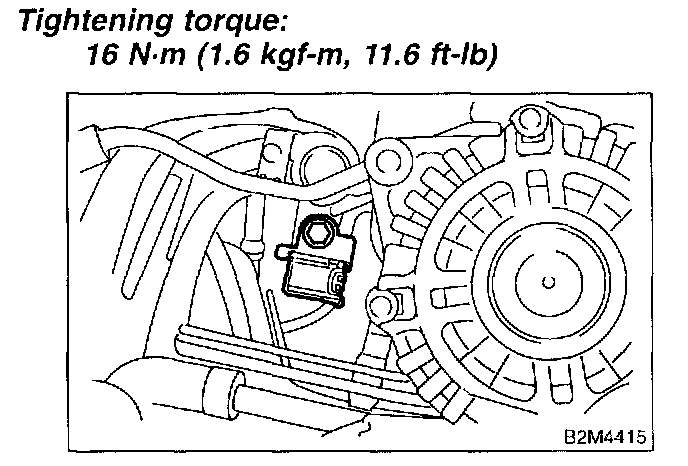

Install in the reverse order of removal.






CAUTION: Carefully connect the evaporation hoses.
