Rear Turn Signal Light Bulb

Rear Turn Signal Light Bulb

REMOVAL

1. Remove rear combination light assembly.

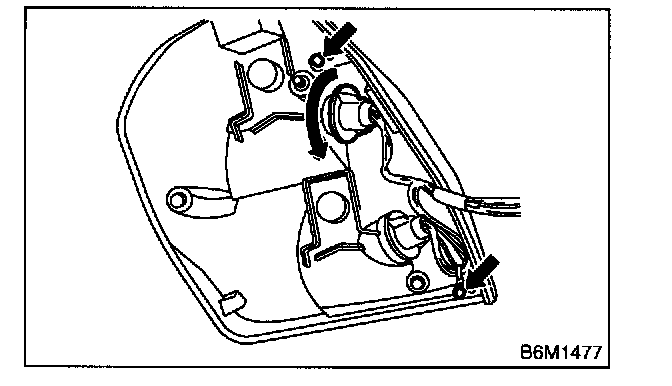

2. Remove the light cover mounting screws then detach the cover.




3. Turn the socket and remove the bulb.

INSTALLATION
Install in the reverse order of removal.
