Tail Light Bulb: Service and Repair

Brake/Tail Light Bulb

REMOVAL

WAGON (COMBINATION LIGHT)

1. Remove rear combination light assembly.

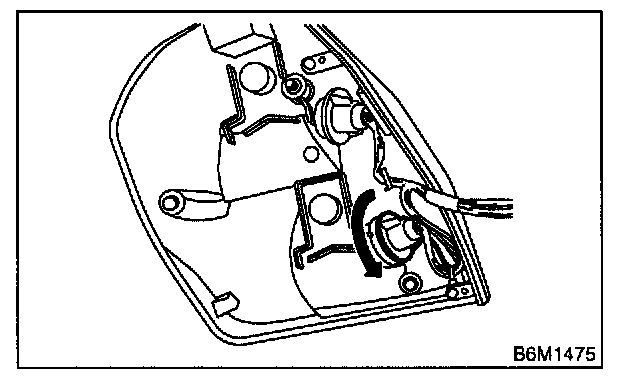

2. Turn the socket and remove the bulb.

WAGON (FINISHER LIGHT)




1. Open rear gate lower trim cover.
2. Turn the socket and remove the bulb.

INSTALLATION
Install in the reverse order of removal.
