Center Mounted Brake Lamp: Service and Repair

High-Mounted Stop Light

REMOVAL

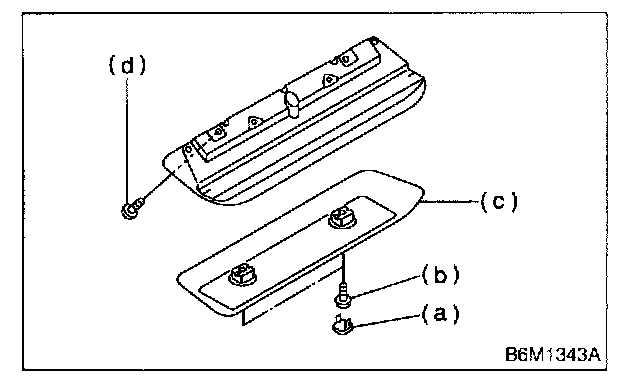

1. Remove cap (a) by prying on the edge with a screwdriver.
2. Remove screws (b) and then detach cover (c).
3. Remove screws (d) and then detach highmounted stop light while disconnecting connector.

INSTALLATION
Install in the reverse order of removal.
