Rear

REMOVAL

1. Completely close rear sunroof lid and open sunshade.
2. Disconnect ground cable from battery.

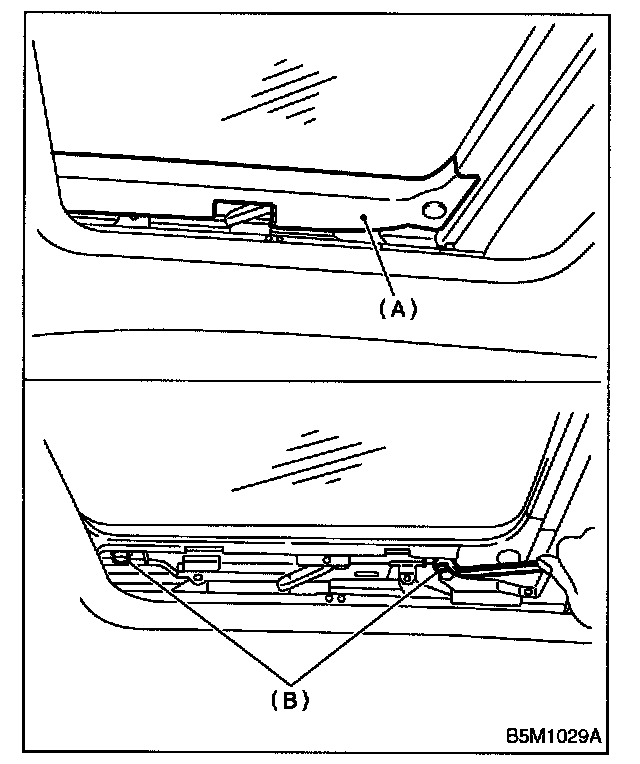

3. Remove covers (A) then remove nuts (B).
4. Remove the sunroof lid carefully.

INSTALLATION
Install in the reverse order of removal.






CAUTION: When installing sunroof lid, be careful not to pinch the lip of lid.
