Front

REMOVAL

1. Tilt-up the front sunroof (most upper position).
2. Disconnect ground cable from battery.
3. Remove sunroof switch.

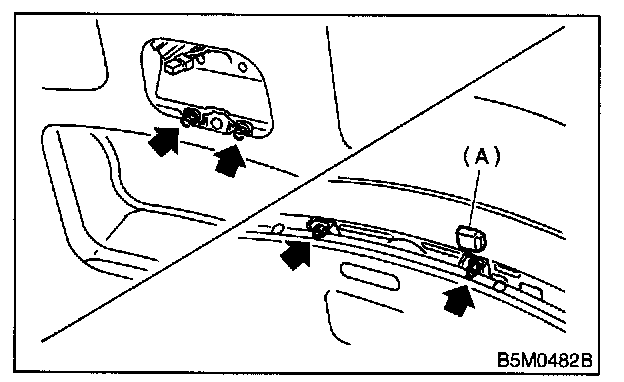

4. Remove two mounting bolts.




5. Detach covers (A) then remove two nuts from tilt-up assembly.
6. Remove the sunroof lid carefully.

INSTALLATION
Install in the reverse order of removal.

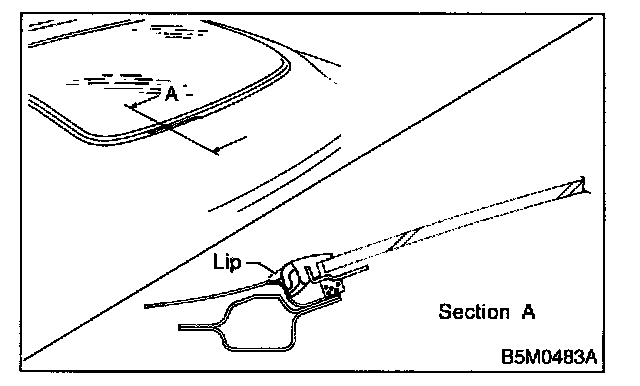

CAUTION: When installing sunroof lid, be careful not to pinch the lip of lid.
