Sunroof Assembly

REMOVAL

1. Remove roof trim.
2. Remove front sunroof lid.
3. Remove room lamp harness clip.




4. Remove bolts (A), nuts (B) and clips (C) then detach the sunroof frame.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Be careful not to snag the harness.






NOTE:
- Make sure to connect harness connector.

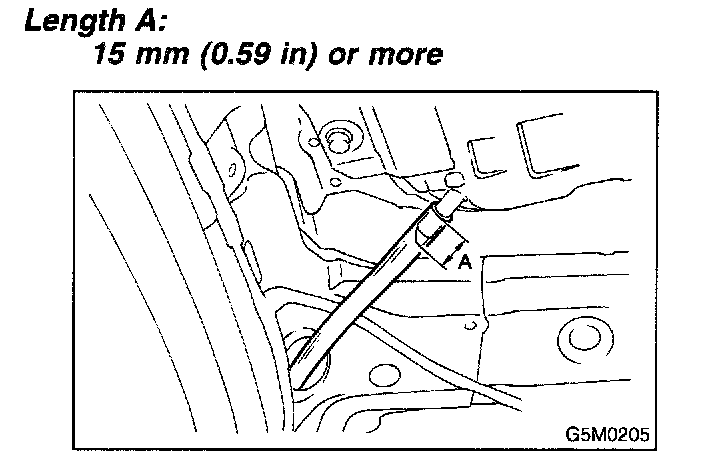

- When installing drain tube, insert it securely onto drain pipe.
