Antenna Amplifier: Service and Repair

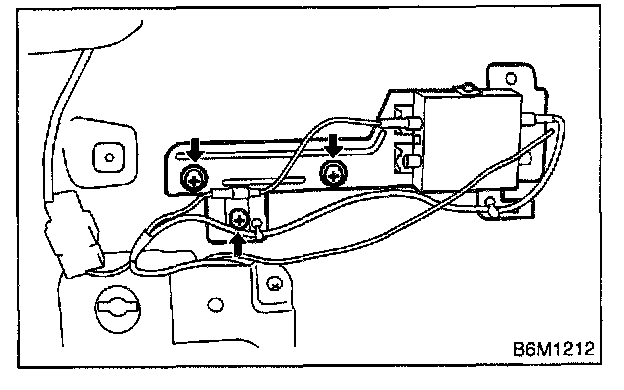

REMOVAL1. Remove rear quarter lower trim (left side).
2. Disconnect harness connector and terminal.
3. Remove mounting screw and detach antenna amplifier.
INSTALLATION
Install in the reverse order of removal.
1. Remove rear quarter lower trim (left side).
2. Disconnect harness connector and terminal.
3. Remove mounting screw and detach antenna amplifier.
INSTALLATION
Install in the reverse order of removal.
