Front Wiper Motor

Front Wiper Motor

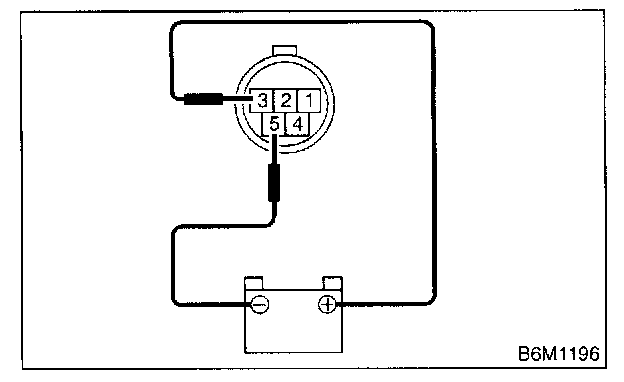

1. When battery is connected to terminal of connectors, confirm that motor operates at low speed.




2. When battery is connected to terminal of connectors, confirm that motor operates at high speed.

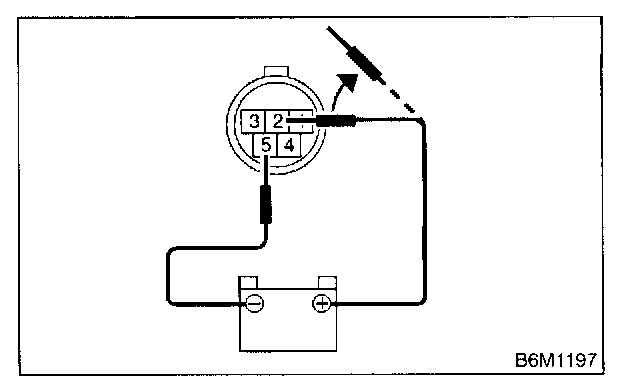

3. Connect battery to terminals of connector, and remove terminal connection with motor rotated at low speed, and stop wiper motor through operation.

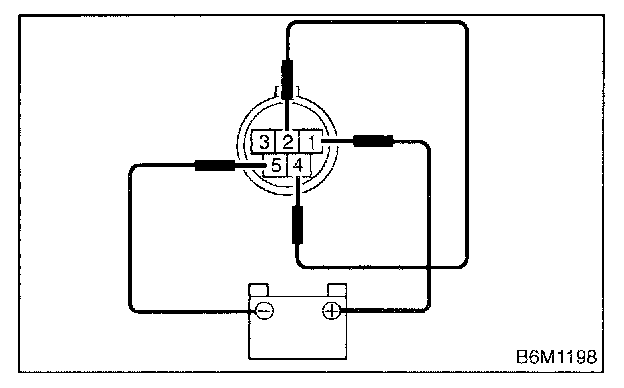

4. Connect battery and confirm that motor stops at automatic stop position after motor operates at low speed again.
