Wiper Motor Linkage: Service and Repair

Front Wiper Motor and Link

REMOVAL

1. Remove cowl panel.

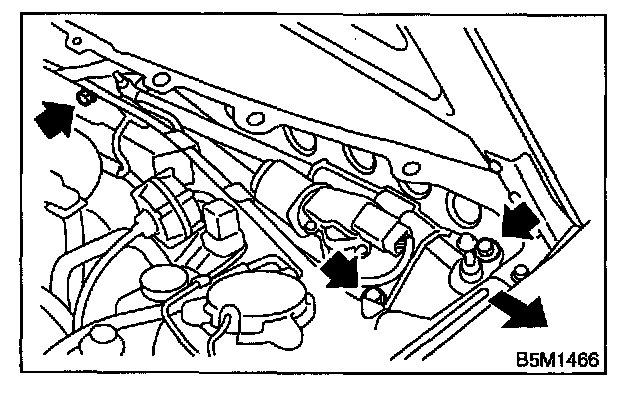

2. Disconnect wiper motor connector.




3. Loosen bolts and nuts to remove wiper link.

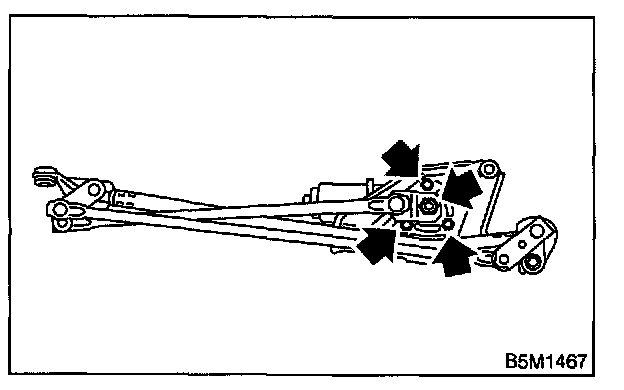

4. Loosen bolts and nut to remove motor.

INSTALLATION
Install in the reverse order of removal.
