Removal and Installation
Wiper Blade
REMOVAL

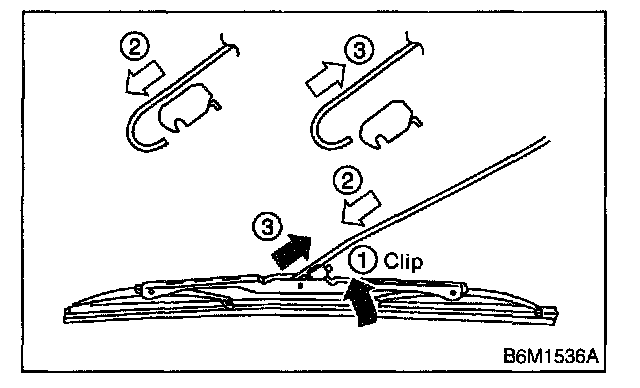

While pushing locking clip up, pull out blade from arm to arrow direction.
INSTALLATION
1.
Install in the reverse order of removal.
2.
Confirm that clip was locked securely.
