Front Washer

Front Washer

REMOVAL

1. NOZZLE




1. Remove the washer hose from the washer nozzle.

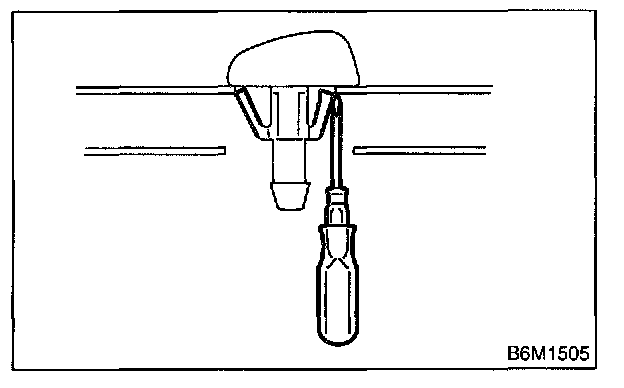

2. Open the clips on the underside of the hood with a thin screwdriver or other tool, and remove the washer nozzle.

INSTALLATION

1. NOZZLE

1. Install in the reverse order of removal.
2. Adjust the position of the washer liquid sprayer.
