Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Spray Nozzle >> Adjustments >> Front Washer

Front Washer

Front Washer Nozzle

1. Turn wiper switch to OFF position.

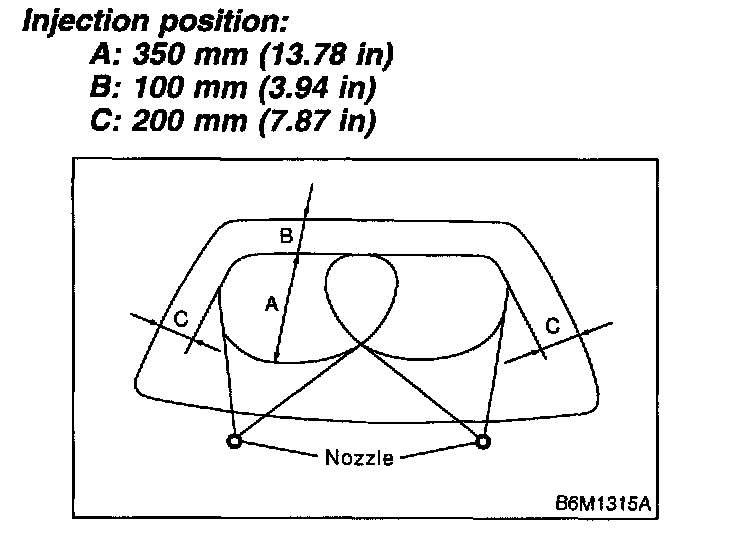

2. When vehicle stops, adjust washer injection position as shown in the figure.
