Wiper Blade Heater Switch
>>
Testing and Inspection
Wiper Blade Heater Switch: Testing and Inspection
Wiper Deicer Switch

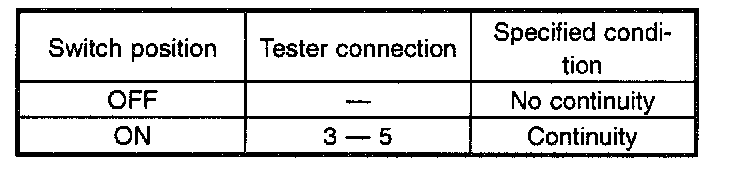

Move wiper deicer switch to each position and check continuity between terminals.
If NG, replace the switch.
