FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2001
>>
Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>

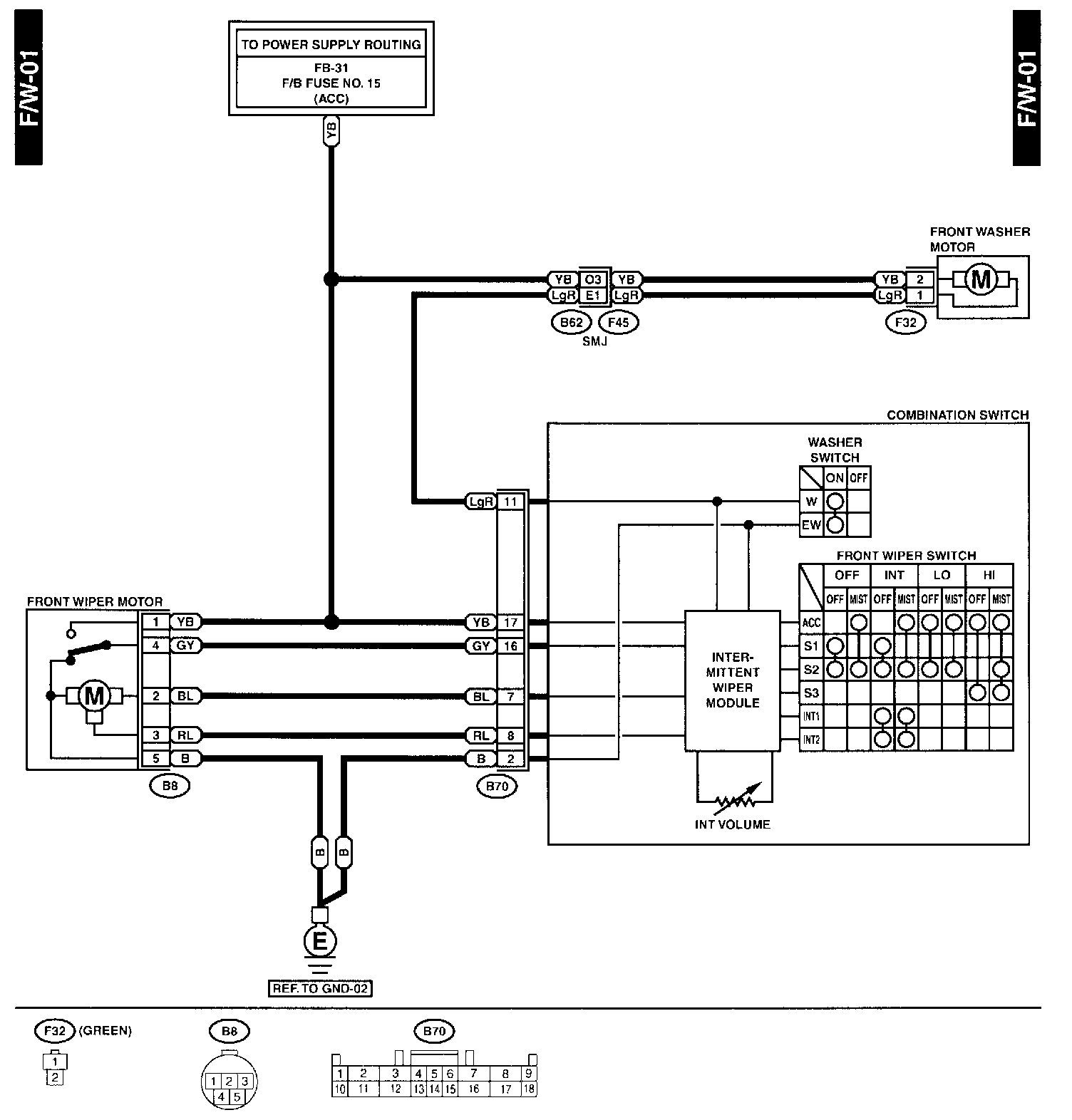

Front Wiper and Washer System
Front Wiper and Washer System
F/W-01:
