Front Door Window Regulator: Service and Repair

Front Regulator and Motor Assembly

REMOVAL

1. Remove door trim.
2. Remove sealing cover.
3. Remove inner remote.
4. Remove door glass.
5. Disconnect electrical connector.

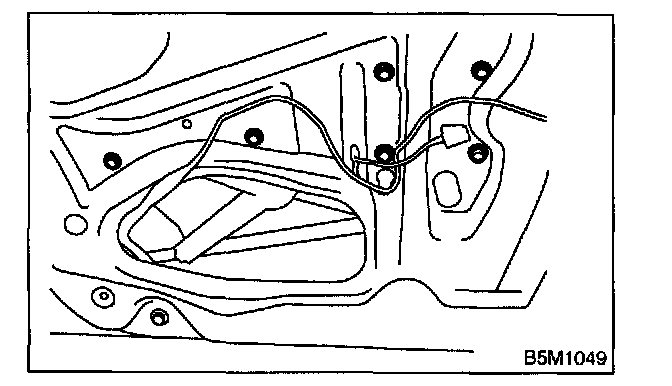

6. Loosen four bolts and two nuts to pull out regulator assembly.

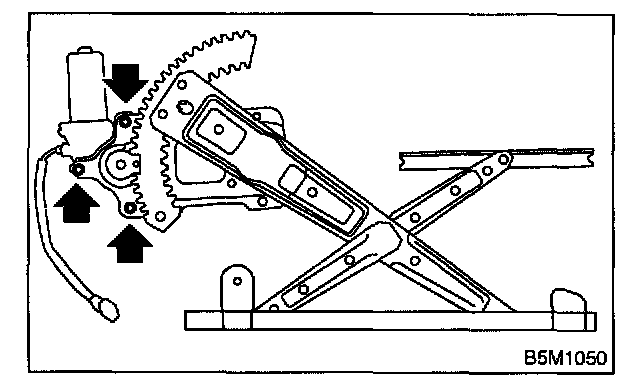

7. Loosen screws to remove motor assembly.

INSTALLATION

1. Install in the reverse order of removal.
2. Adjust front door glass.
