Power Window Switch: Testing and Inspection
Power Window Control Switch1. MAIN SWITCH

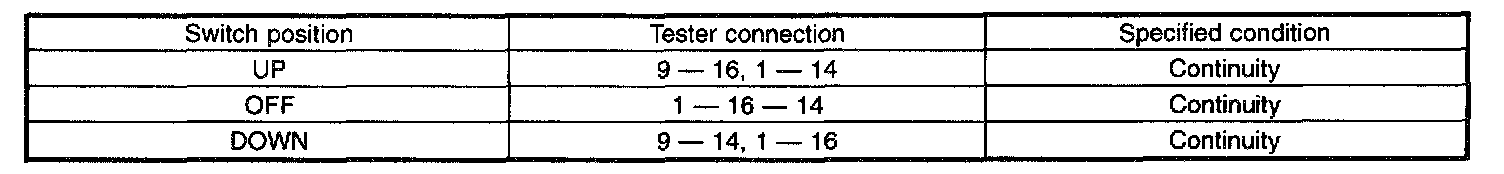

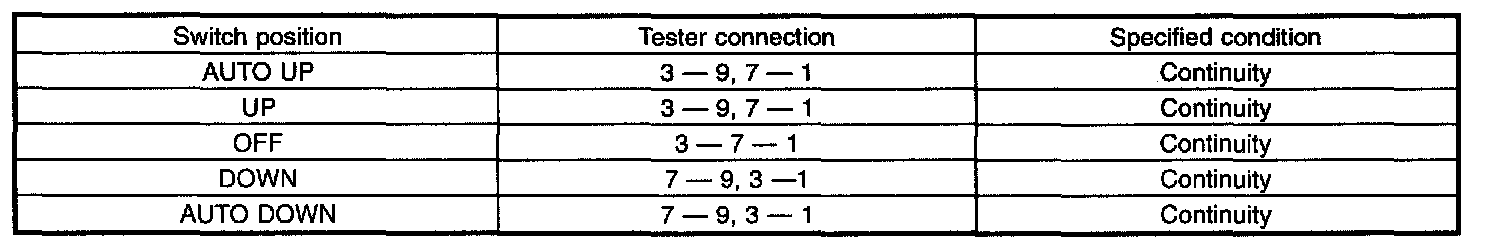

Driver's Switch:

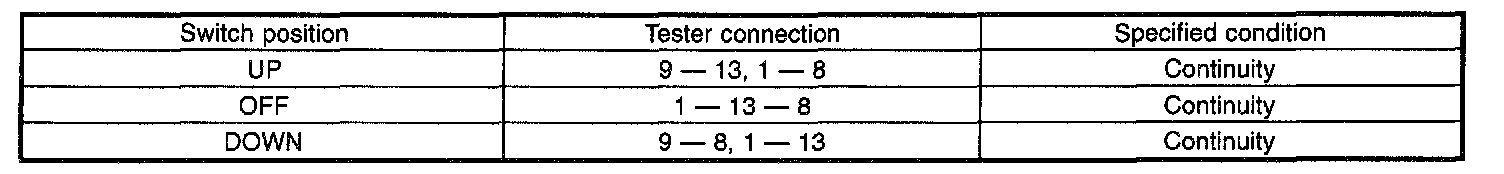

Front Passenger's Switch:

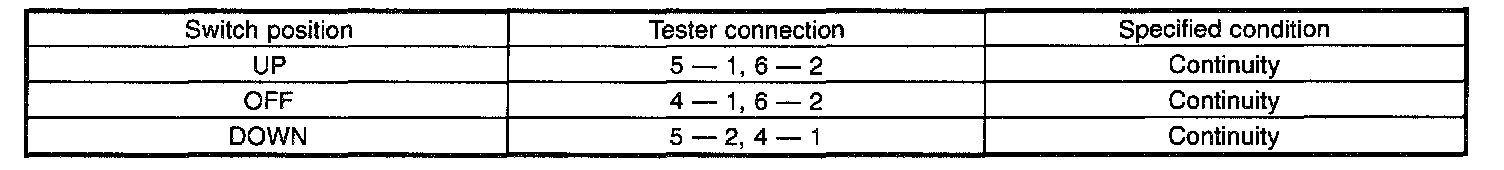

Rear Left Switch:
Rear Right Switch:
Check continuity between connector terminals.
If NG, replace the main switch.
2. SUB-SWITCH

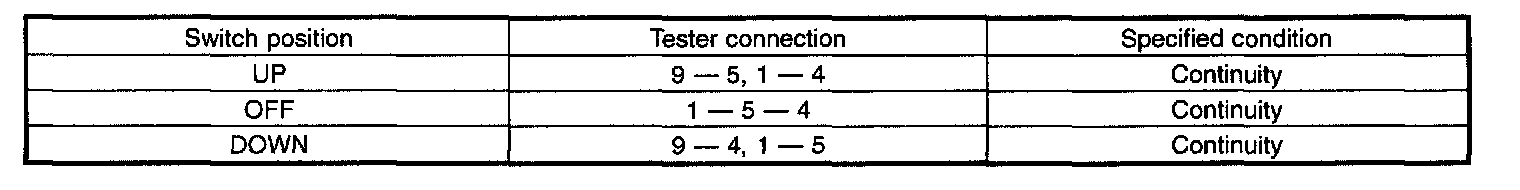

Front Passenger's Door Switch And Rear Door Switch:
Check continuity between connector terminals.
If NG, replace the sub-switch.
