Reverse Check Sleeve

A: REMOVAL
1. Remove the manual transmission assembly from vehicle.

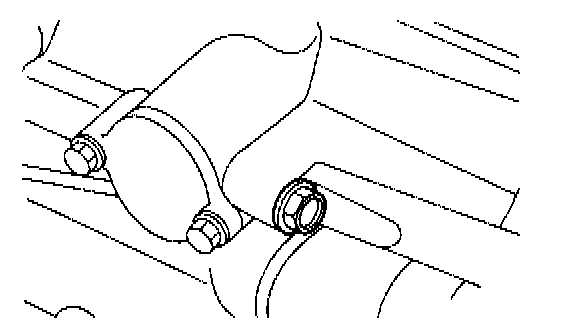

2. Remove plug, spring and reverse check ball.

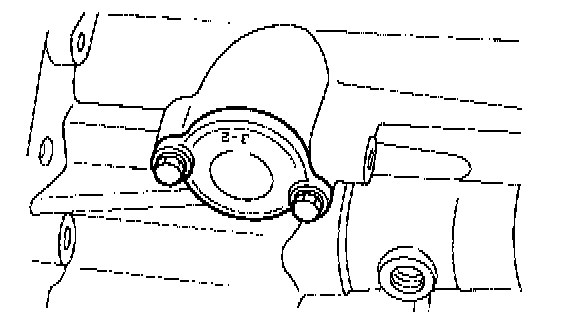

3. Remove the reverse check sleeve.

B: INSTALLATION





1. Install the reverse check sleeve.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4. 7 ft. lbs.)





2. Install ball, spring, washer and plug to transfer case.
Tightening torque: 10 Nm (1.0 kgf-m, 7.2 ft. lbs.)
3. Install the manual transmission assembly to vehicle.

C: DISASSEMBLY

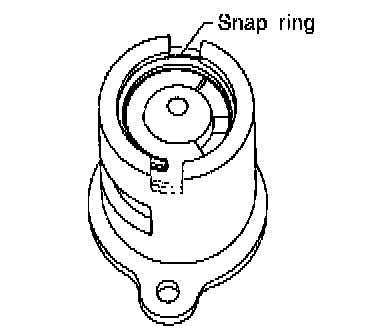

1. Using a standard screwdriver, remove snap ring.

NOTE: Replace snap ring with a new one if deformed or weakened.

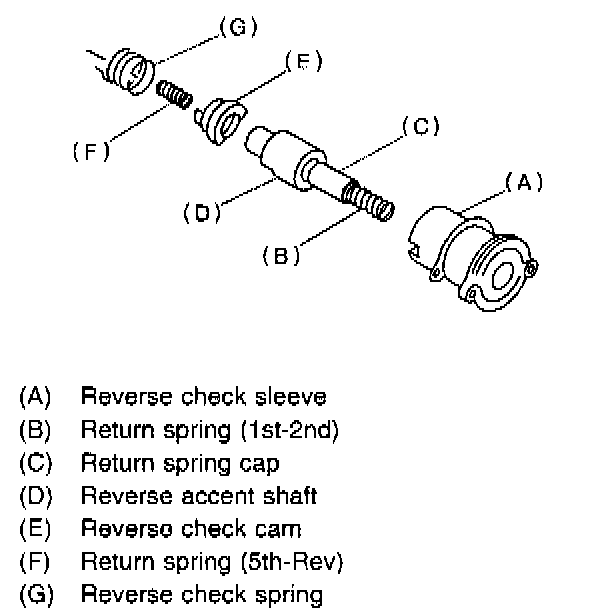

2. Remove reverse check plate, reverse check spring, reverse check cam, return spring (5th-Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).
3. Remove O-ring.

NOTE:
^ Reverse check sleeve assembly uses an O-ring which should not be scratched.
^ Be careful not to break adjustment shim placed between reverse check sleeve assembly and case.

D: ASSEMBLY





1. Install return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring and check spring onto reverse check sleeve.

NOTE: Be sure the bent section of reverse check spring is positioned in the groove in check cam.

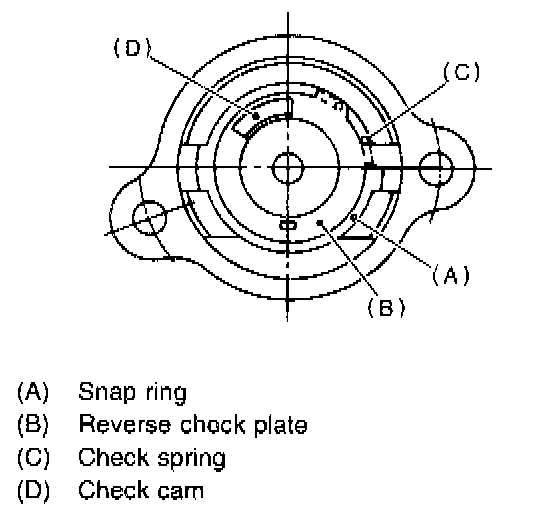

2. Hook the bent section of reverse check spring over reverse check plate.
3. Rotate cam so that the protrusion of reverse check cam is at the opening in plate.
4. With cam held in that position, install plate onto reverse check sleeve and hold with snap ring.
5. Position O-ring in groove in sleeve.

E: INSPECTION
^ Make sure the cutout section of reverse accent shaft is aligned with the opening in reverse check sleeve.
^ Spin cam by hand for smooth rotation.
^ Move cam and shaft all the way toward plate and release.





If cam does not return properly, replace reverse check spring; if shaft does not, check for scratches on the inner surface of sleeve. If sleeve is in good order, replace spring.

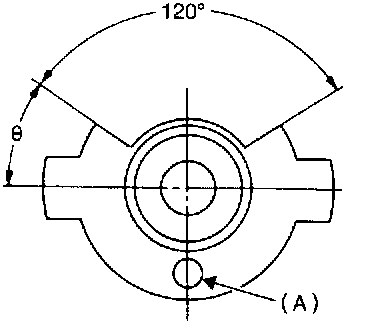

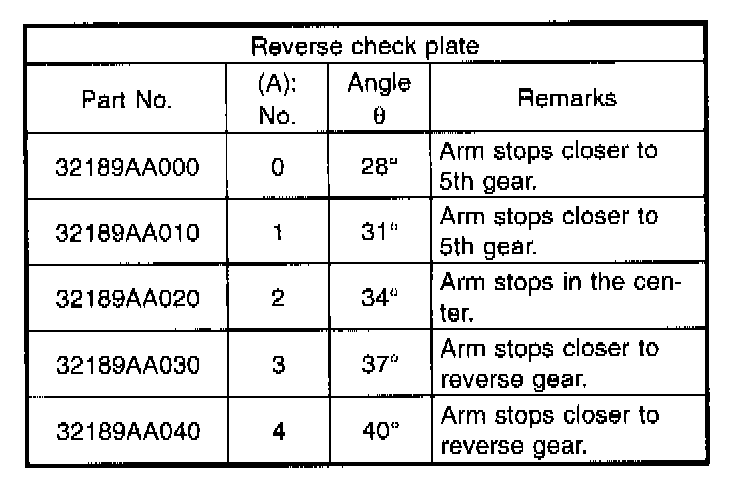

^ Select a suitable reverse accent shaft and reverse check plate.

F.: ADJUSTMENT
1. Shift shifter arm to "5th" and then to reverse to see if reverse check mechanism operates properly.








2. Also check to see if arm returns to neutral when released from the reverse position. if arm does not return properly, replace reverse check plate.
