Component Tests and General Diagnostics
C: INSPECTIONNOTE: Do not disassemble propeller shaft. Check the following and replace if necessary.
1. Tube surfaces for dents or cracks
2. Splines for deformation or abnormal wear
3. Joints for non-smooth operation or abnormal noise
4. Center bearing for free play, noise or nonsmooth operation
5. Oil seals for abnormal wear or damage
6. Center bearing for breakage Check the following points with propeller shaft installed in vehicle.
1. JOINTS AND CONNECTIONS
1. Remove center exhaust pipes.
2. Remove heat shield cover.
3. Check for any looseness of yoke flange connecting bolts and center bearing retaining bolts.
2. SPLINES AND BEARING LOCATIONS
1. Remove center exhaust pipes.
2. Remove rear exhaust pipe and muffler.
3. Remove heat shield cover.

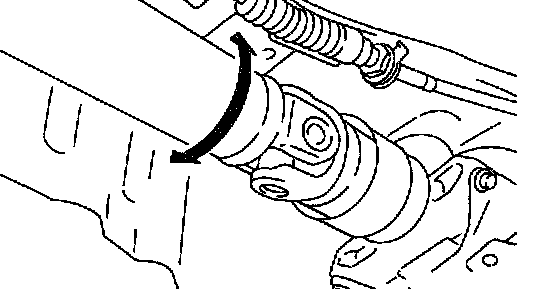

4. Turn propeller shaft by hand to see if abnormal free play exists at splines. Also move yokes to see if abnormal free play exists at spiders and bearings.
3. RUNOUT OF PROPELLER SHAFT
1. Remove center exhaust pipes.
2. Remove rear exhaust pipe and muffler.
3. Remove heat shield cover.
4. Turn rear wheels by hand to check for "runout" of propeller shaft.

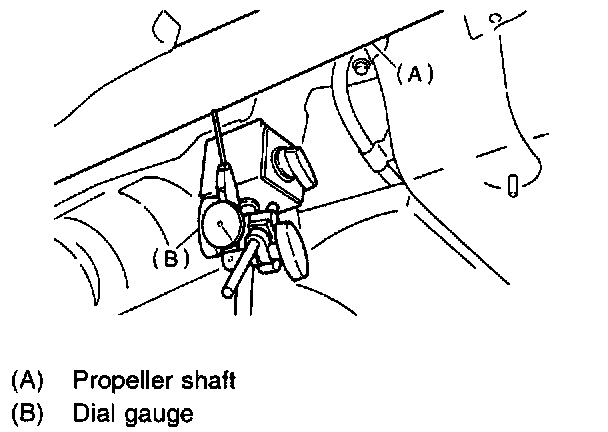

NOTE: Measure runout with a dial gauge at the center of front and rear propeller shaft tubes.
Runout: Limit 0.6 Nm (0.024 inch)
4. CENTER BEARING FREE PLAY
1. Remove front and center exhaust pipes.
2. Remove rear exhaust pipe and muffler.
3. Remove heat shield cover.

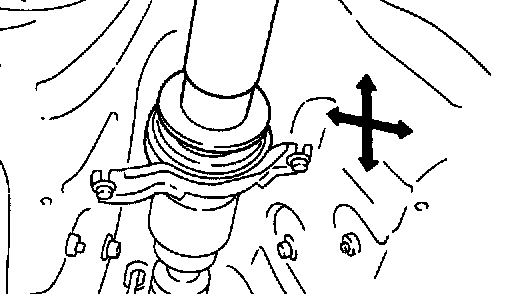

4. While holding propeller shaft near center bearing with your hand, move it up and down, and left and right to check for any abnormal bearing free play.
