Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Drive/Propeller Shaft >> Application and ID

Drive/Propeller Shaft: Application and ID

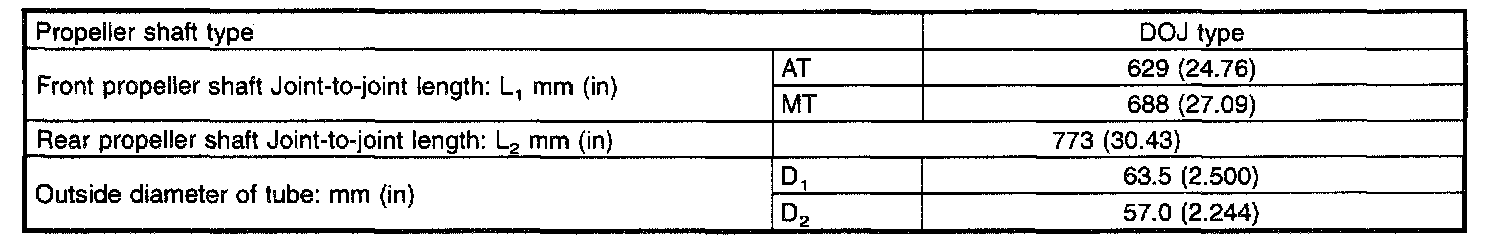

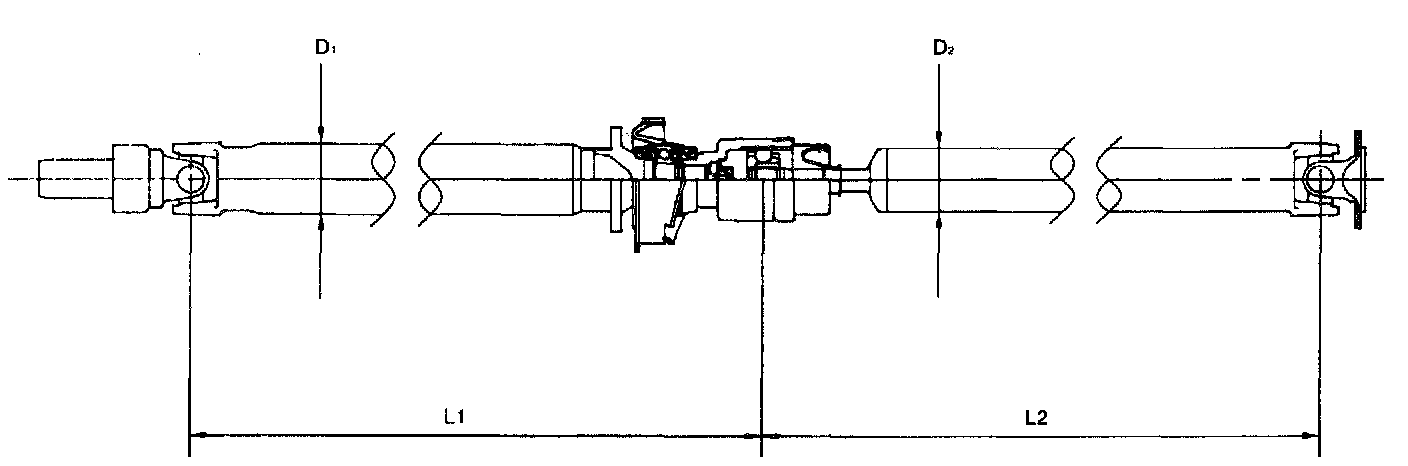

1. PROPELLER SHAFT





1 of 2





2 of 2
