Disassembly and Assembly

C: DISASSEMBLY

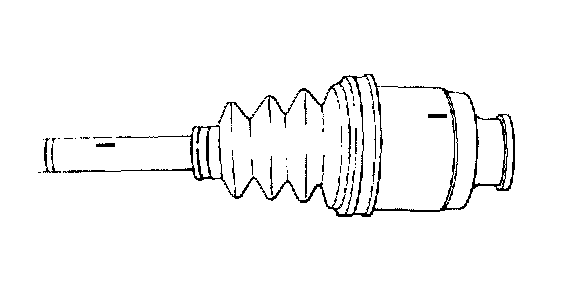

1. Place alignment marks on shaft and outer race.

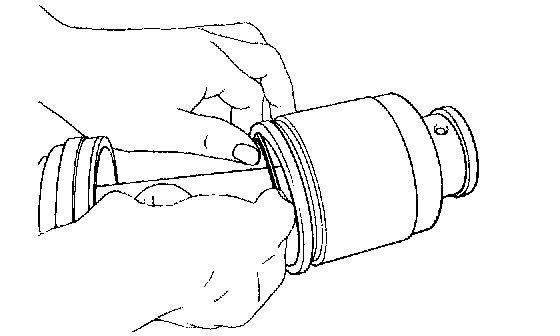

2. Remove SFJ boot band and boot.

CAUTION: Be careful not to damage boot.

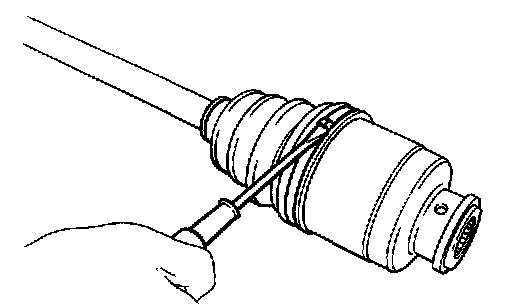

3. Remove circlip from SFJ outer race using screwdriver.
4. Remove SFJ outer race from shaft assembly.
5. Wipe off grease.

CAUTION: The grease is a special grease. Do not confuse with other greases.

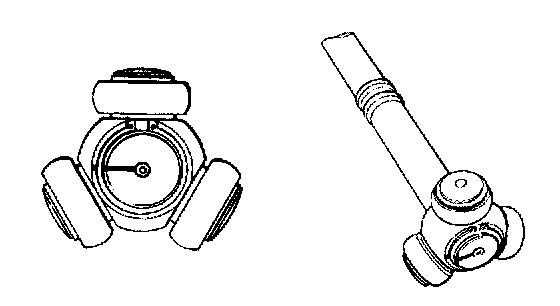

6. Place alignment mark on free ring and trunnion.
7. Remove free ring from trunnion.

CAUTION: Be careful with the free ring position.





8. Place alignment mark on trunnion and shaft.





9. Remove snap ring and trunnion.

CAUTION: Be sure to wrap shaft splines with vinyl tape to prevent boot from scratches.

10. Remove SFJ boot.
11. Place drive shaft in a vise between wooden blocks.

CAUTION: Do not place drive shaft directly in the vise; use wooden block.

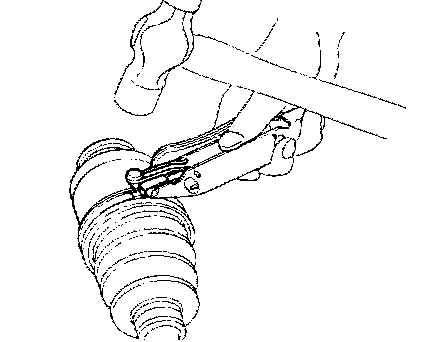

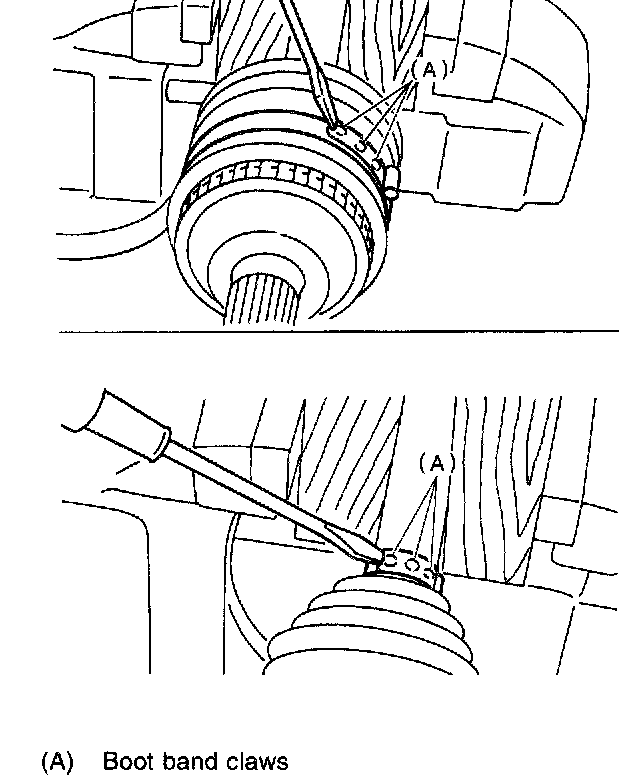

12. Raise boot band claws by means of screwdriver and hammer.





13. Cut and remove the boot.

CAUTION: The boot must be replaced with a new one whenever it is removed.

14. Thus, disassembly of axle is completed, but BJ cannot be disassembled.

D: ASSEMBLY

CAUTION: Use specified grease.

BJ side: NTG2218 (Part No. 28093AAOOO)
SFJ side: SSG6003 (Part No. 28093TAOOO)

1. Place BJ boot and small boot band on BJ side of shaft.

CAUTION: Be sure to wrap shaft splines with vinyl tape to prevent boot from scratches.

2. Place drive shaft in a vise.

CAUTION: Do not place drive shaft directly in the vise; use wooden blocks.

3. Apply a coat of specified grease [60 to 70 g (2.12 to 2.47 oz.)] to BJ.
4. Apply an even coat of specified grease [20 to 30 g (0.71 to 1.06 oz.)] to the entire inner surface of boot. Also apply grease to shaft.

NOTE: The inside of the larger end of BJ boot and the boot groove shall be cleaned so as to be free from grease and other substances.





5. Install boot projecting portion to BJ groove.

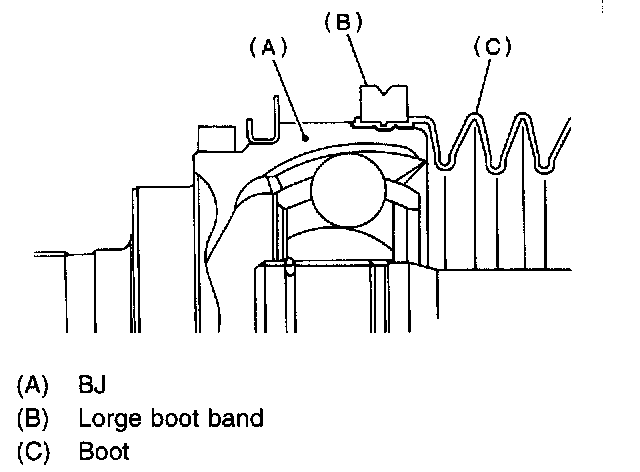

6. Set large boot band in place.





7. Install boot projecting portion to shaft groove.

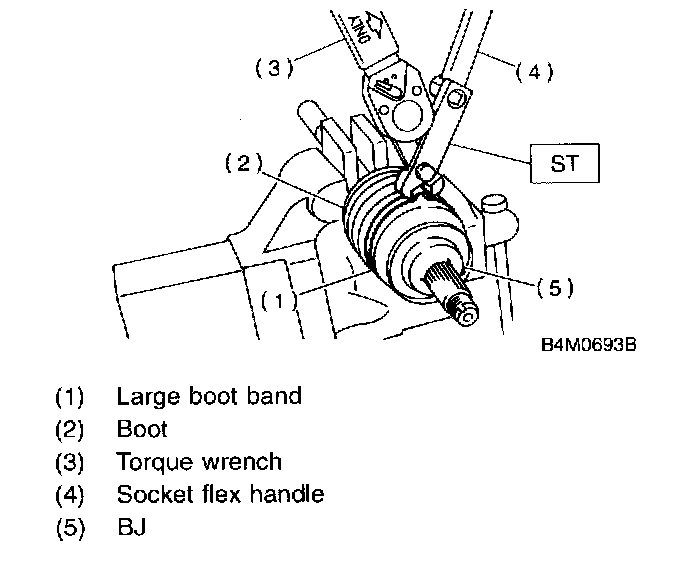

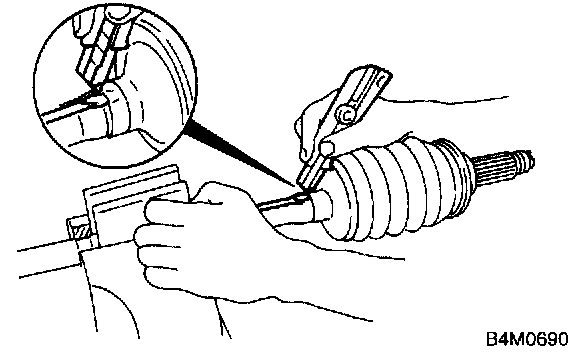

8. Tighten boot bands using ST, torque wrench and socket flex handle.
ST 28099ACOOO BOOT BAND PLIER
Tightening torque:
Large boot band 157 Nm (16.0 kgf-m, 116 ft. lbs.) or more
Small boot band 133 Nm (13.6 kgf-m, 98 ft. lbs.) or more
9. Place SFJ boot at the center of shaft.





10. Align alignment marks and install trunnion on shaft.

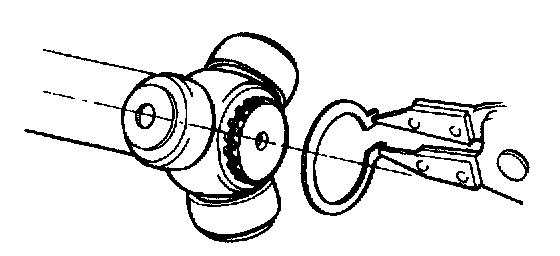

11. Install snap ring to shaft.

CAUTION: Confirm that the snap ring is completely fitted in the shaft groove.

12. Fill 100 to 110 g (3.53 to 3.88 oz.) of specified grease into the interior of SFJ outer race.
13. Apply a coat of specified grease to free ring and trunnion.

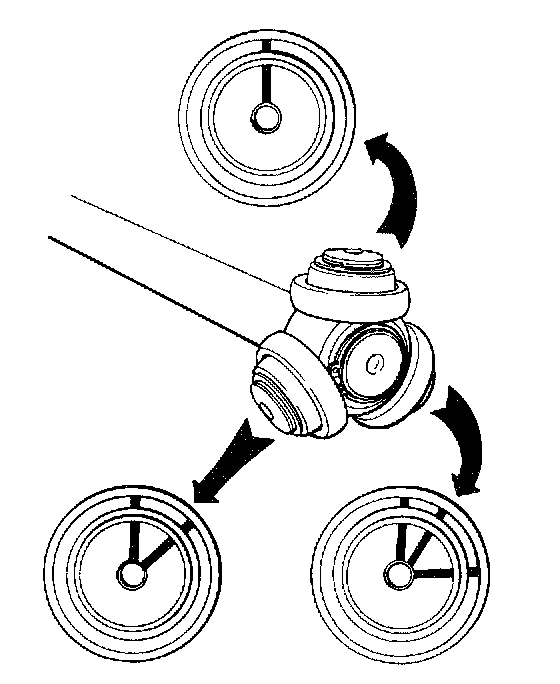

14. Align alignment marks on free ring and trunnion and install free ring.

CAUTION: Be careful with the free ring position.





15. Align alignment marks on shaft and outer race, and install outer race.
16. Install circlip in the groove on SFJ outer race.

CAUTION: Pull the shaft lightly and assure that the circlip is completely fitted in the groove.

17. Apply an even coat of the specified grease 30 to 40 g (1.06 to 1.41 oz.) to the entire inner surface of boot.
18. Install SFJ boot taking care not to twist it.

CAUTION:
^ The inside of the larger end of SFJ boot and the boot groove shall be cleaned so as to be free from grease and other substances.
^ When installing SFJ boot, position outer race of SFJ at center of its travel.

19. Put a band through the clip and wind twice in alignment with band groove of boot.

CAUTION: Use a new band.

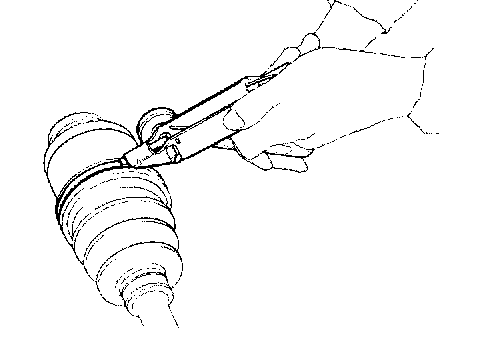

20. Pinch the end of band with pliers. Hold the clip and tighten securely.

NOTE: When tightening boot, exercise care so that the air within the boot is appropriate.





21. Tighten band by using ST.
ST 925091000 BAND TIGHTENING TOOL

NOTE: Tighten band until it cannot be moved by hand.





22. Tap on the clip with the punch provided at the end of ST.
ST 925091000 BAND TIGHTENING TOOL

CAUTION: Tap to an extent that the boot underneath is not damaged.

23. Cut off band with an allowance of about 10 mm (0.39 in) left from the clip and bend this allowance over the clip.

CAUTION: Be careful so that the end of the band is in close contact with clip.

24. Fix up boot on BJ in the same manner.

NOTE: Extend and retract SFJ to provide equal grease coating.
