Differential Mount: Service and Repair

A: REMOVAL
1. Disconnect ground terminal from battery.
2. Jack-up the vehicle.

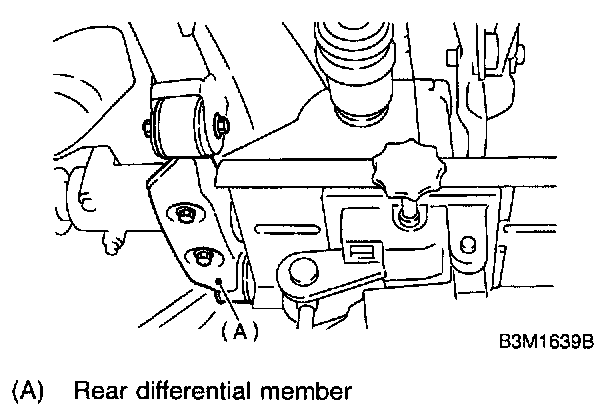

3. Using a transmission jack, support rear differential, and remove rear differential member.

B: INSTALLATION

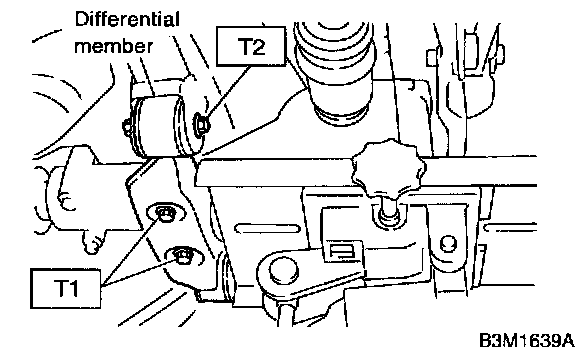

1. Install rear differential member.
Tightening torque:
T1: 65 Nm (6.6 kgf-m, 48 ft. lbs.)
T2: 110 Nm (11.2 kgf-m, 81 ft. lbs.)
