Symptom Related Diagnostic Procedures

A: INSPECTION

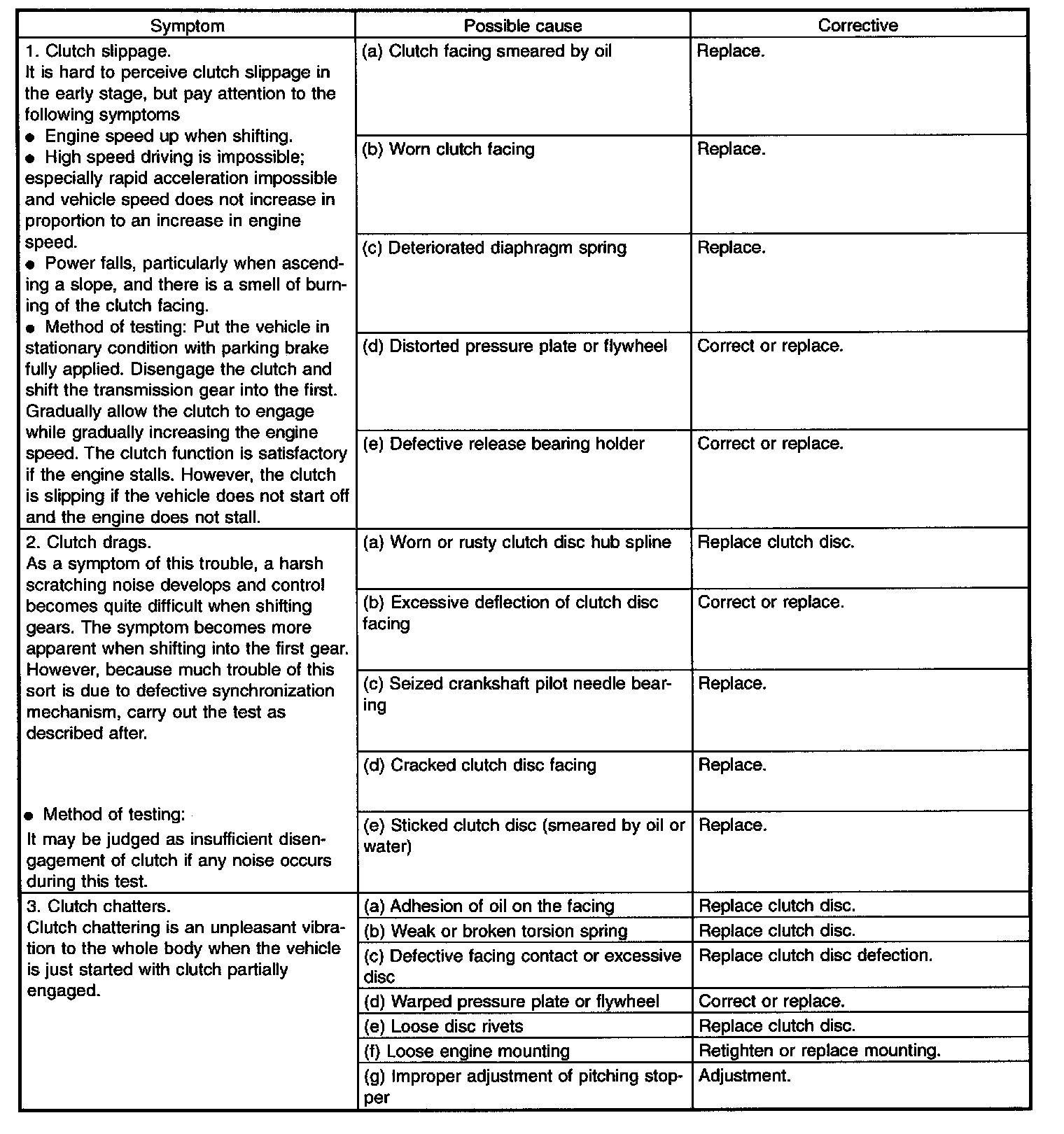

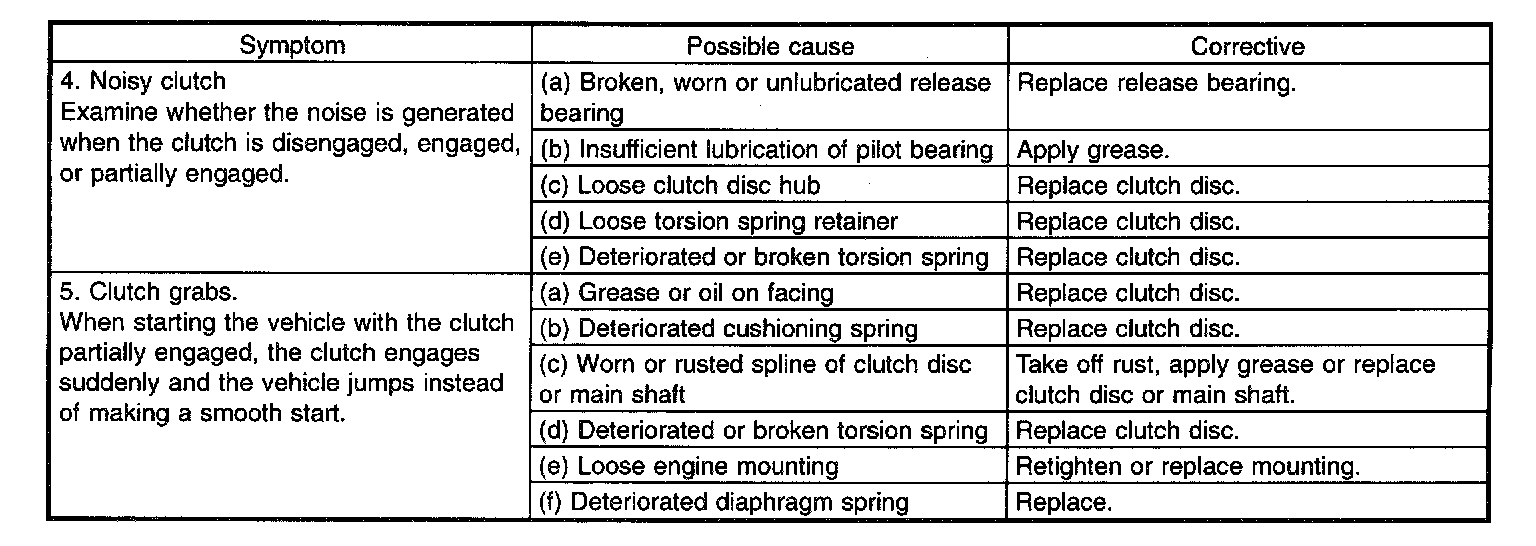

1. CLUTCH

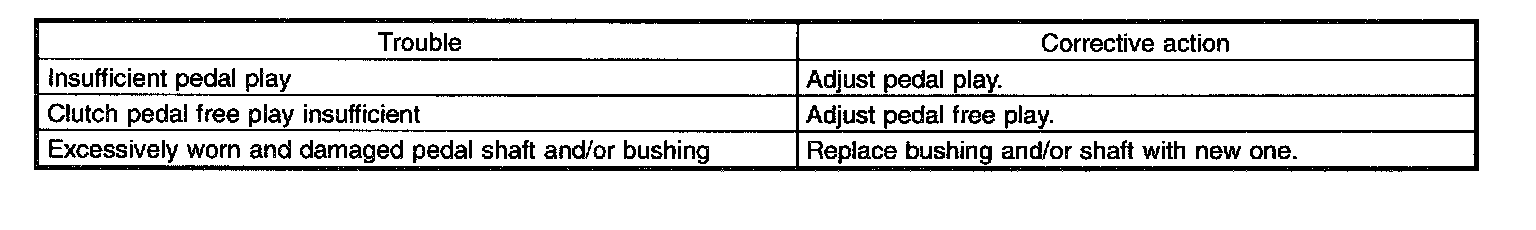

2. CLUTCH PEDAL

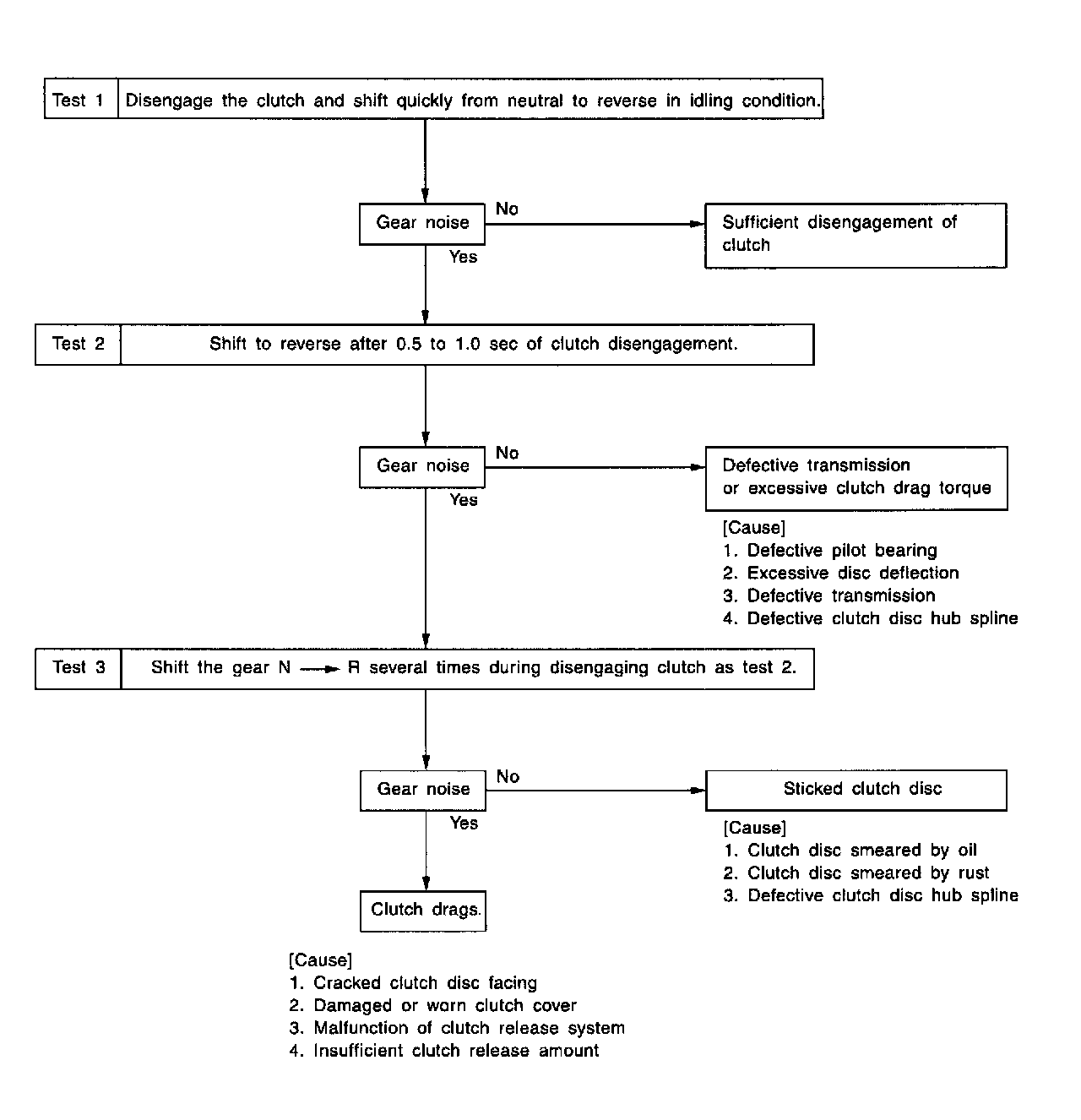

3. DIAGNOSTIC DIAGRAM OF CLUTCH DRAG
