Clutch Pedal Assembly: Testing and Inspection

E: INSPECTION
1. CLUTCH PEDAL

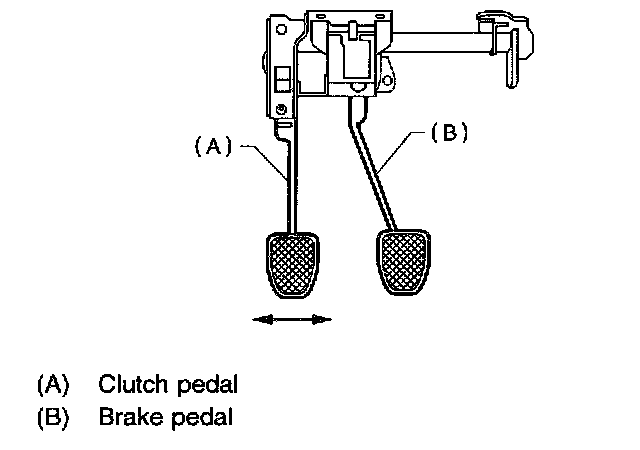

Move clutch pedal pads in the lateral direction with a force of approximately 10 N (1 kg, 2 lb.) to ensure pedal deflection is in specified range.

CAUTION: If excessive deflection is noted, replace bushings with new ones.

Deflection of clutch pedal: Service limit 5.0 mm (0.197 inch) or less
