Removal and Installation

A: REMOVAL
1. Remove steering column.
2. Disconnect connectors from stop light and clutch switches.

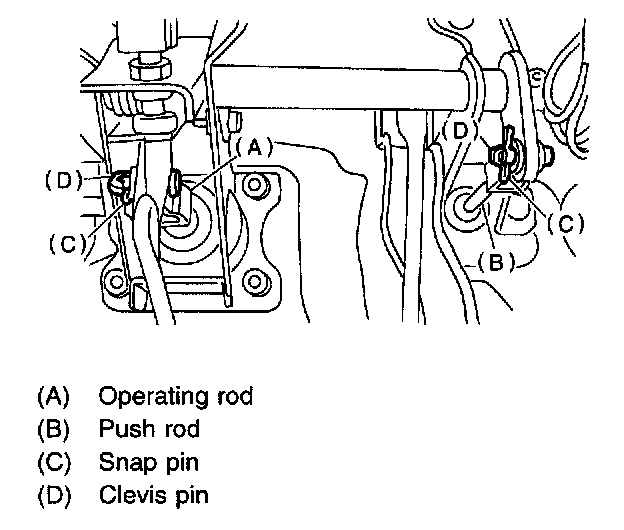

3. Remove snap pins which secure lever to push rod and operating rod.





4. Remove clevis pins which secure lever to push rod and operating rod.

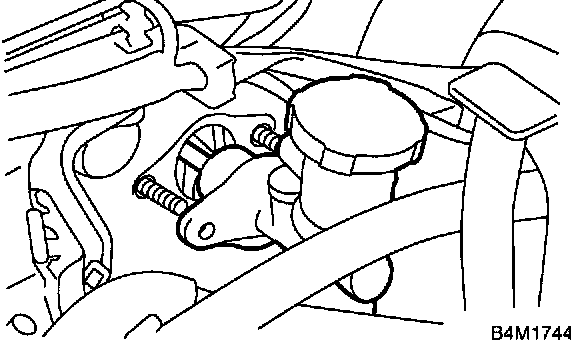

5. Remove nut which secures clutch master cylinder.
6. Remove bolts and nuts which secure brake and clutch pedals, and remove pedal assembly.

B: INSTALLATION
1. Install in the reverse order of removal.

CAUTION:
^ If cable clamp is damaged, replace it with a new one.
^ Never fail to cover outer cable end with boot.
^ Be careful not to kink accelerator cable.
^ Always use new clevis pins.

2. Adjustment of clutch pedal and adjustment after pedal installation.
