Disassembly and Assembly
C: DISASSEMBLY1. Remove clutch switches.

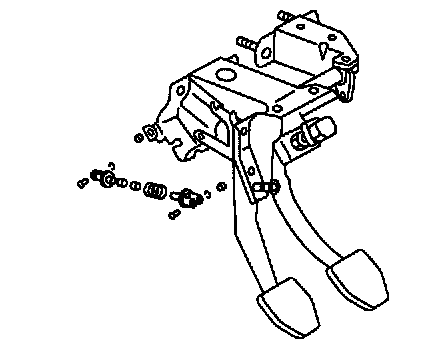

2. Remove clips, assist spring assembly and bush.
3. Remove spring pin and lever.

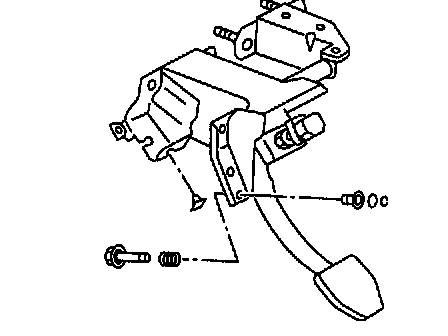

4. Remove clutch pedal and bushes.
5. Remove stopper, clip, O-ring, rod S, and then remove spring and bush S.
6. Remove stoppers from clutch pedal.
7. Remove clutch pedal pad.
D: ASSEMBLY
1. Attach stop light switch, etc. to pedal bracket temporarily.
2. Clean inside of bores of clutch pedal and brake pedal, apply grease, and set bushings into bores.

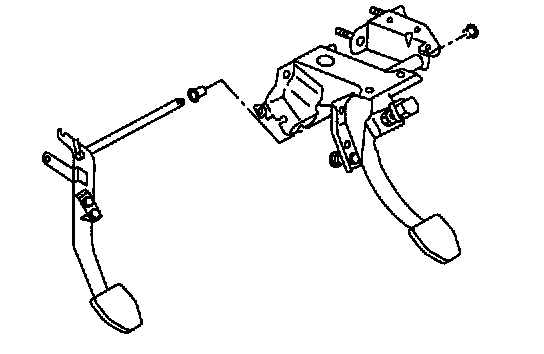

3. Align bores of pedal bracket, clutch pedal and brake pedal, attach brake pedal return spring and clutch pedal effort reducing spring (vehicle with hill holder), and then install pedal bolt.
NOTE: Clean up inside of bushings and apply grease before installing spacer.

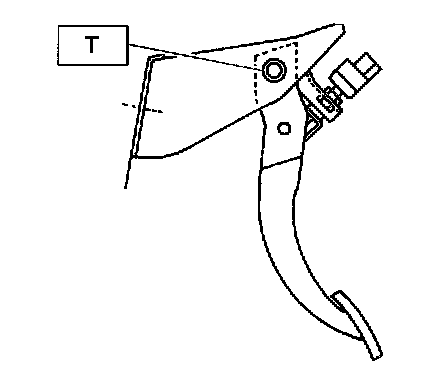

Tightening torque:
T: 29 Nm (3.0 kgf-m, 21.7 ft. lbs.)
