Hydraulic Hose: Service and Repair

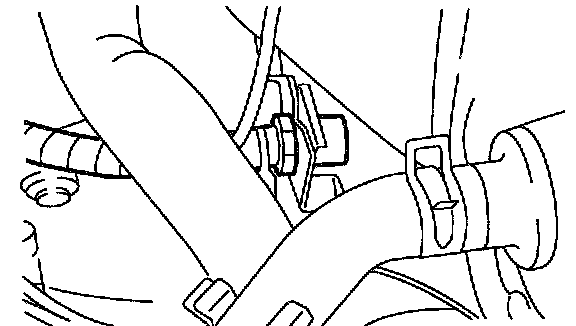

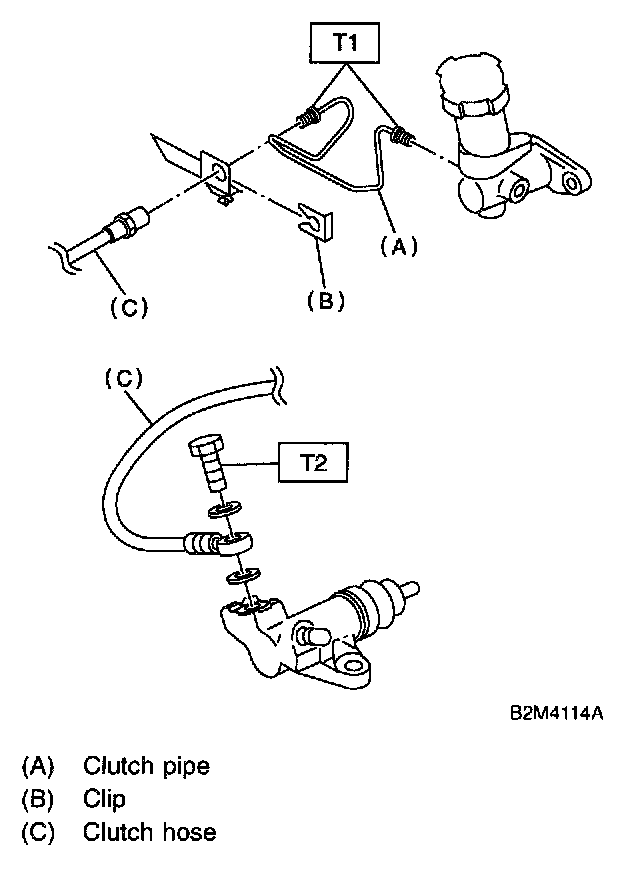

A: REMOVAL
1. Remove air chamber.
2. Drain clutch fluid.
3. Remove clutch pipe.





4. Unclip and remove hose from bracket.
5. Remove hose from operating cylinder.

B: INSTALLATION





Install in the reverse order of removal.

NOTE: Bleed clutch fluid.

Tightening torque:
T1: 15 Nm (1.5 kgf-m, 10.8 ft. lbs.)
T2: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
