Clutch Slave Cylinder: Service and Repair

A: REMOVAL
1. Remove air cleaner case and air intake duct.

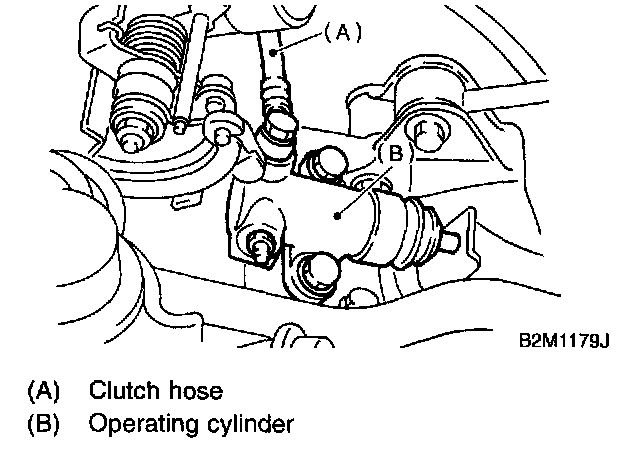

2. Remove clutch hose from operating cylinder.

CAUTION: Cover hose joint to prevent clutch fluid from flowing out.





3. Remove operating cylinder from transmission.

B: INSTALLATION





1. Install in the reverse order of removal.

NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder.

Tightening torque:
T7: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
T2: 37 Nm (3.8 kgf-m, 27.5 ft. lbs.)
2. After bleeding air from operating cylinder, ensure that clutch operates properly.
