Removal and Installation

A: REMOVAL
1. Thoroughly drain brake fluid from reservoir tank.

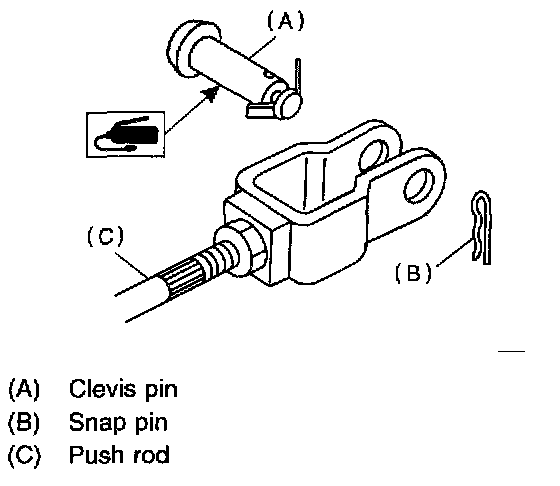

2. Remove snap pin, clevis pin and separate push rod of master cylinder from clutch pedal.
3. Remove air cleaner case and air intake duct.

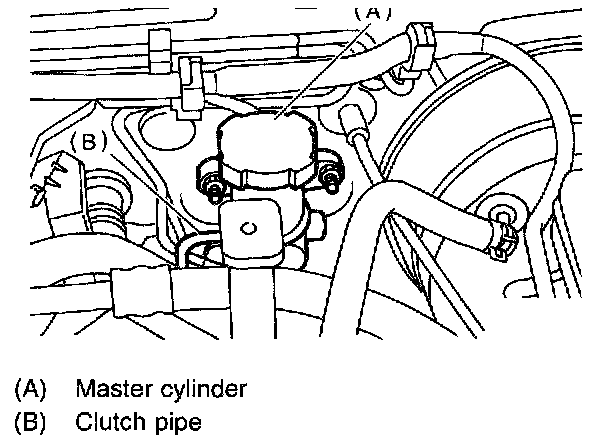

4. Remove clutch pipe from master cylinder.





5. Remove master cylinder with reservoir tank.

CAUTION: Be extremely careful not to spill brake fluid. Brake fluid spilt on the vehicle body will harm the paint surface; wipe it off quickly if spilt.

B: INSTALLATION





1. Install master cylinder to body, and install clutch pipe to master cylinder.

CAUTION: Check that pipe is routed properly.

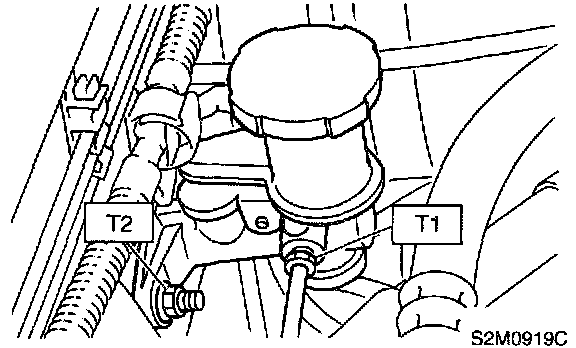

Tightening torque:
T1: 15 Nm f1.5 kgf-m, 10.8 ft. lbs.)
T2: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)

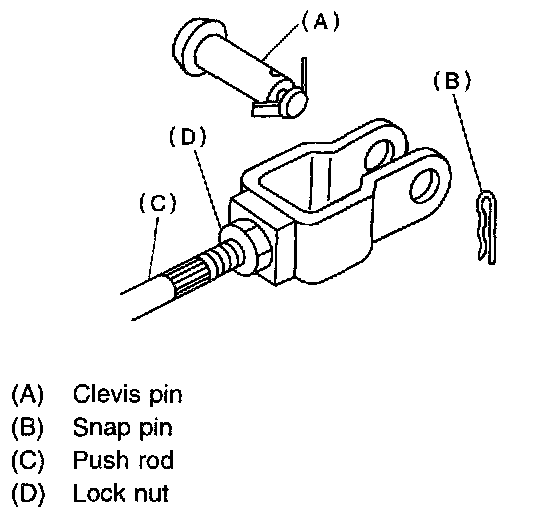

2. Connect push rod of master cylinder to clutch pedal, and install clevis pin and snap pin.

NOTE: Apply grease to clevis pin.

3. After bleeding air from system, ensure that clutch operates properly.
4. Install air cleaner case and air intake duct.
