Disassembly and Assembly

C: DISASSEMBLY

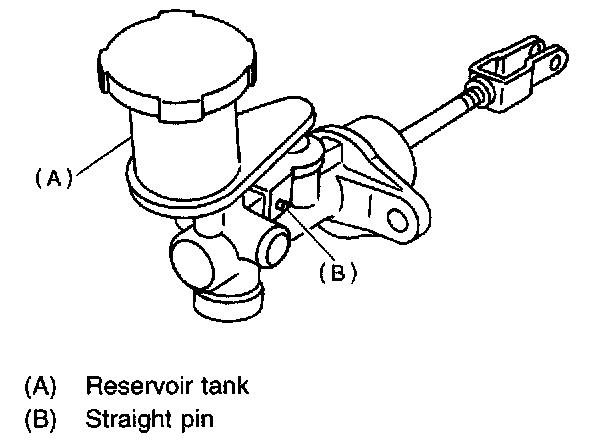

1. Remove straight pin and reservoir tank.

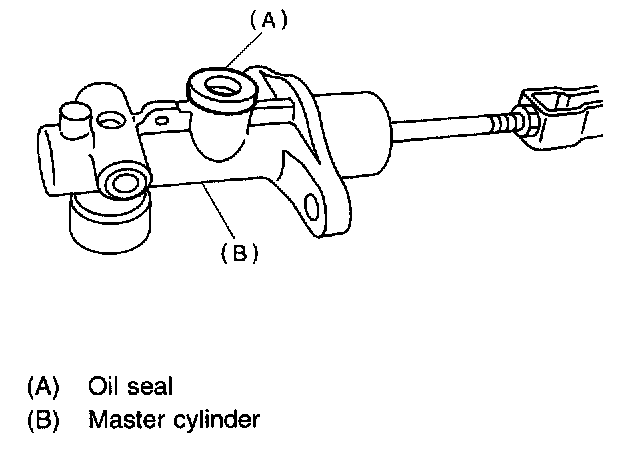

2. Remove oil seal.

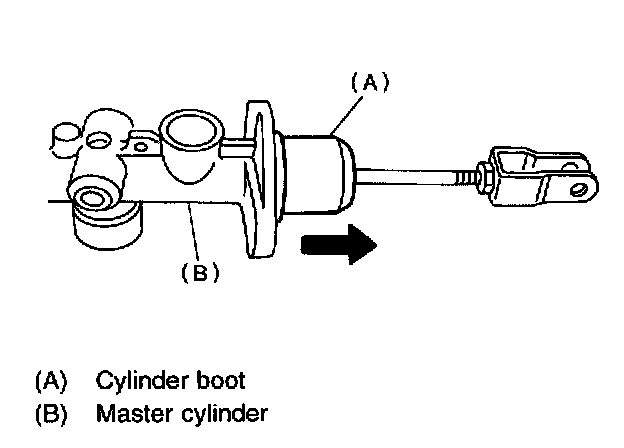

3. Move the cylinder boot backward.
4. Remove snap ring.

CAUTION: Be careful when removing the snap ring to prevent the rod, washer, piston and return spring from flying out.

D: ASSEMBLY

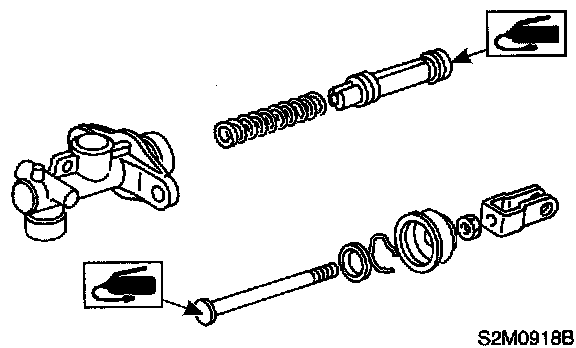

1. Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
Grease: SILICONE GREASE G40M (Part No. 004404003)
2. To assemble the master cylinder, reverse the sequence of disassembly procedure.
