Disassembly and Assembly

C: DISASSEMBLY
1. Remove four washers and then detach rubber boot.

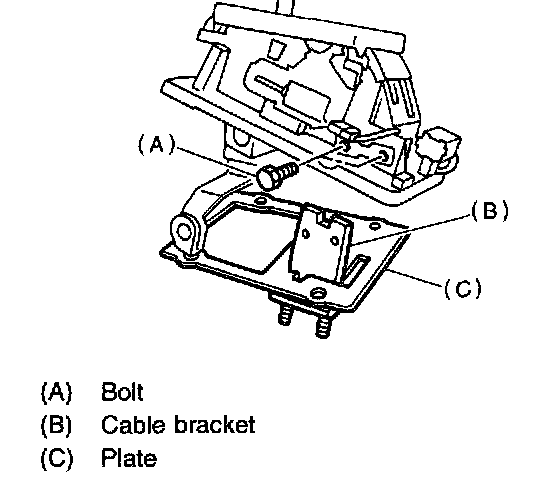

2. Remove bolts and then remove cable bracket and plate.
3. Twist the select lever grip and then remove select lever grip.

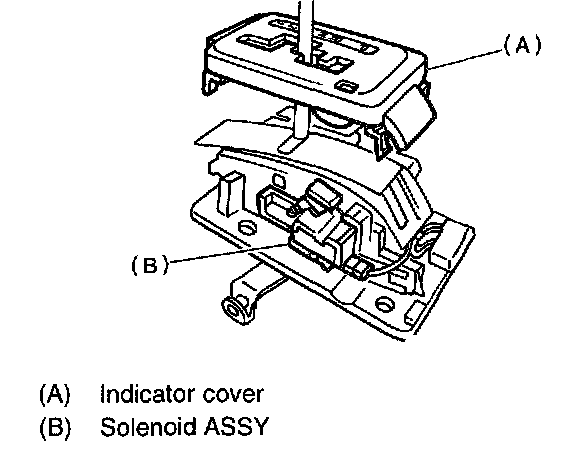

4. Detach indicator cover.





5. Disconnect connector and then remove solenoid assembly.

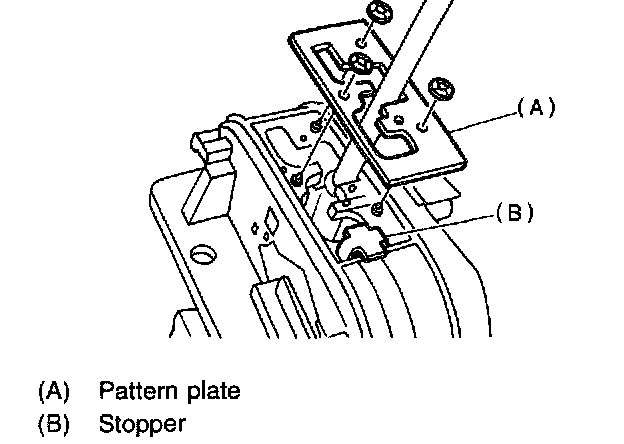

6. Remove pattern plate.





7. Remove stopper.

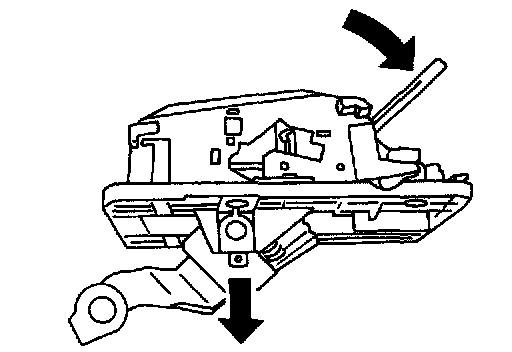

8. Tilt lever forward and pull down to separate it from frame.

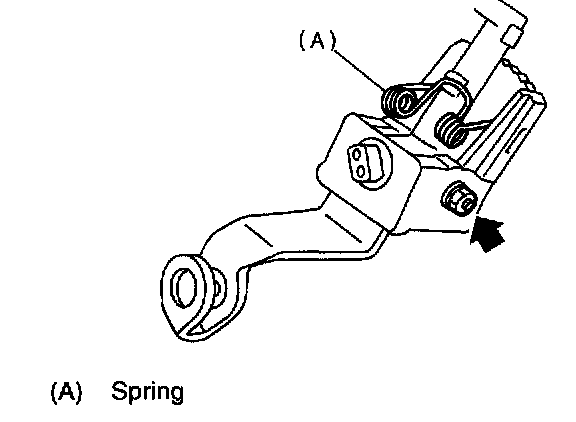

9. Remove spring.

CAUTION: Wear goggles. Do not allow spring to fly out during removal.





10. Remove bolt and then disconnect lever upper and lever lower.

D: ASSEMBLY
1. Clean all parts before assembly.
2. Apply grease [MULITEMP AC-D or equivalent] to each parts.
3. Assembly is in the reverse order of disassembly.
4. After completion of fitting, transfer selector lever to range "P" - "1", then check whether the indicator and selector lever agree, whether operating force is.
