Select Lever Shift Lock Cannot Be Released
Select Lever Shift Lock Cannot Be Released
3. SELECT LEVER SHIFT LOCK CANNOT BE RELEASED

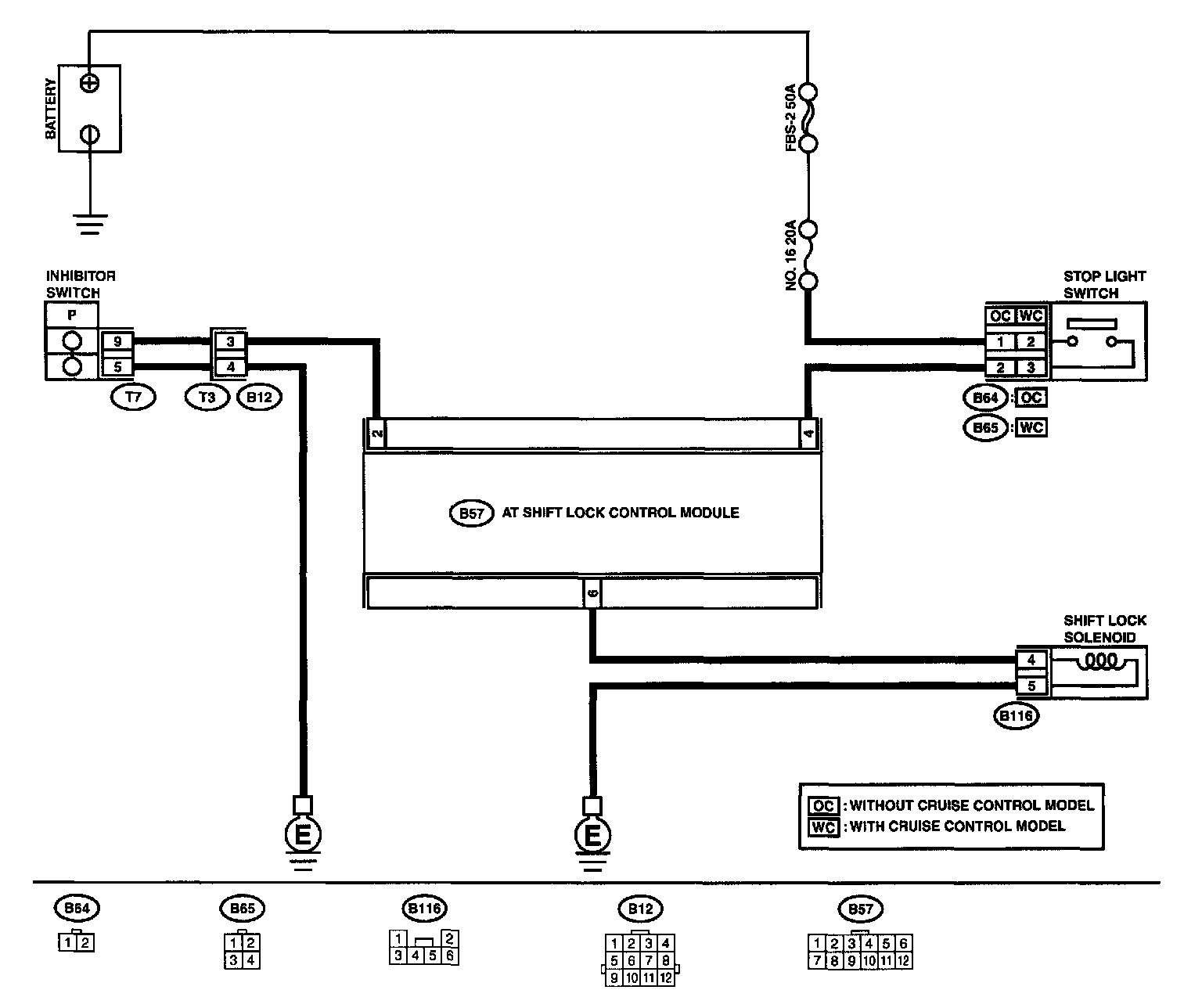

WIRING DIAGRAM
DIAGNOSTIC PROCEDURE
No.1 - 8

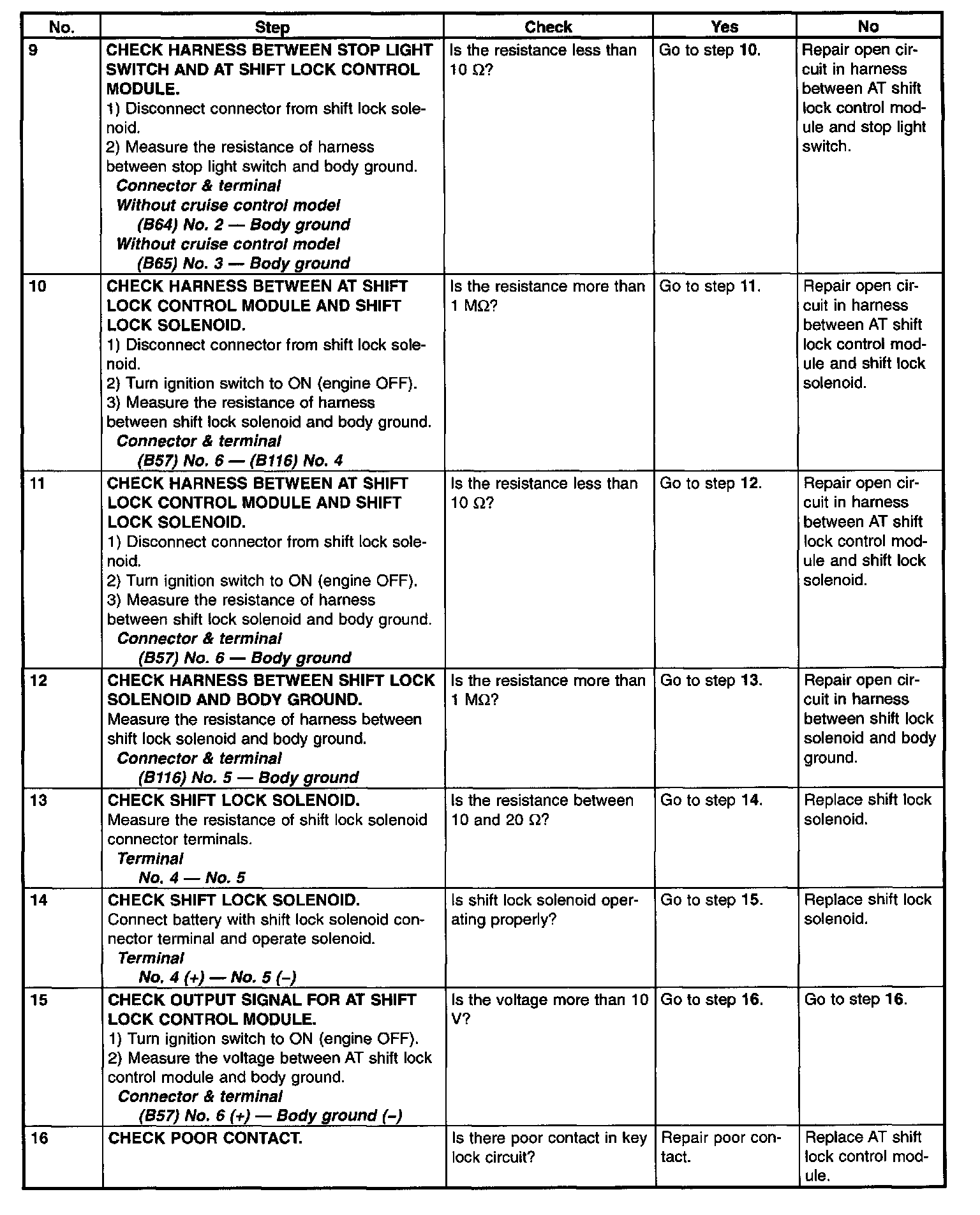

No.9 - 16
