Select Lever Cannot Be Shift Locked

2. SELECT LEVER CANNOT BE SHIFT LOCKED

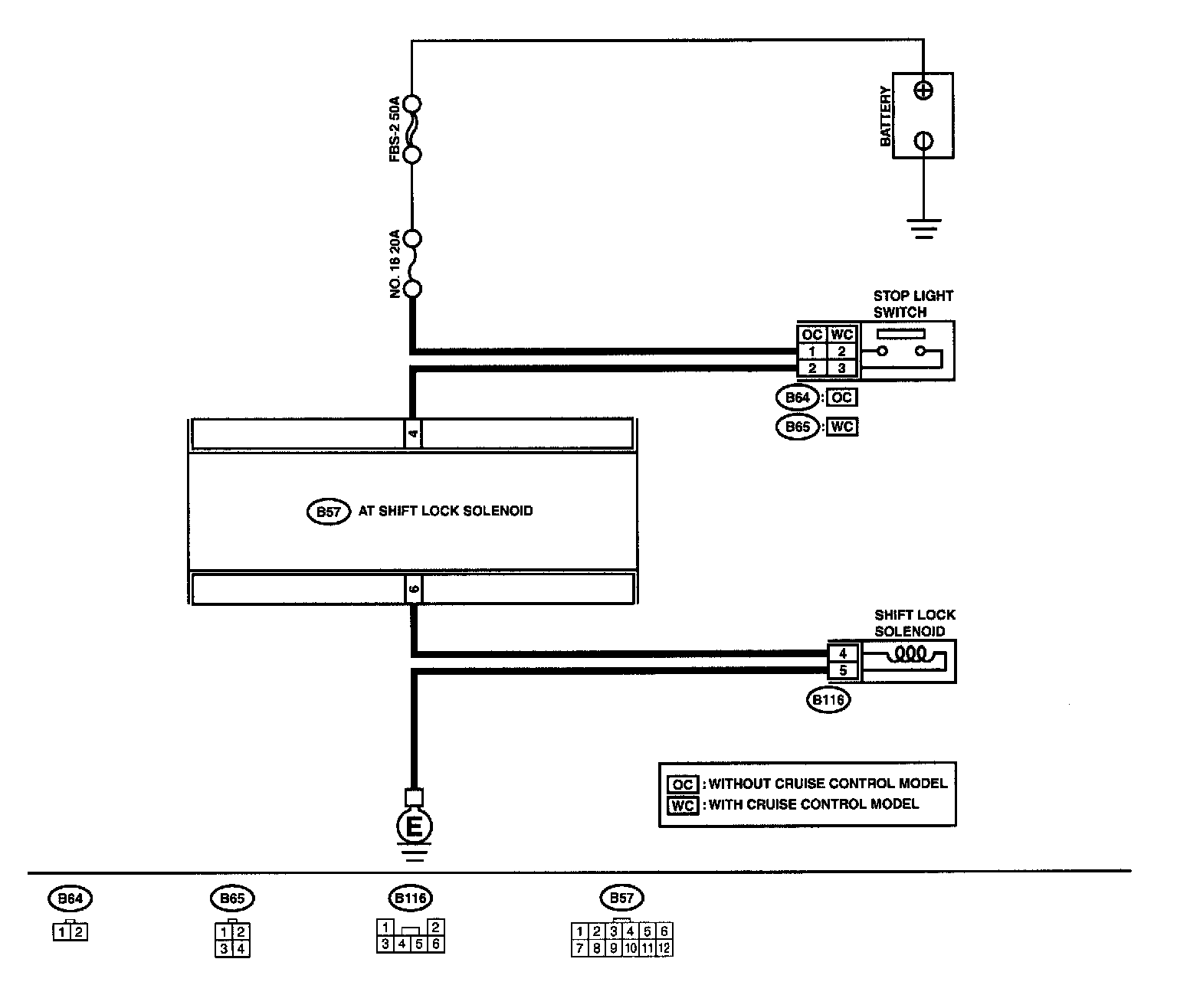

WIRING DIAGRAM

DIAGNOSTIC PROCEDURE

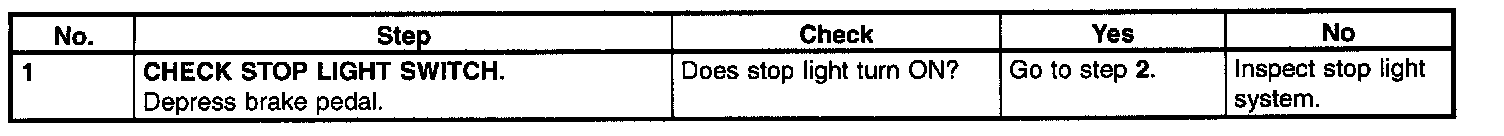

No.1

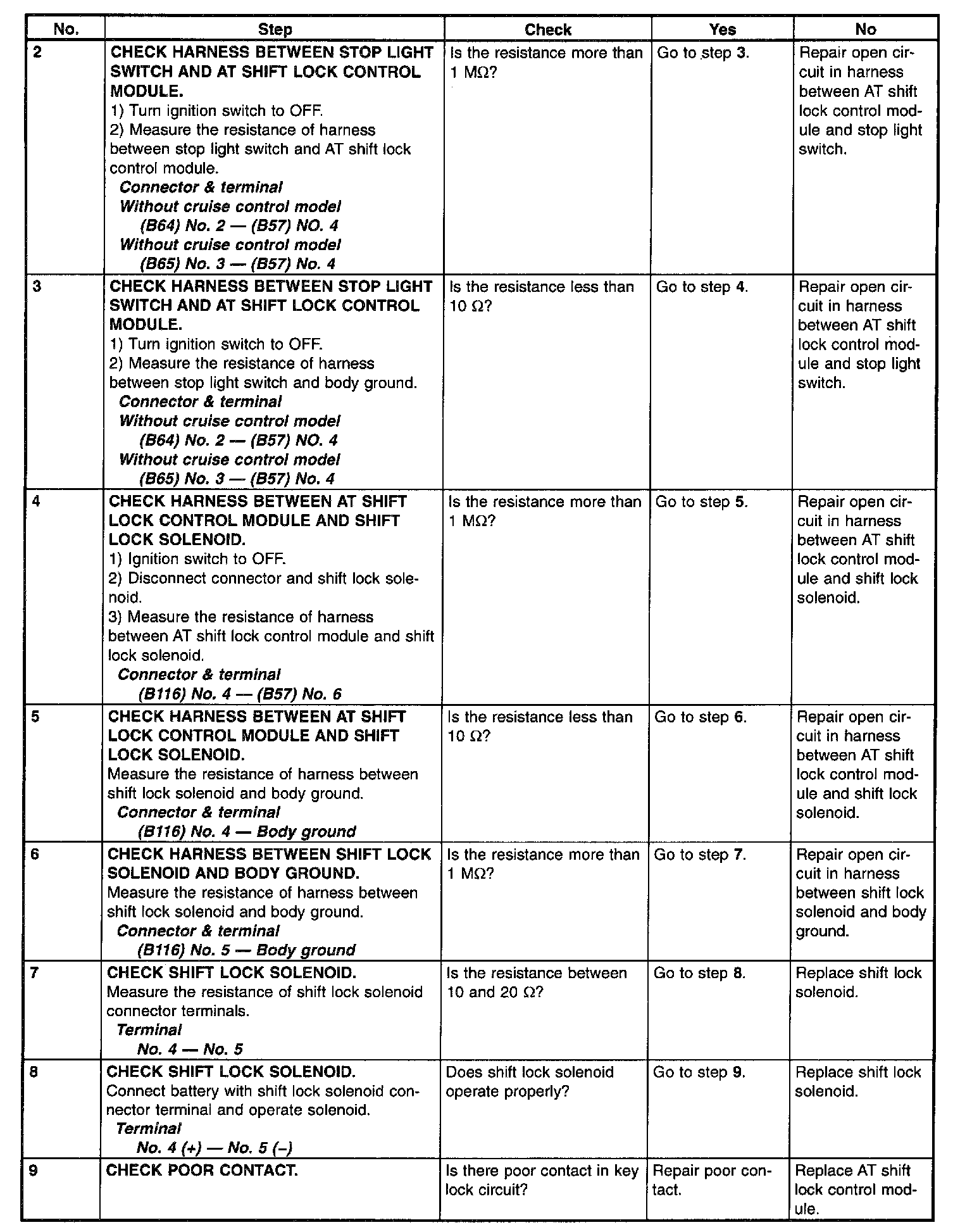

No.2 - 9
